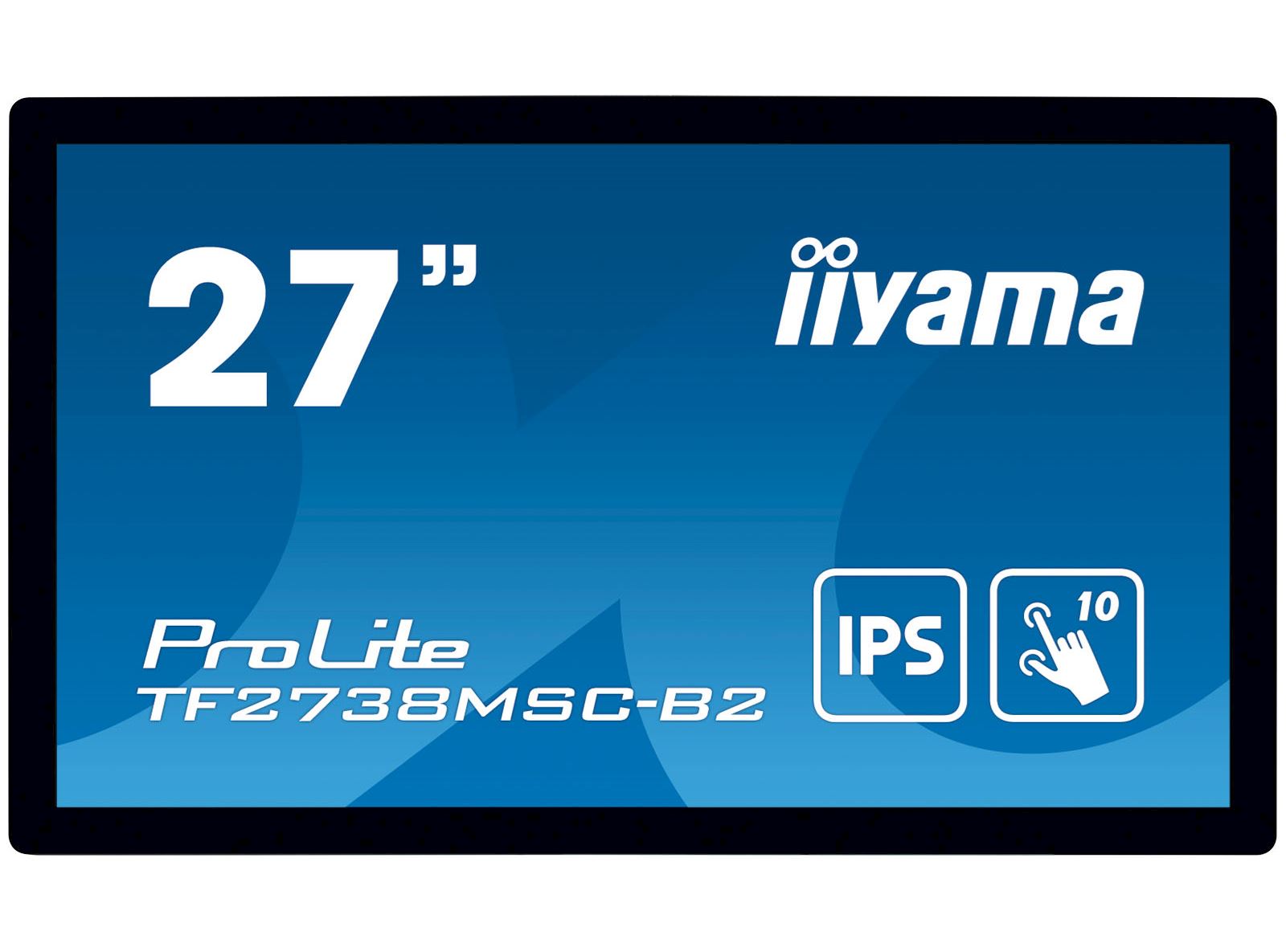

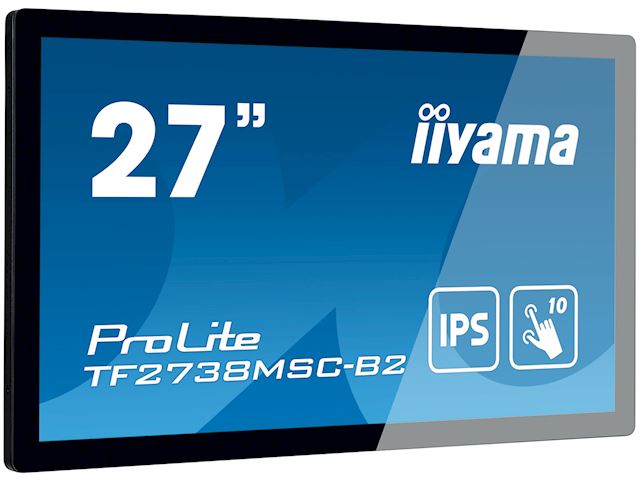

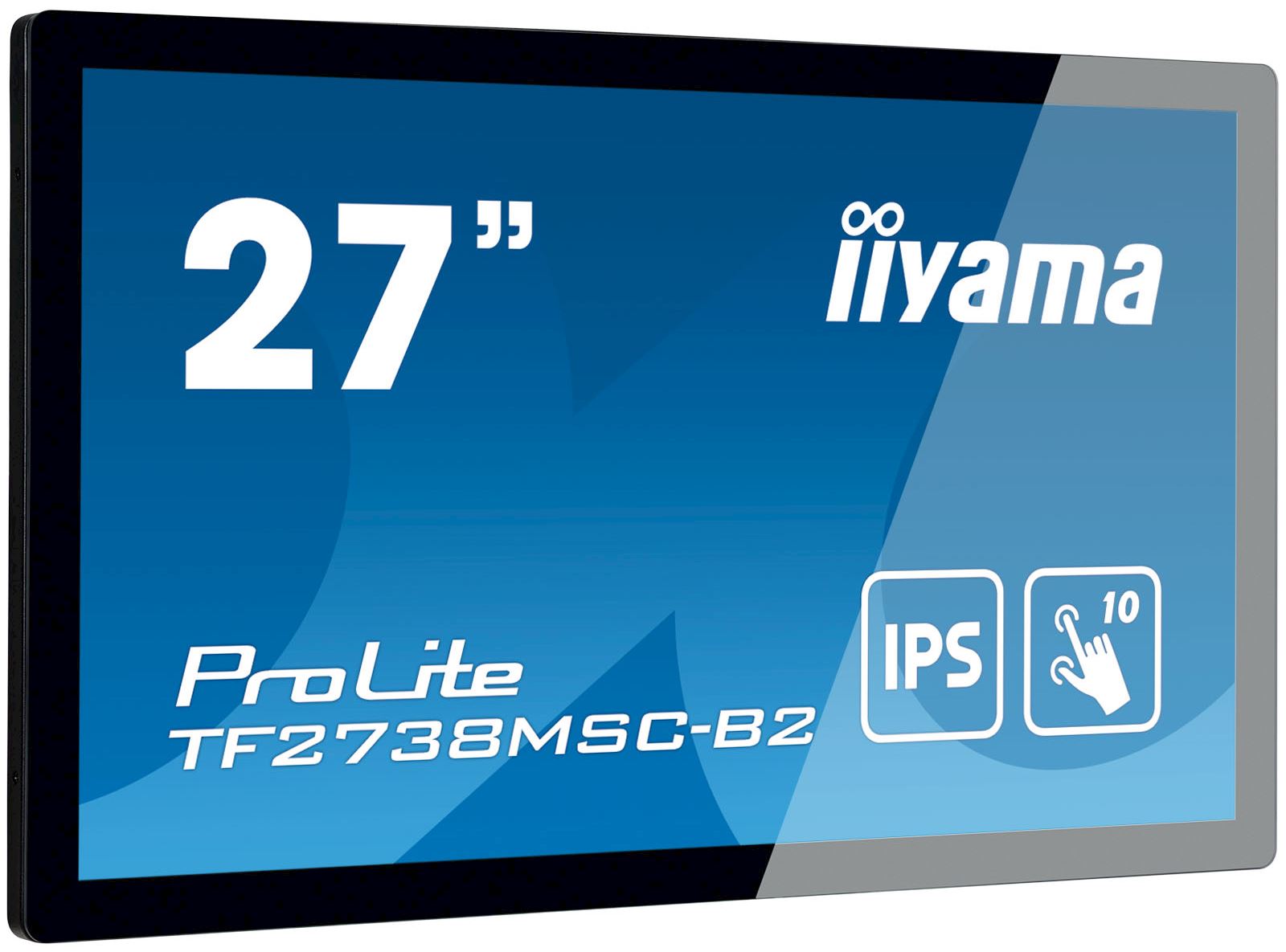

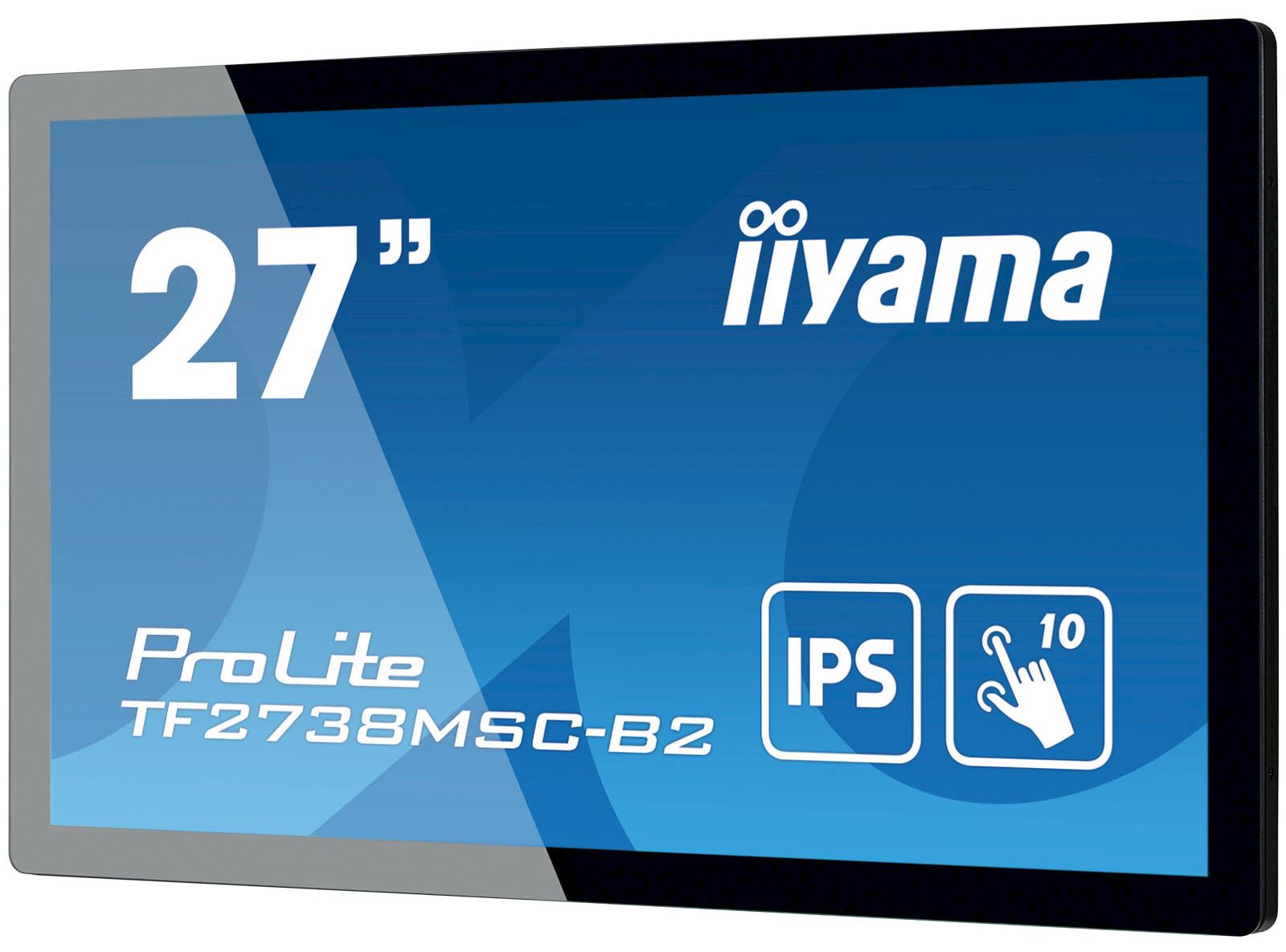

iiyama ProLite monitor TF2738MSC-B2 27" Black, IPS, Full HD, Projective Capacitive 10pt touch, HDMI, Display Port

£421.30 exc. VAT
£505.56 inc. VAT

Brand: iiyama

Manufacturer Code: TF2738MSC-B2

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

27” 10pt open frame touch monitor with edge-to-edge glass

With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite TF2738MSC-B2 delivers seamless and accurate touch response. Featuring IPS LED LCD Screen technology, it offers exceptional colour performance and wide viewing angles. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. In addition, the screen comes with an IPX1 rating, making it water resistant from the front. Equipped with speakers and triple digital input (DVI, HDMI and DisplayPort). The ProLite TF2738MSC-B2 is an ideal screen for kiosk integrators and a perfect solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations.

Technical Information

DISPLAY CHARACTERISTICS

Design Open Frame
Diagonal 27", 68.6cm
Panel IPS LED
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16:9
Brightness 500 cd/m² typical
Brightness 425 cd/m² with touch
Static contrast 1000:1 typical
Light transmittance 85%
Advanced contrast 12M:1
Response time 5ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln 8bit (6bit + Hi-FRC)
Horizontal Sync 30 - 80KHz
Vertical Sync 55 - 75Hz
Viewable area W x H 597.6 x 336.2mm, 23.5 x 13.2"
Pixel pitch 0.311mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method capacitive stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

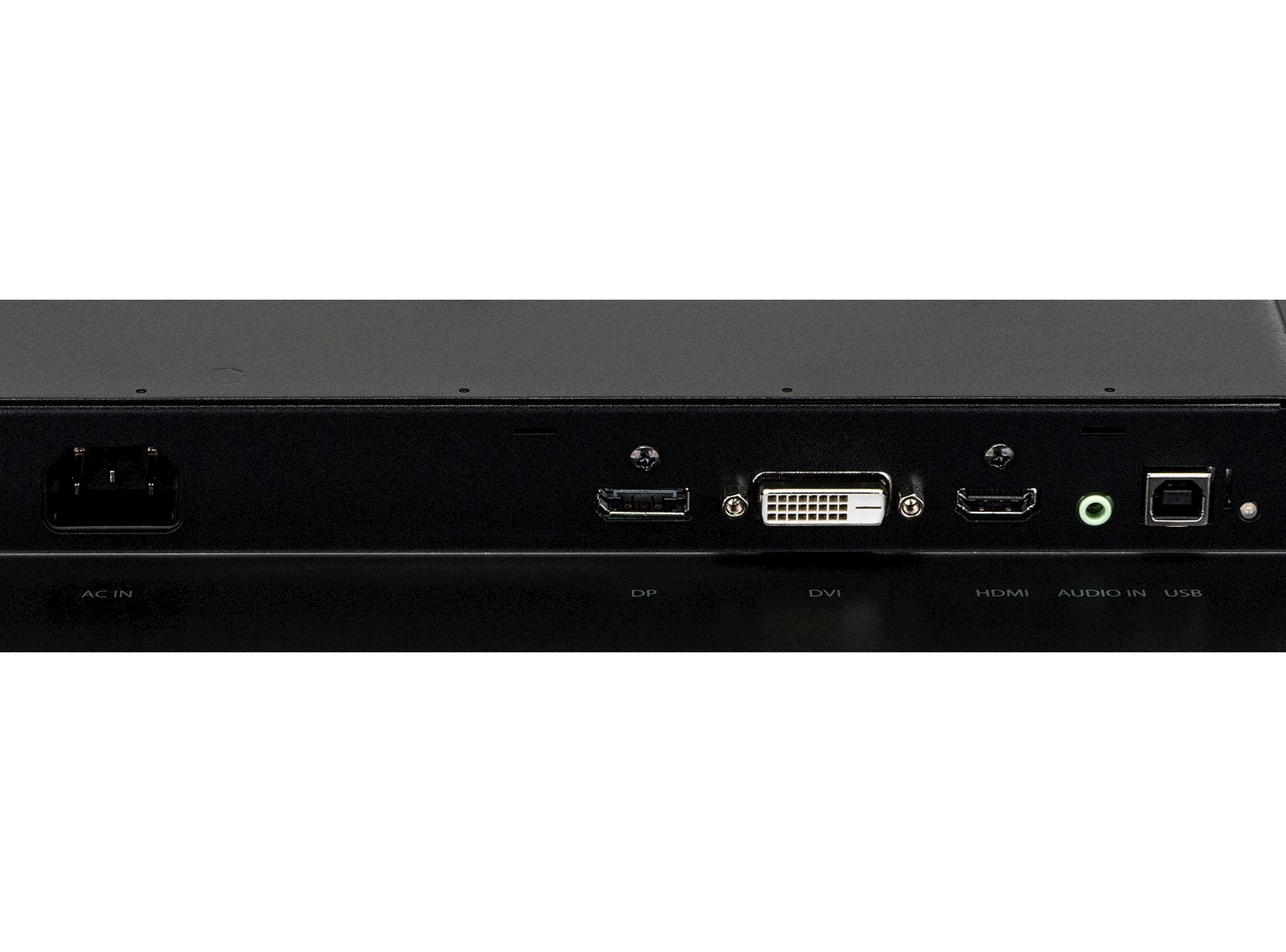

INTERFACES / CONNECTORS / CONTROLS

Digital signal input DVI x1
HDMI x1
DisplayPort x1
Audio output Speakers 2 x 3W
HDCP yes

FEATURES

Max. non-stop operating time

16/7

Glass hardness 6H
Glass thickness 3.6mm
60950 Ball drop test yes
Water and dust protection IP1X (front)
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, CN, RU, JP, NL, PL
Control buttons Menu, Scroll up/ Audio, Scroll down/ i-Style colour, Select/ Input select, Power
User controls picture adjust (contrast, brightness, adv. contrast, ECO mode, OD) input select, audio adjust (volume, mute, audio input) colour adjust (cool, normal, warm, user colour, i-Style colour) information, manual image adjust (scharpness, video mode adjust, blue light reducer, X-res technoloy) setup menu (language select, OSD position, OSD time out, OSD background, opening logo, LED) memory recall
Blue light reducer yes
Plug&Play DDC2B

MECHANICAL

Orientation landscape, portrait, face-up
Fanless design yes

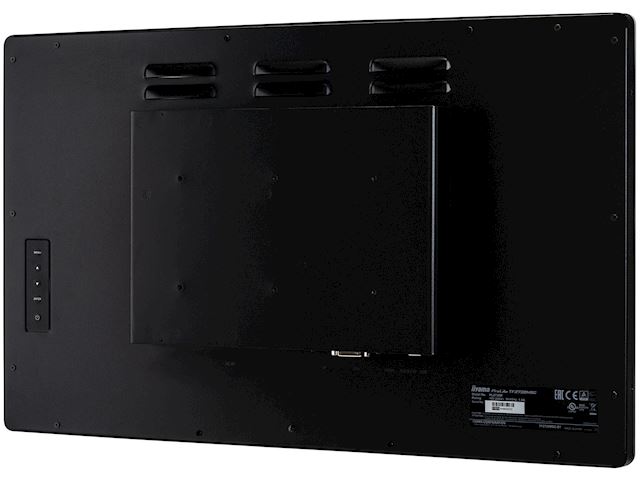

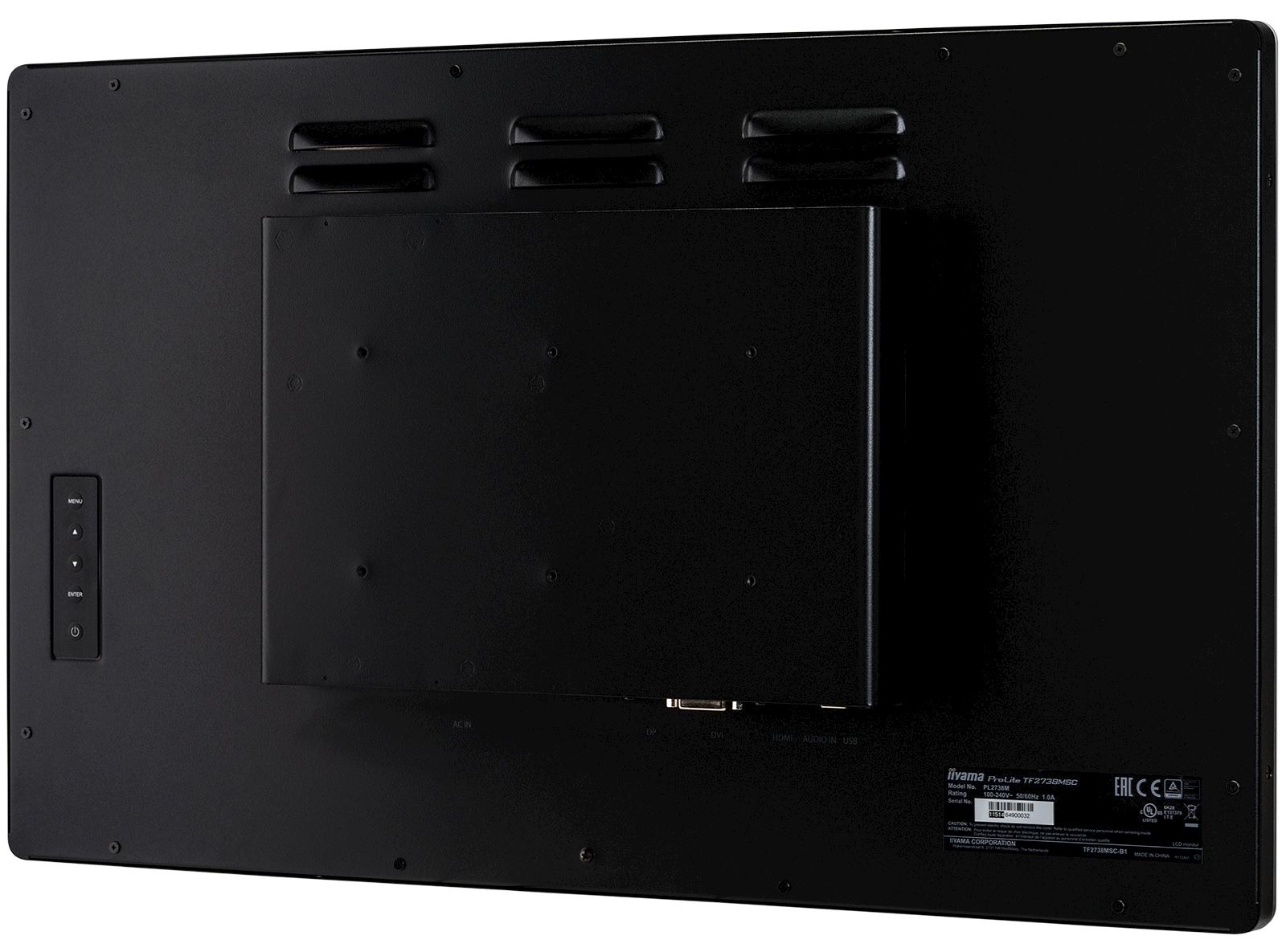

VESA mounting 100 x 100mm, 200 x 100mm

ACCESSORIES INCLUDED

Cables power, USB, HDMI, mDP - DP, DP
Guides quick start guide, safety guide

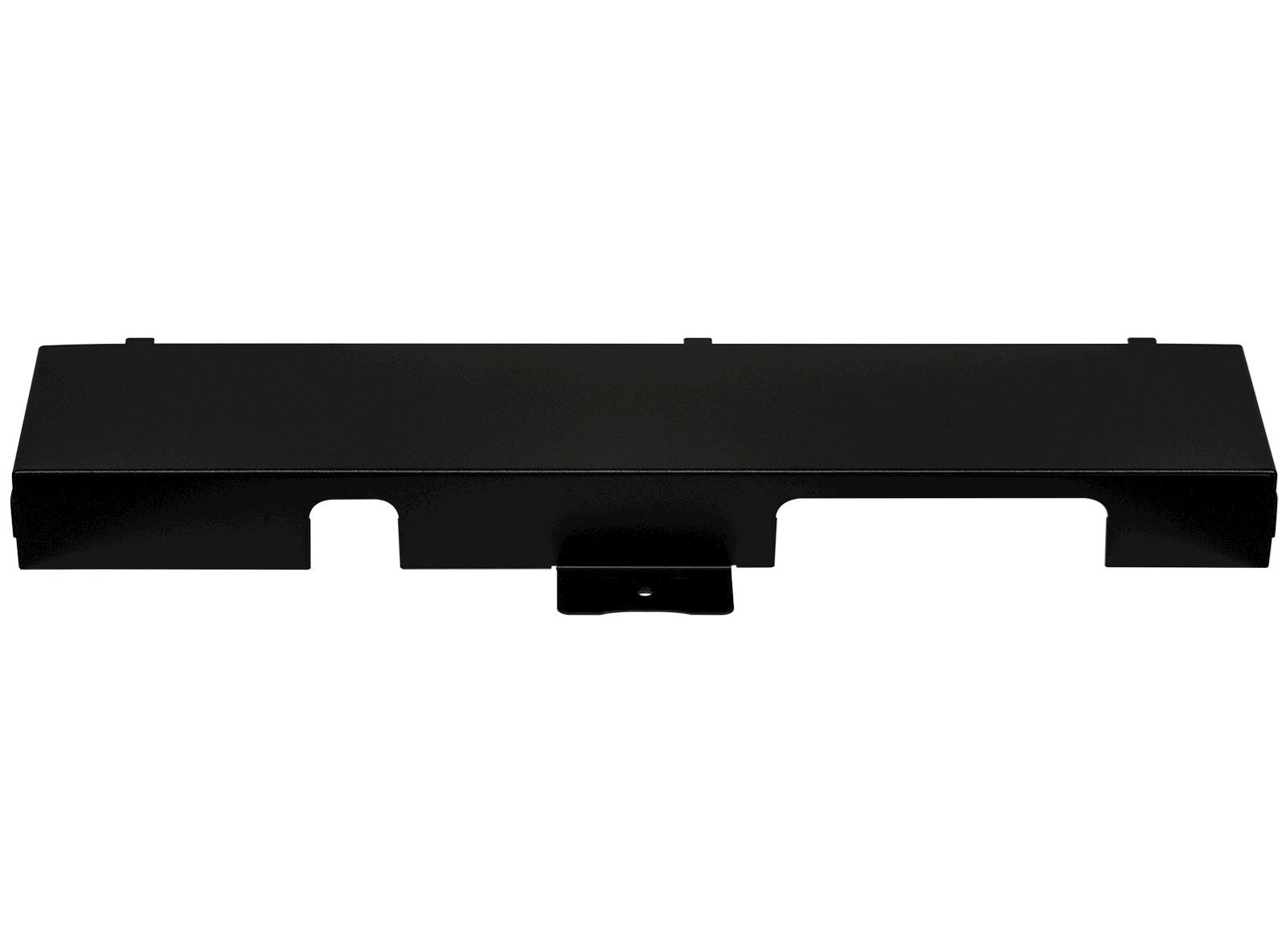

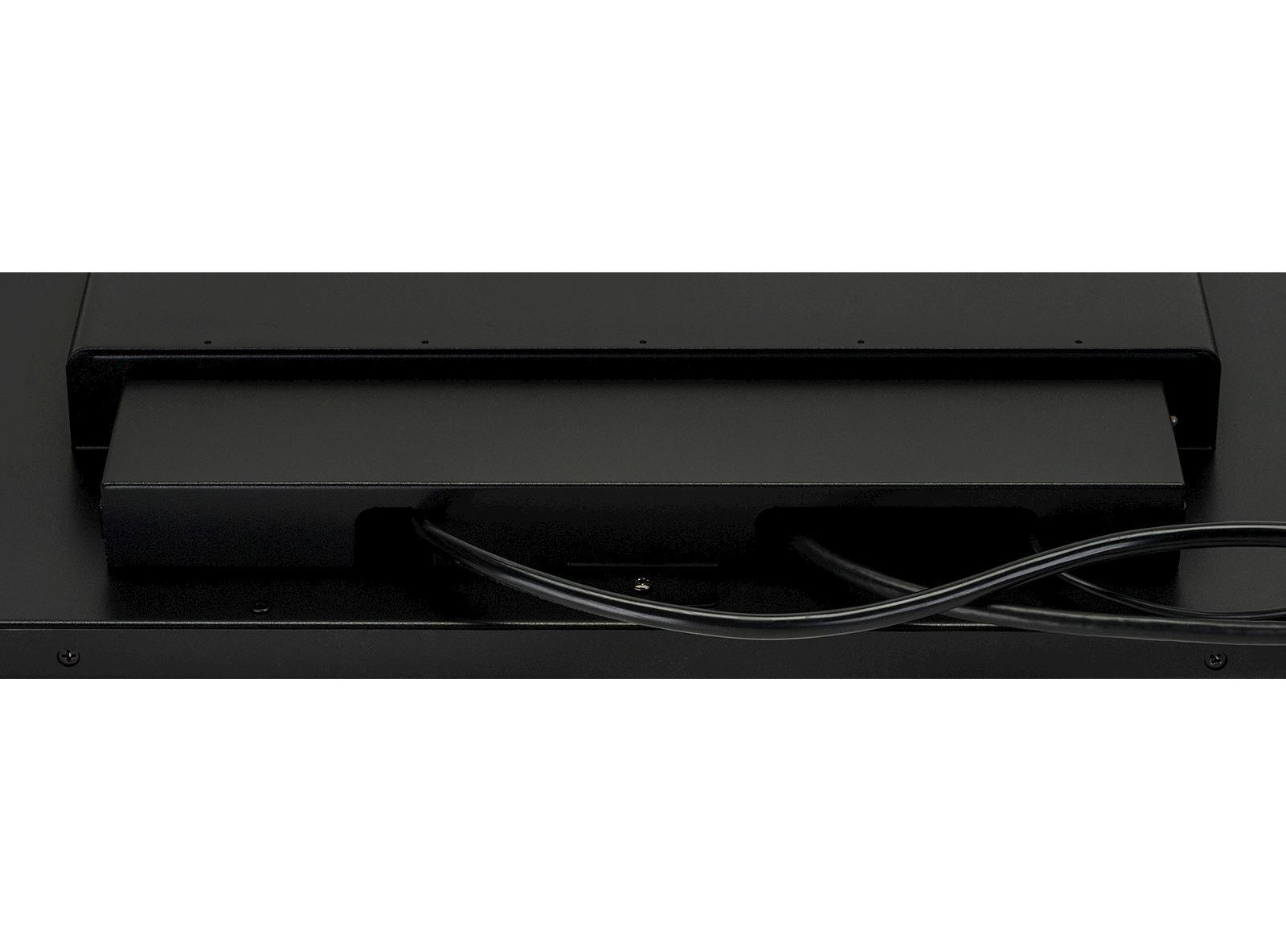

Cable cover yes

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50Hz
Power usage 25W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CE, TÜV-Bauart, Energy Star , CU, cULus
Energy efficiency class F
Other REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

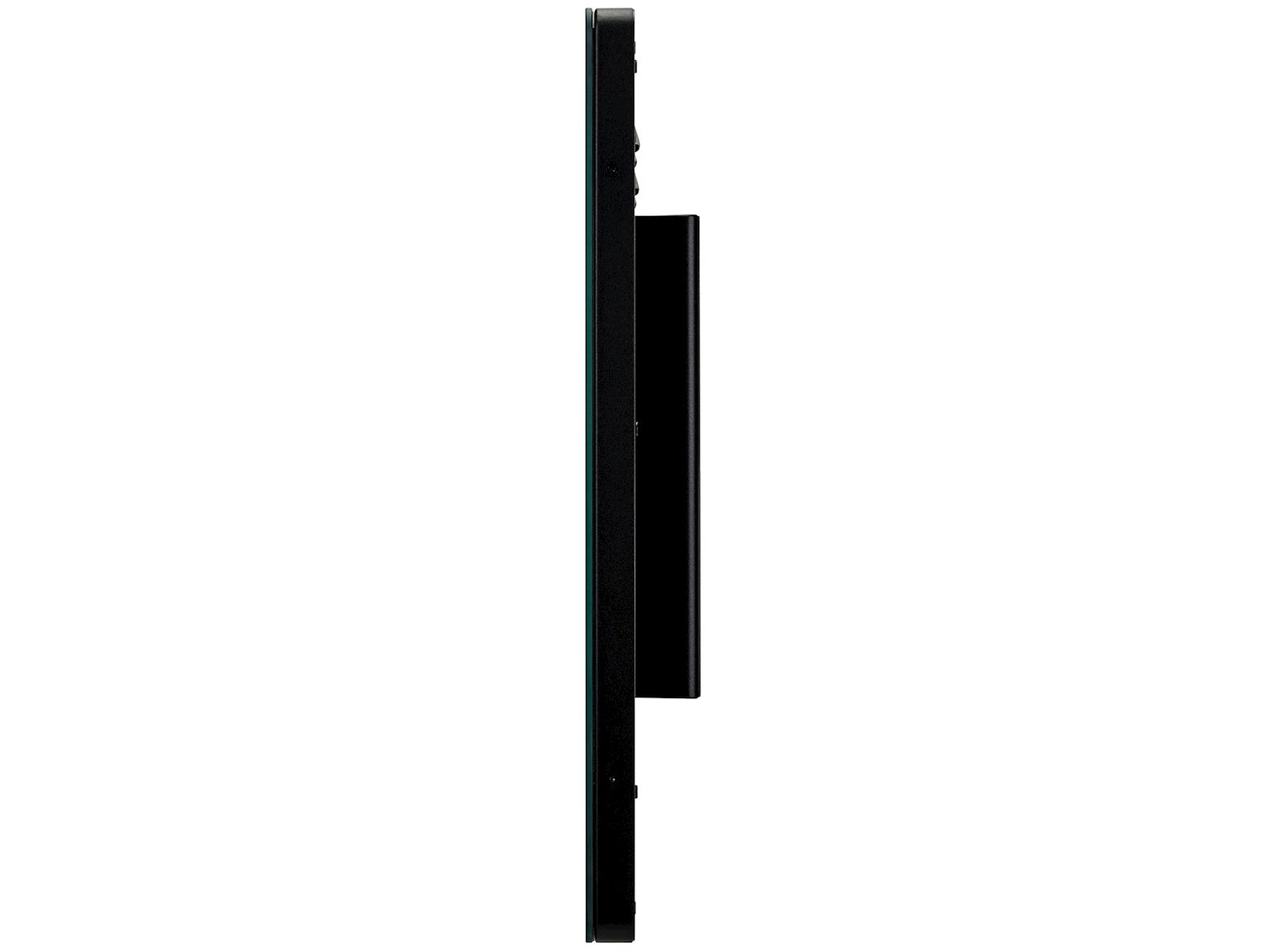

Product dimensions W x H x D 648.5 x 386.5 x 52mm
Weight (without box) 8.3kg
EAN code 4948570118199



Features

FULL HD

With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.


FULL HD

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

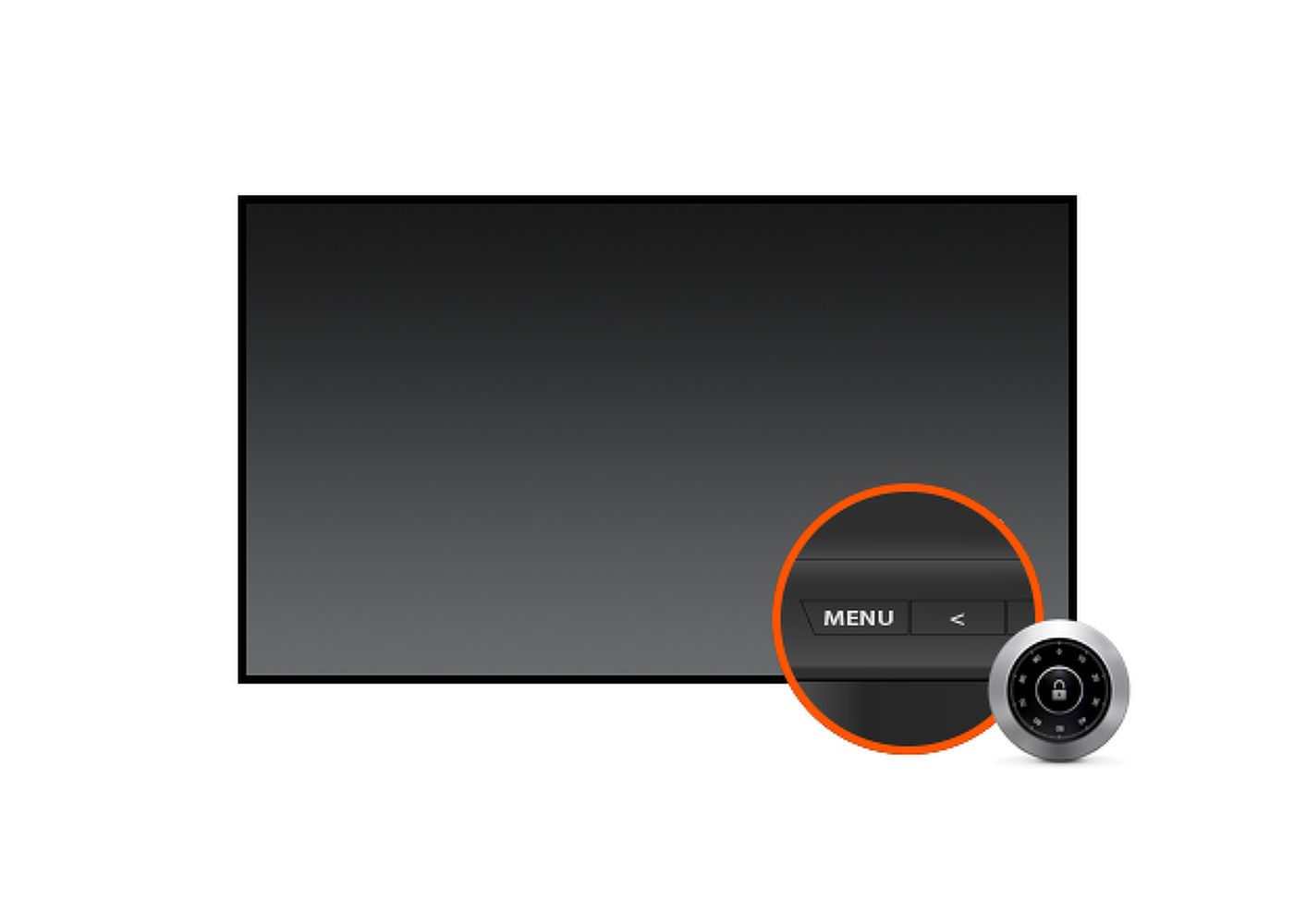

KEY LOCK

You can easily lock and unlock the controls preventing unauthorised changes to settings you made.

KEY LOCK

BLUE LIGHT REDUCER

As we all know looking at a monitor screen for several hours per day, especially form a closer distance, causes eye fatigue. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Therefore reducing the amount of blue light ultimately allows our eyes to feel less tired while working long hours with a computer screen. We achieved it by adjusting the monitor's brightness and color temperature through a new feature called “Blue light reduction” easily accessible through the monitor’s OSD menu.


BLUE LIGHT REDUCER

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SCRATCH RESISTANCE

BALL-DROP-TEST PROOF

The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.

BALL-DROP-TEST PROOF
