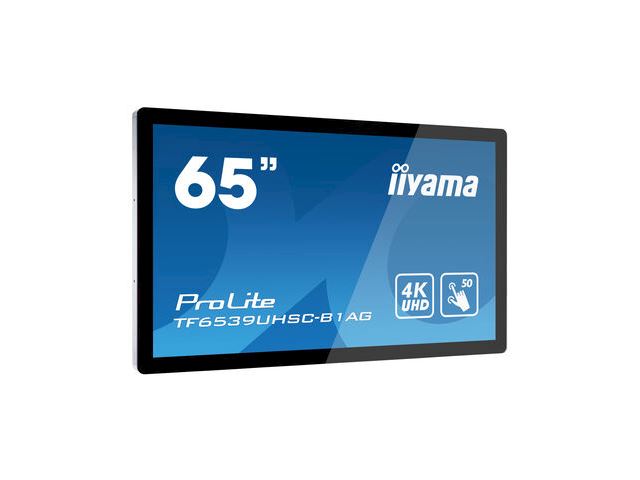

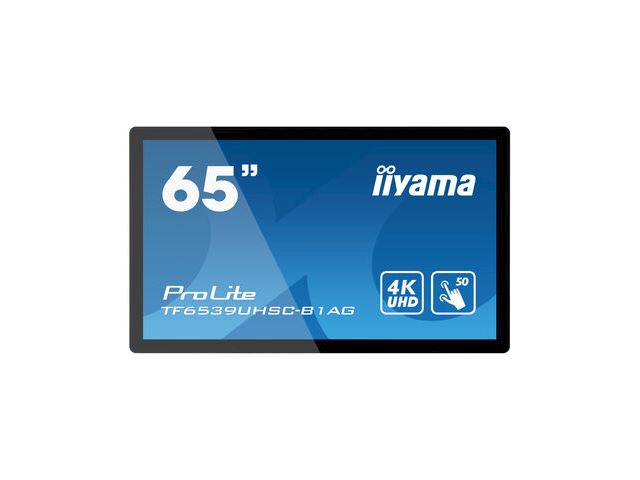

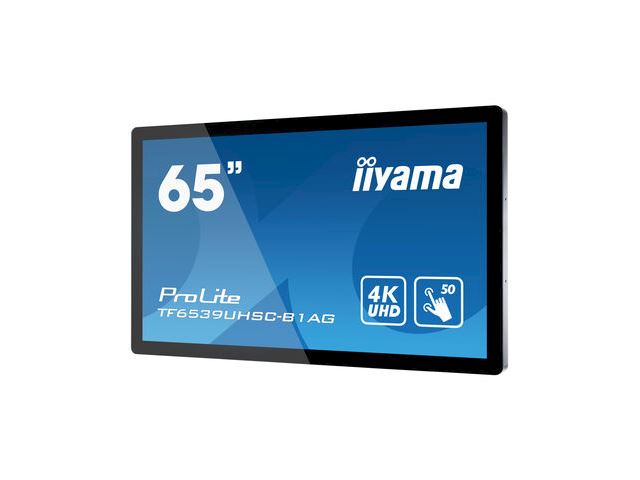

iiyama Prolite monitor TF6539UHSC-B1AG 65" Black, IPS, Anti Glare, 4K UHD, Projective Capacitive 50pt Touch, 24/7, Landscape/Portrait/Face-up, Open Frame

£2,933.28 exc. VAT
£3,519.94 inc. VAT

Sorry, this product is currently out of stock. Enter your name and email address or phone number and we will let you know when it is back in stock.

Brand: iiyama

Manufacturer Code: TF6539UHSC-B1AG

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

65" Open Frame PCAP interactive large format display with 50pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use

The 4K UHD (3840x2160) Open Frame TF6539UHSC-B1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF6539UHSC-B1AG can be equipped with optional external mounting brackets (OMK4-2) making it an ideal solution for kiosk integrators and interactive multimedia.

Technical Information

DISPLAY CHARACTERISTICS

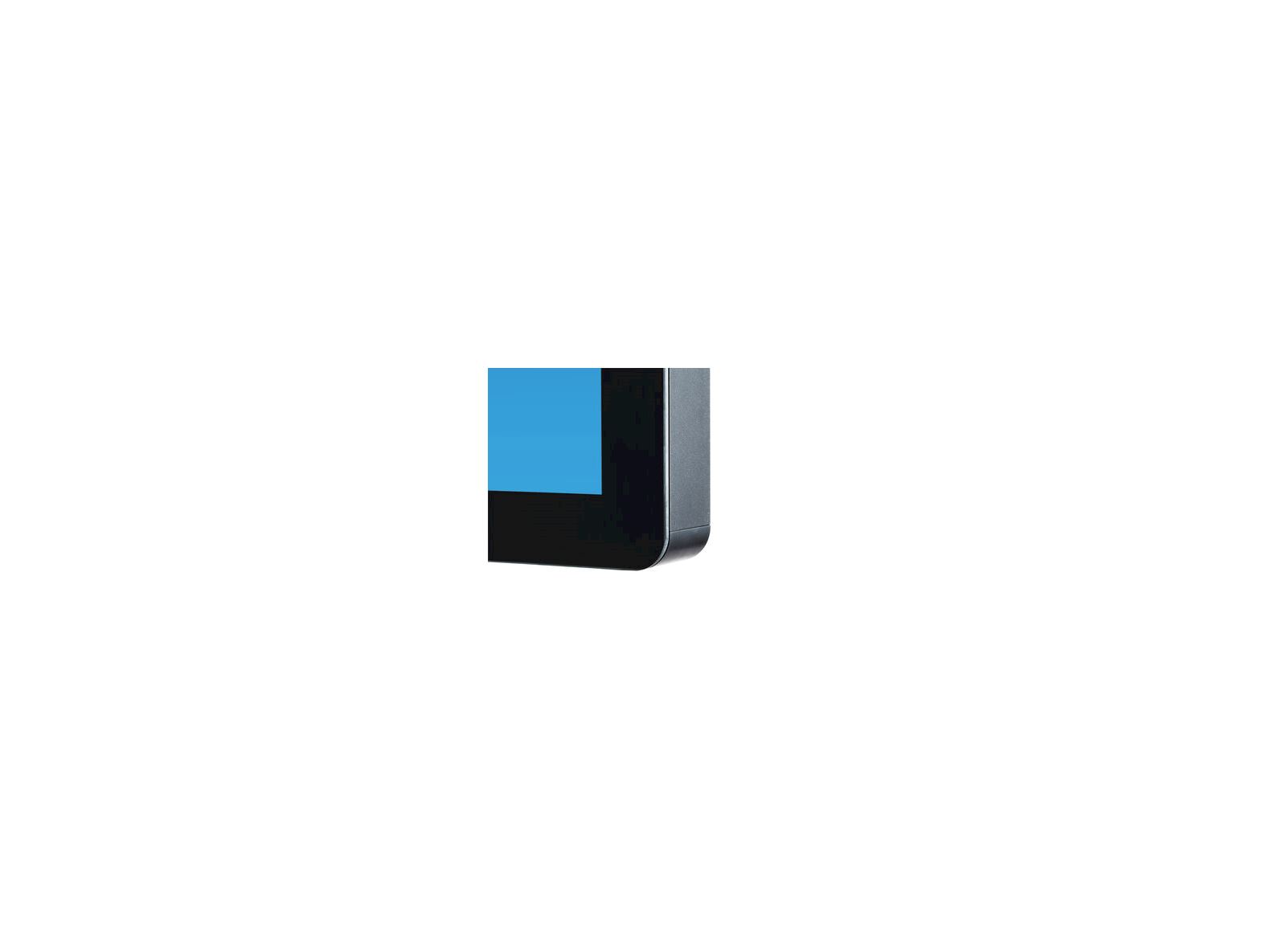

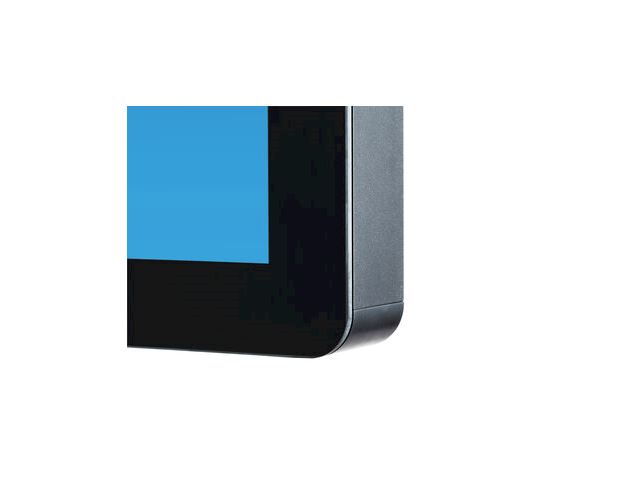

Design Edge to edge glass, Open Frame
Diagonal 65", 165cm
Panel IPS LED, AG coated glass
Native resolution 3840 x 2160 @60Hz (8.3 megapixel 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Light transmittance 84%
Static contrast 1100:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0°
Colour support 16.7mln 8bit
Horizontal Sync 30 - 83kHz
Viewable area W x H 1430.9 x 806mm, 56.3 x 31.7"
Bezel width (sides, top, bottom) 36.3mm, 37.3mm, 37.3mm
Pixel pitch 0.372mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 50 (HID, only with supported OS)
Touch accuracy +- 3mm
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1 (max. 1920x1200 @60Hz)
Digital signal input HDMI x2 (v.2.0 x1 max. 3840x2160 @60Hz, v.1.4 x1 max. 3840x2160 @30Hz)
DisplayPort x1 (v.1.2 max. 3840x2160 @60Hz)
Audio input Mini jack x1
Monitor control input RS-232c x1
RJ45 (LAN) x1
Audio output Mini jack x1
Speakers 2 x 8W
HDCP yes

FEATURES

Extra handles, touch through-glass, temperature sensor with fan control
Max. non-stop operating time 24/7
Anti image retention yes
Glass thickness 5mm
Glass hardness 7H
60950 Ball drop test yes
Water and dust protection IP54 (front)
Housing (bezel) metal

GENERAL

OSD languages EN, DE, FR, ES, IT, RU, NL, PL
Control buttons power, menu, exit, up, down
User controls picture (picture mode, backlight, contrast, brightness, chroma, phase, sharpness, colour temp., reset), sound (treble, bass, balance, volume, mute, speaker, audio source, reset), screen (aspect, adjust screen, touch feature, touch switch), settings (language, schedule, power save, control setting, network setting, advanced, information, all reset)
Plug&Play DDC2B

MECHANICAL

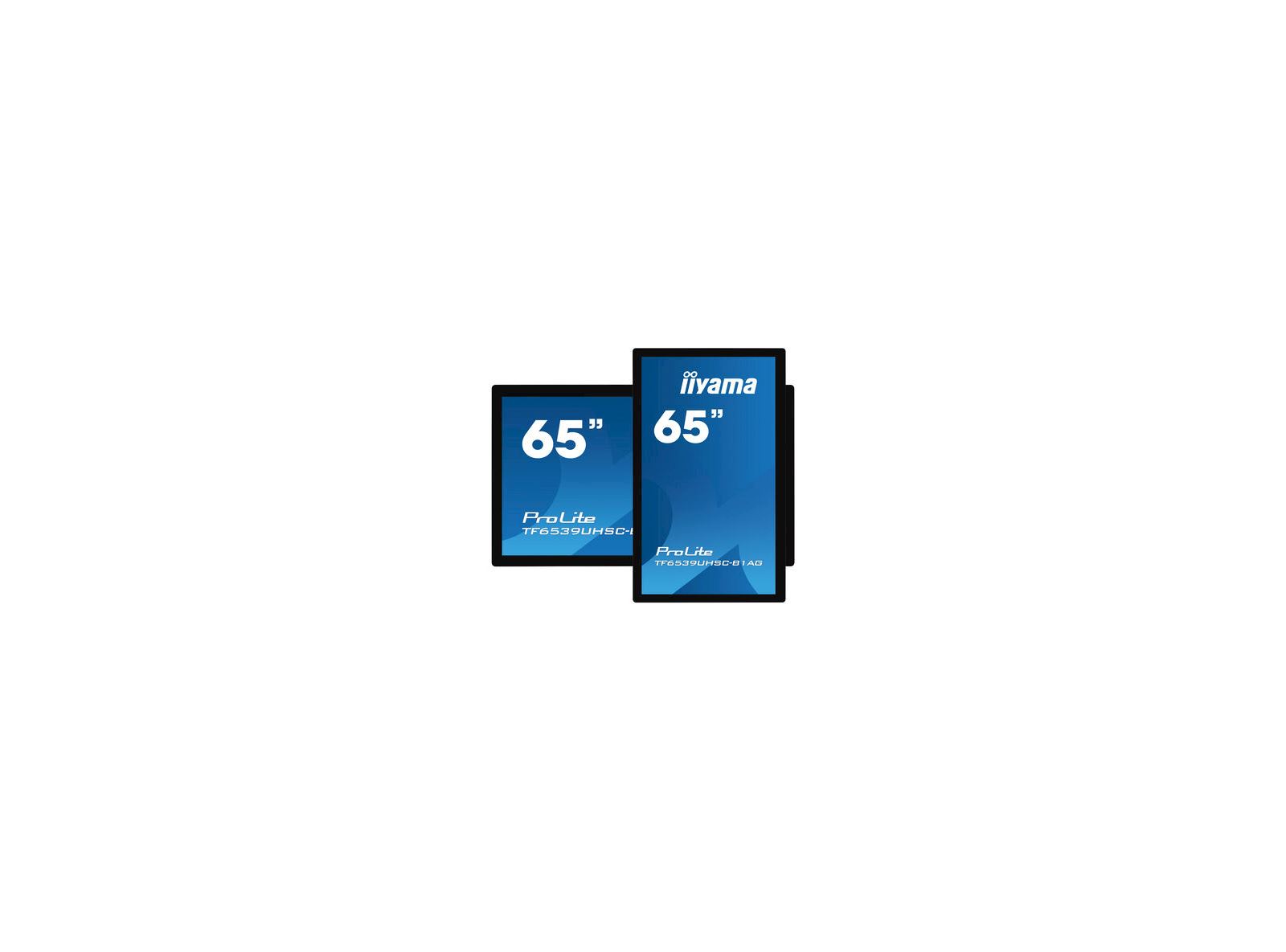

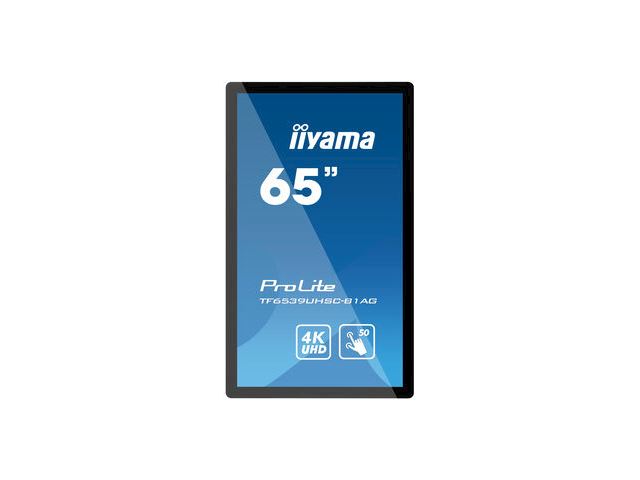

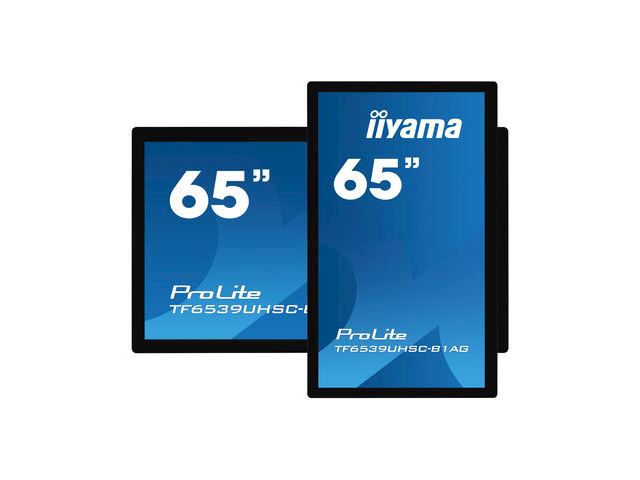

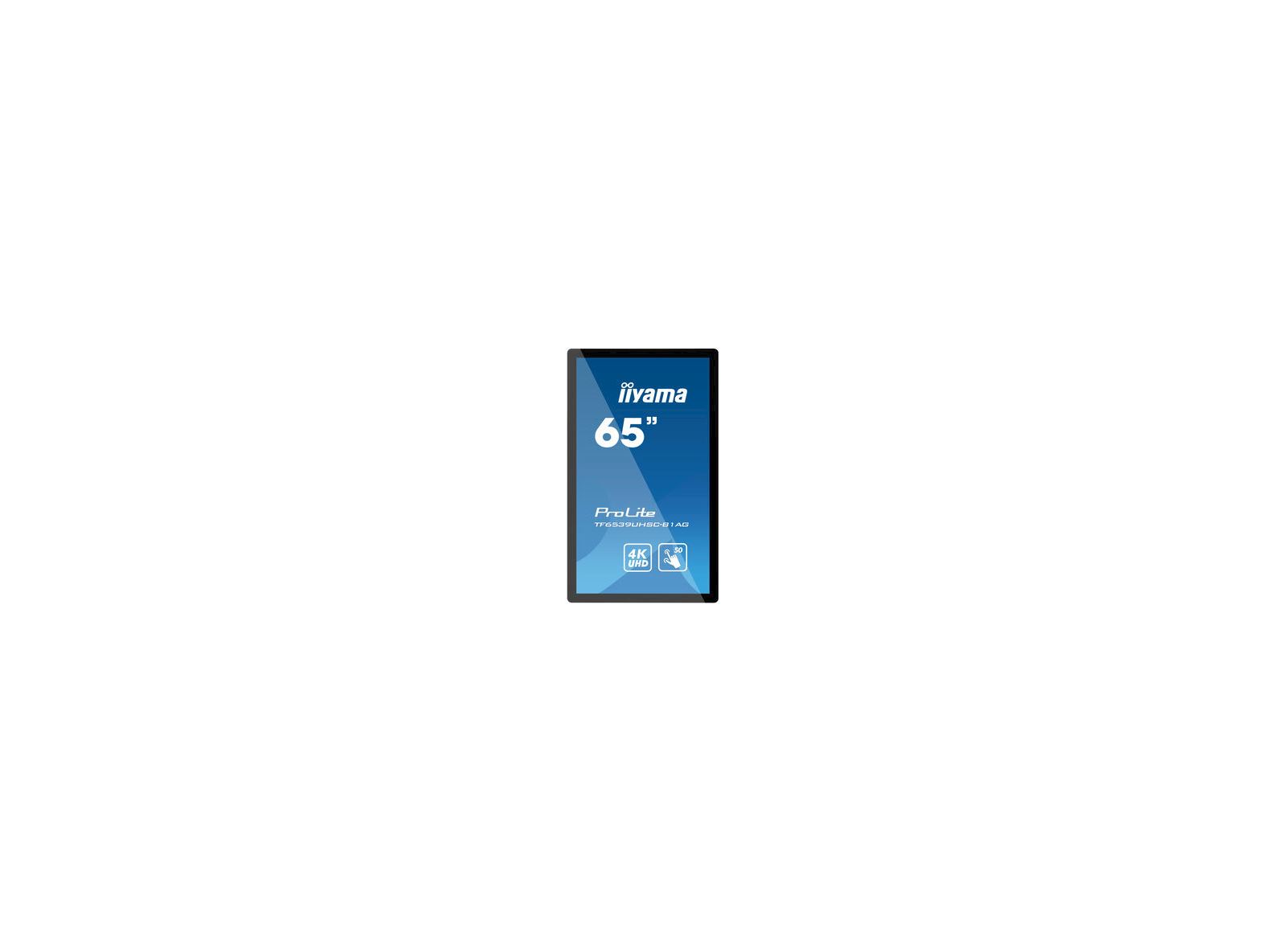

Orientation landscape, portrait, face-up
VESA mounting 600 x 400mm
Mini PC mount VESA 100 x 100, NUC INTEL
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - %2°C
MTBF 50000 hours (excluding backlight)

ACCESSORIES INCLUDED

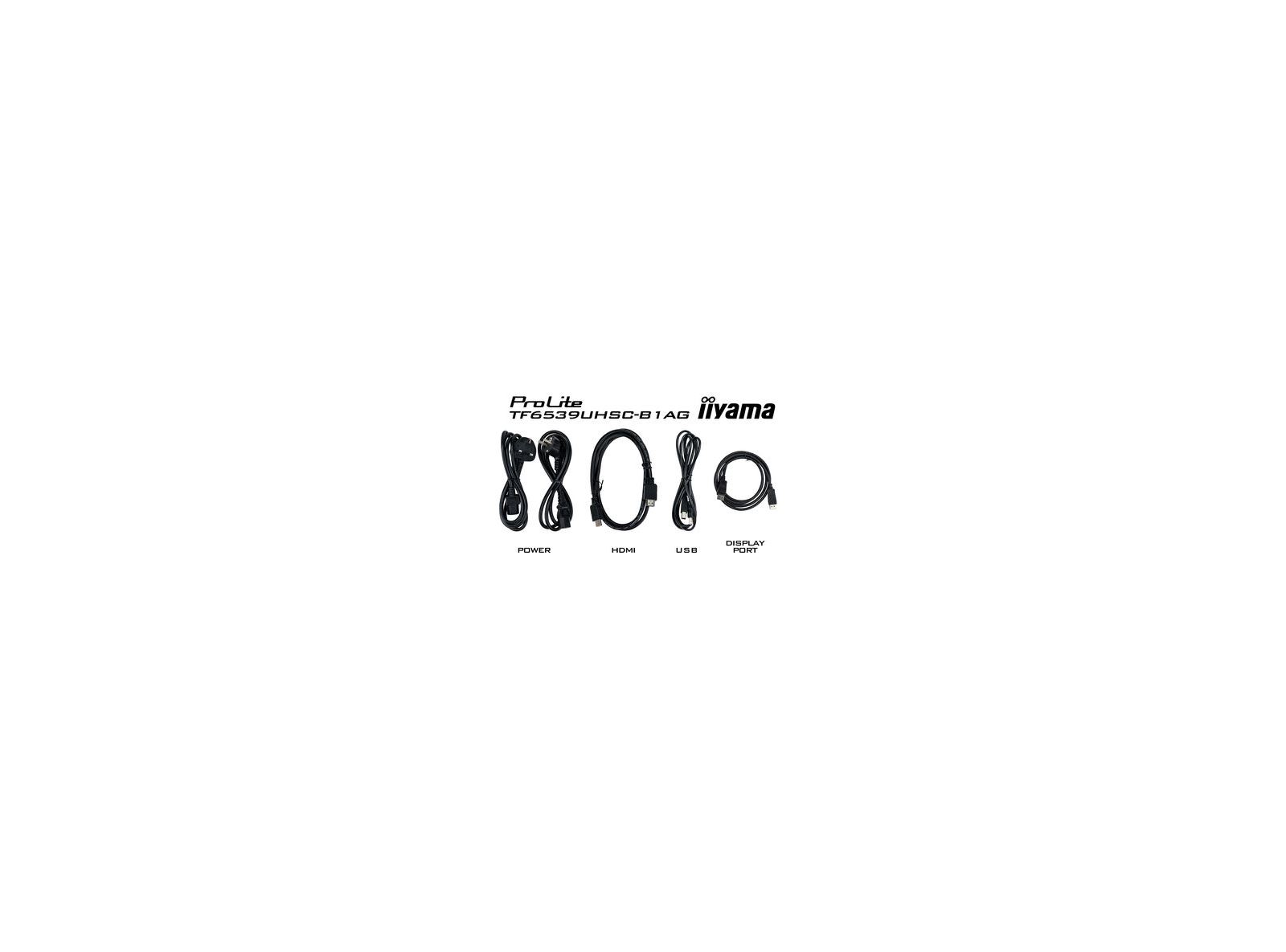

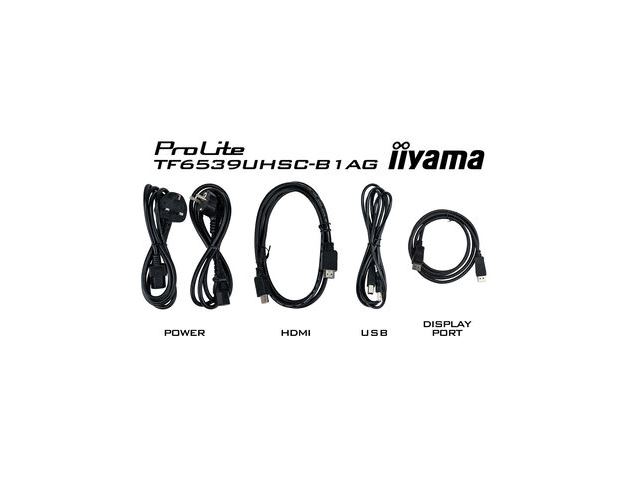

Cables power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)
Guides quick start guide, safety guide
Cable cover yes

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, V, /50Hz
Power usage 175W typical, 1.0W stand by, 0.5W off mode

SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) G
REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 1503.5 x 880.5 x 67mm
Box dimensions W x H x D 1670 x 1020 x 310mm
Pallet volume 8pcs
Pallet dimensions W x H x D 1690 x 2292 x 1260mm
Weight (without box) 56kg
Weight (with box) 65kg
EAN code 4948570118083
Features

24/7

24/7 displays are designed for a continuous operation.



24/7

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

AG COATING

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

AG COATING

BALL-DROP-TEST PROOF

The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.

BALL-DROP-TEST PROOF

OPEN FRAME LFD

Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.

OPEN FRAME LFD
