iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology

Name: iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology
Brand: iiyama
SKU: TW1623AS-B1P
Price: 353.76 GBP
Availability: InStock

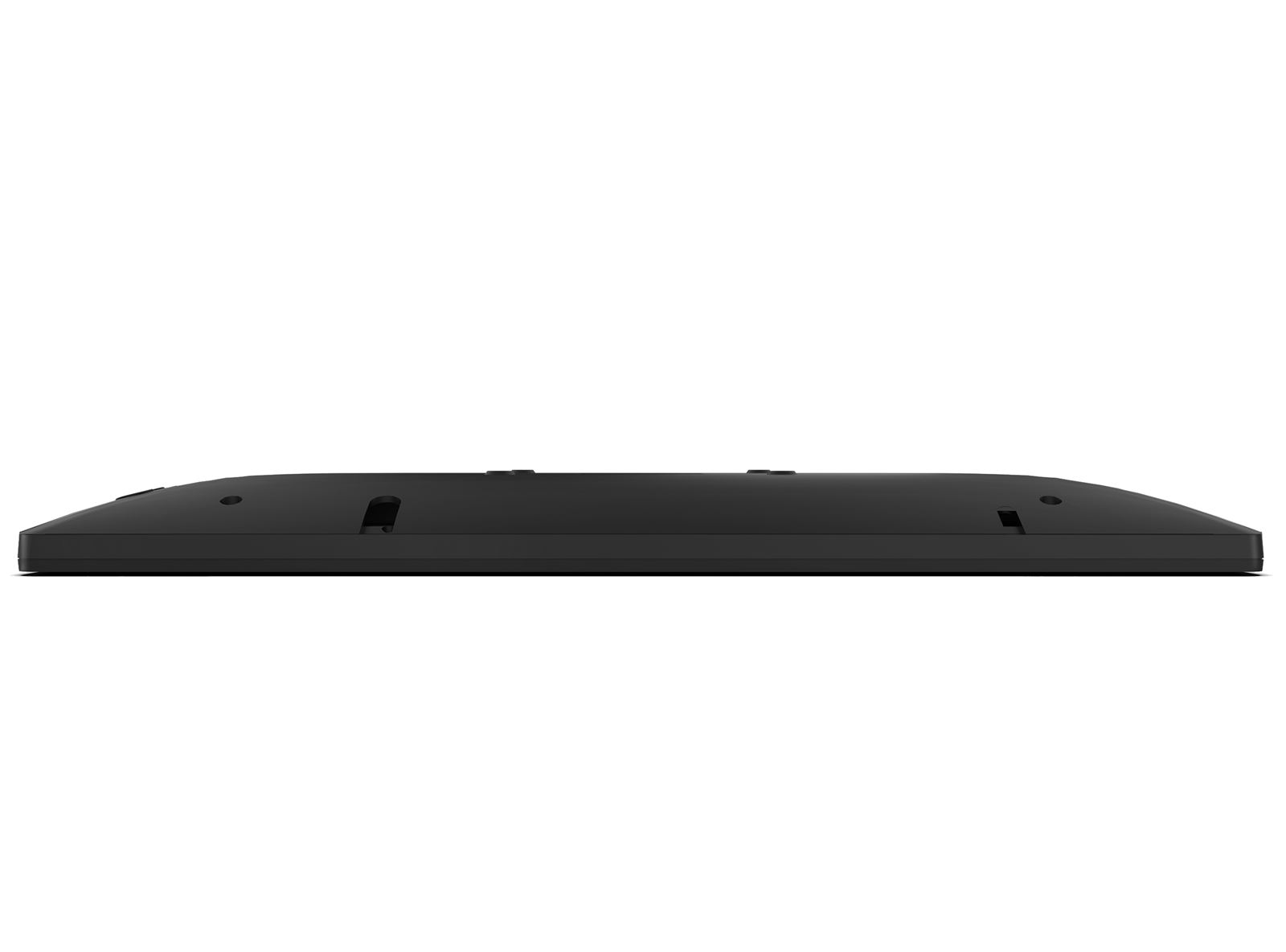

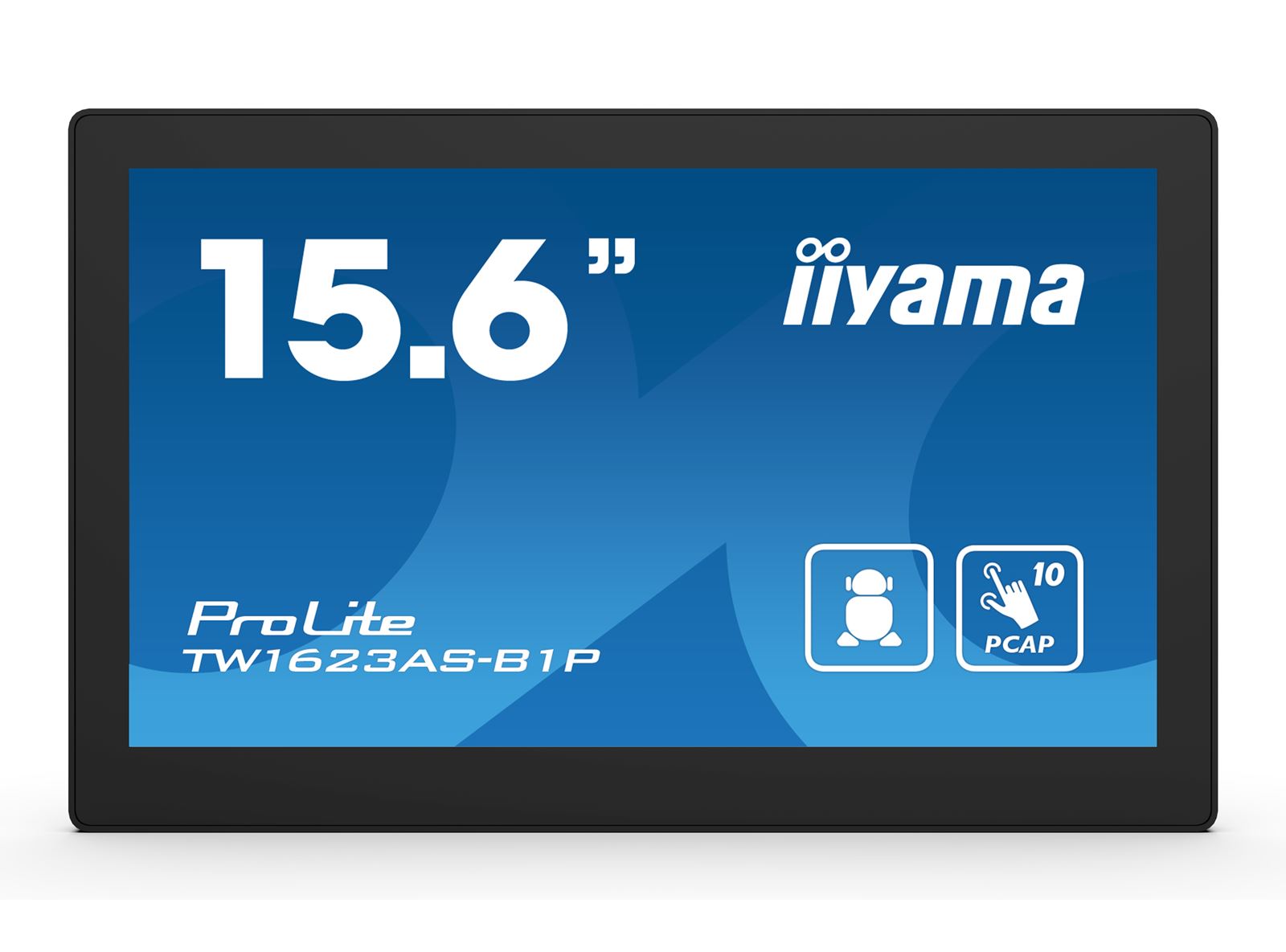

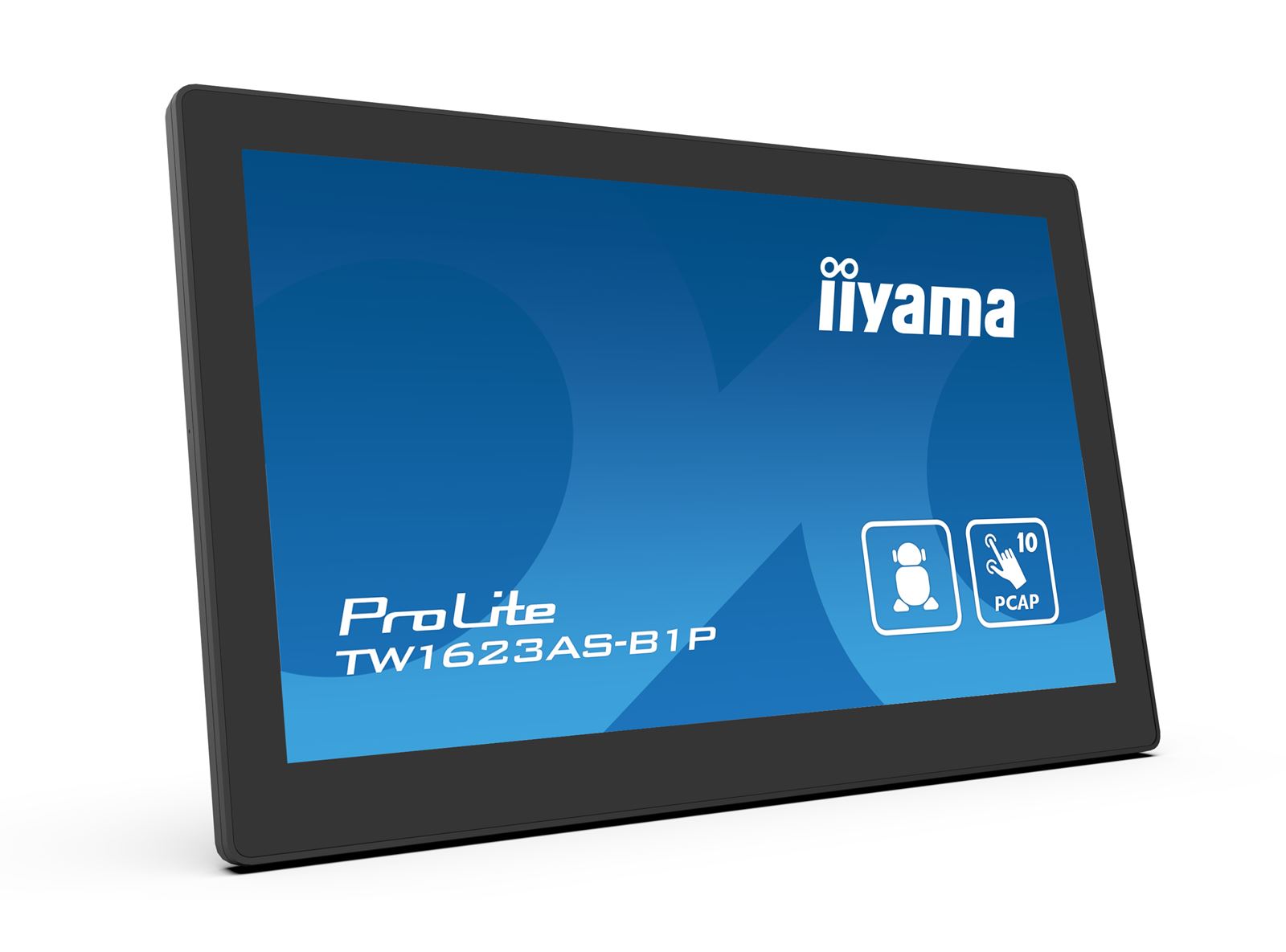

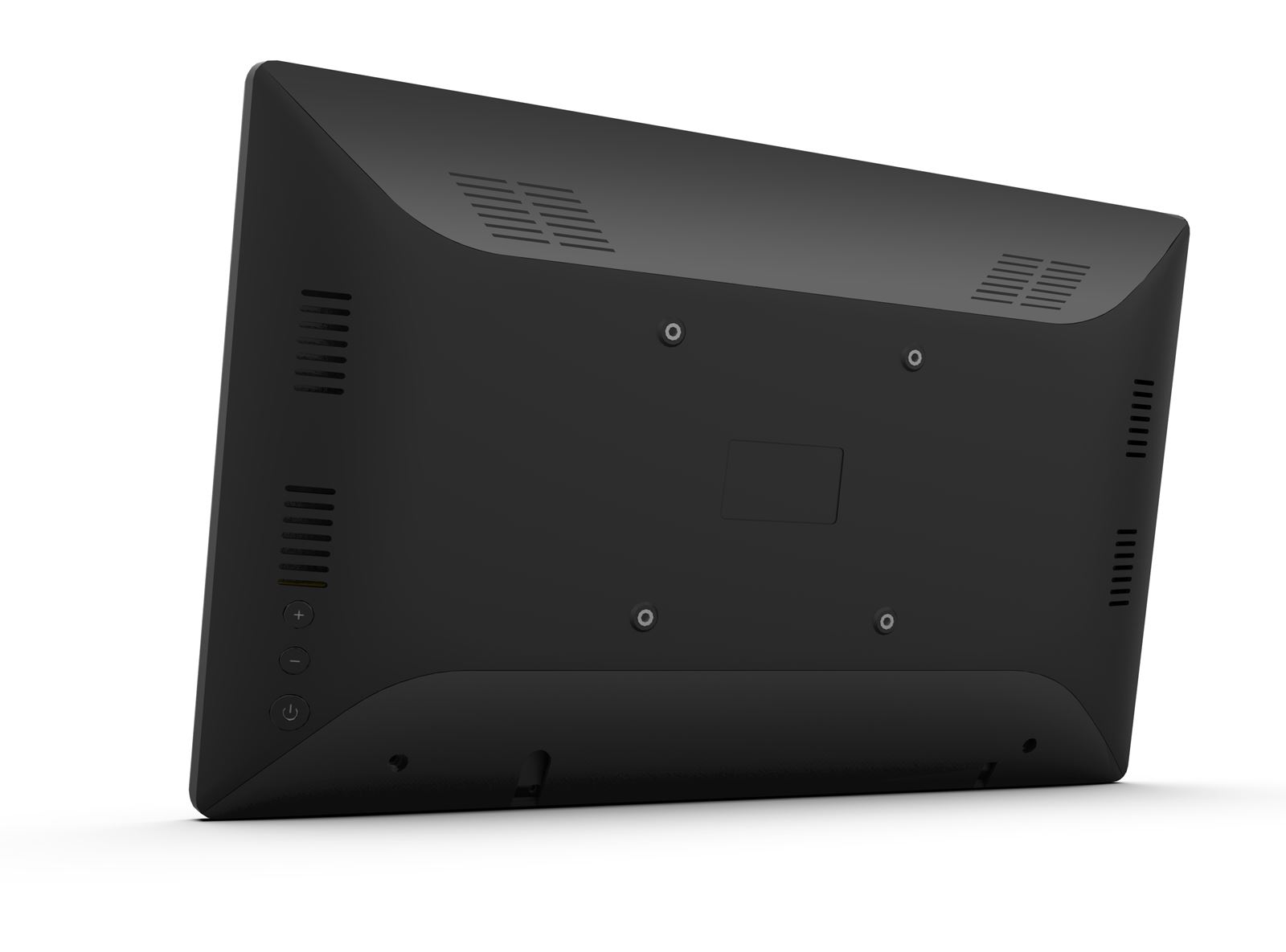

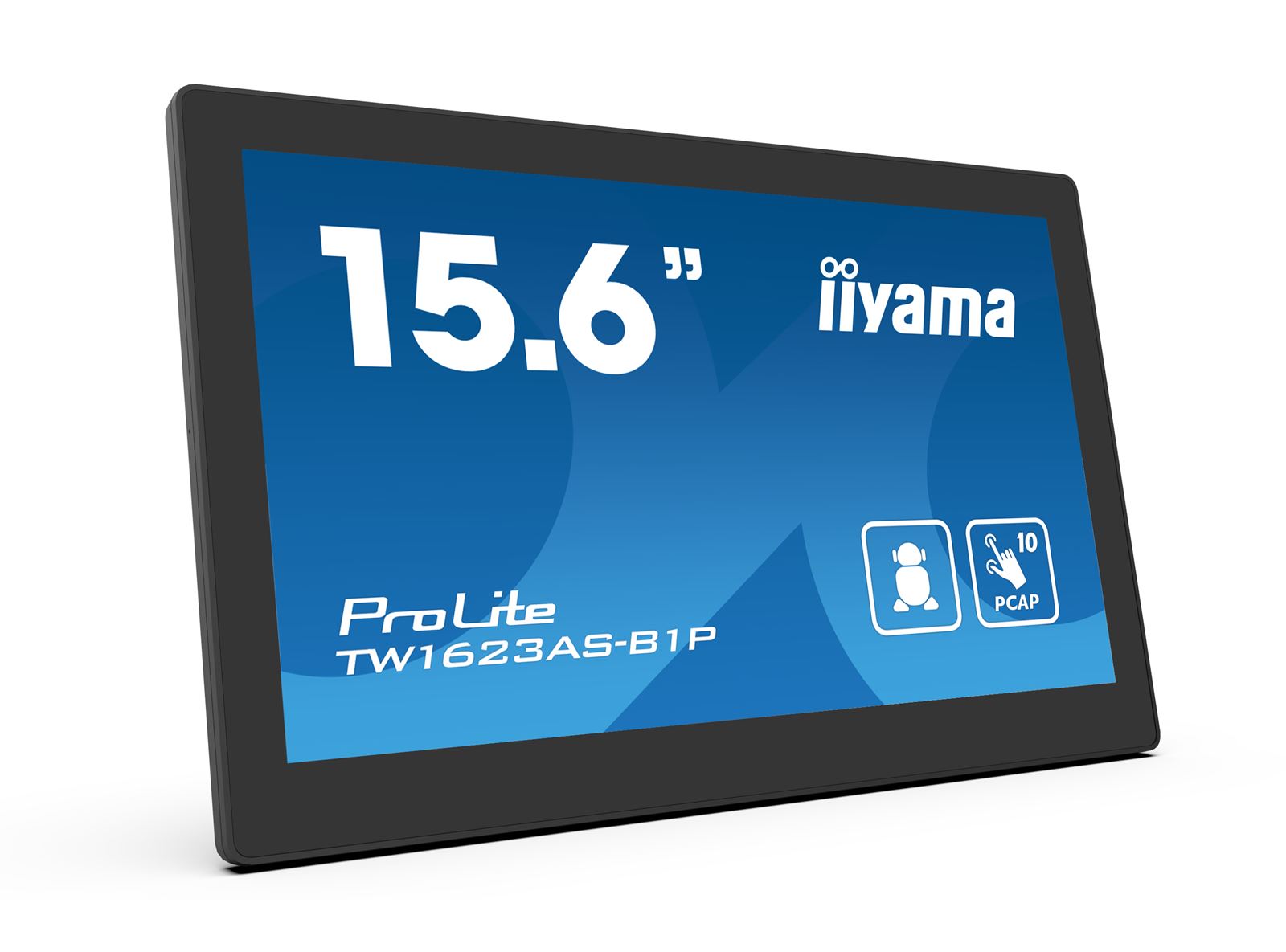

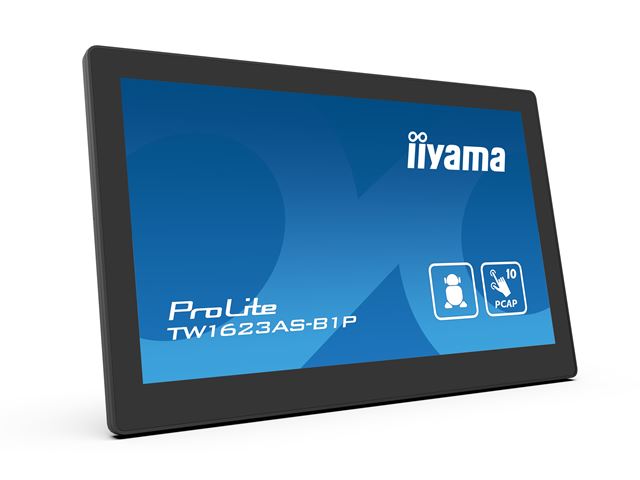

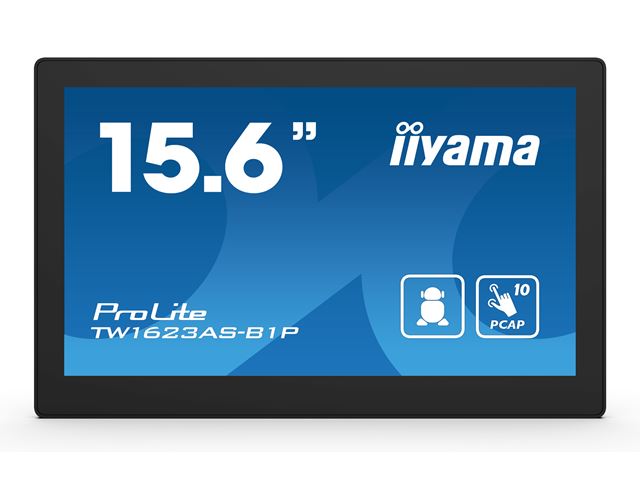

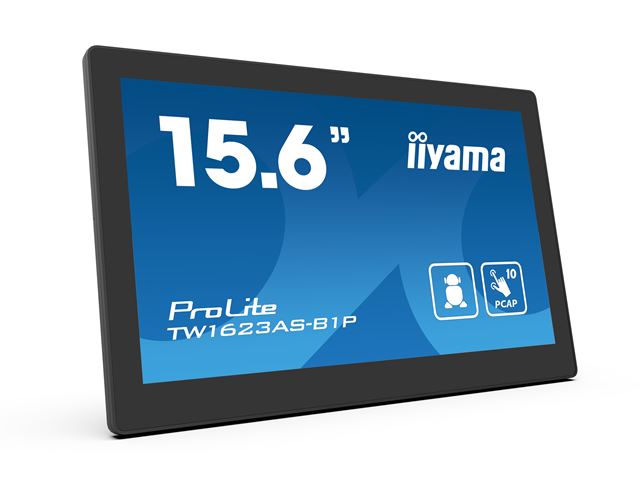

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology image 0

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology image 1

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology image 2

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology image 3

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology image 4

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology image 5

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology image 6

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology image 7

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology image 8

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology thumbnail 0

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology thumbnail 1

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology thumbnail 2

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology thumbnail 3

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology thumbnail 4

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology thumbnail 5

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology thumbnail 6

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology thumbnail 7

iiyama ProLite TW1623AS-B1P, 15.6” Full HD PCAP 10pt touch screen with Android and POE Technology thumbnail 8

£294.80 exc. VAT

£353.76 inc. VAT

Next working day delivery
In stock
Quantity:
Add to Basket

Brand: iiyama

Manufacturer Code: TW1623AS-B1P

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

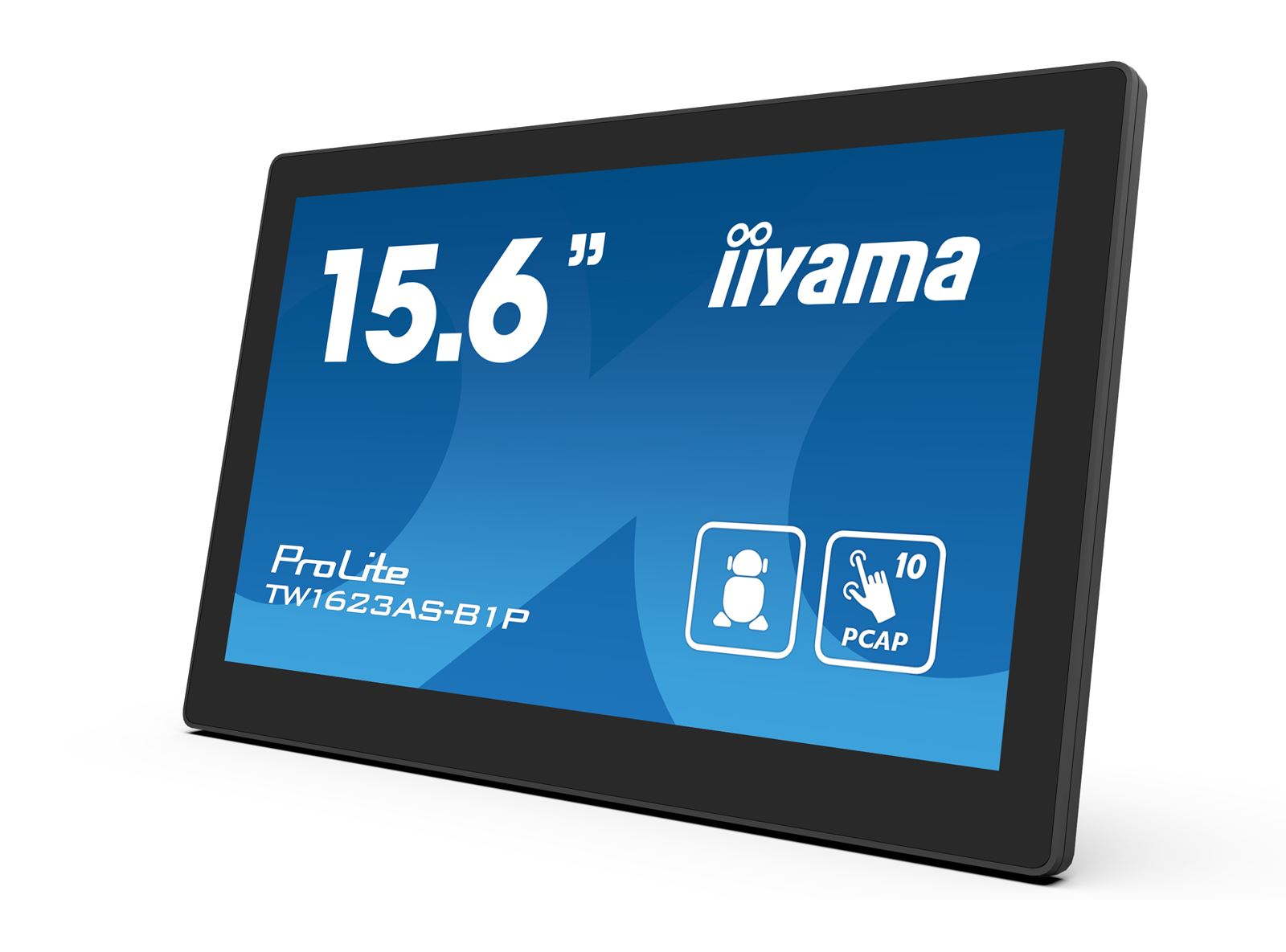

15.6” Full HD PCAP 10pt touch screen with Android and POE Technology

The ProLite TW1623AS-B1P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications. Thanks to the pre-installed Android operating system, it is possible to easily customize the monitor by installing applications directly to it.

The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Together with the built-in microphone and speakers it offers interactive and almost limitless application possibilities.

Technical Information

DISPLAY CHARACTERISTICS

Design	Edge to edge glass
Diagonal	15.6", 39.5cm
Panel	IPS
Native resolution	1920 x 1080 (2 megapixel HD)
Aspect ratio	16:9
Panel brightness	450 cd/m²
Brightness	385 cd/m² with touch
Light transmittance	86%
Static contrast	1000:1 with touch
Response time (GTG)	30ms
Viewing zone	horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85°
Colour support	16.7mln 8bit
Viewable area W x H	344.2 x 193.6mm, 13.5 x 7.6"
Pixel pitch	0.17925mm
Bezel colour and finish	black, matte

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	finger, glove (latex), capacitive stylus
Touch interface	USB

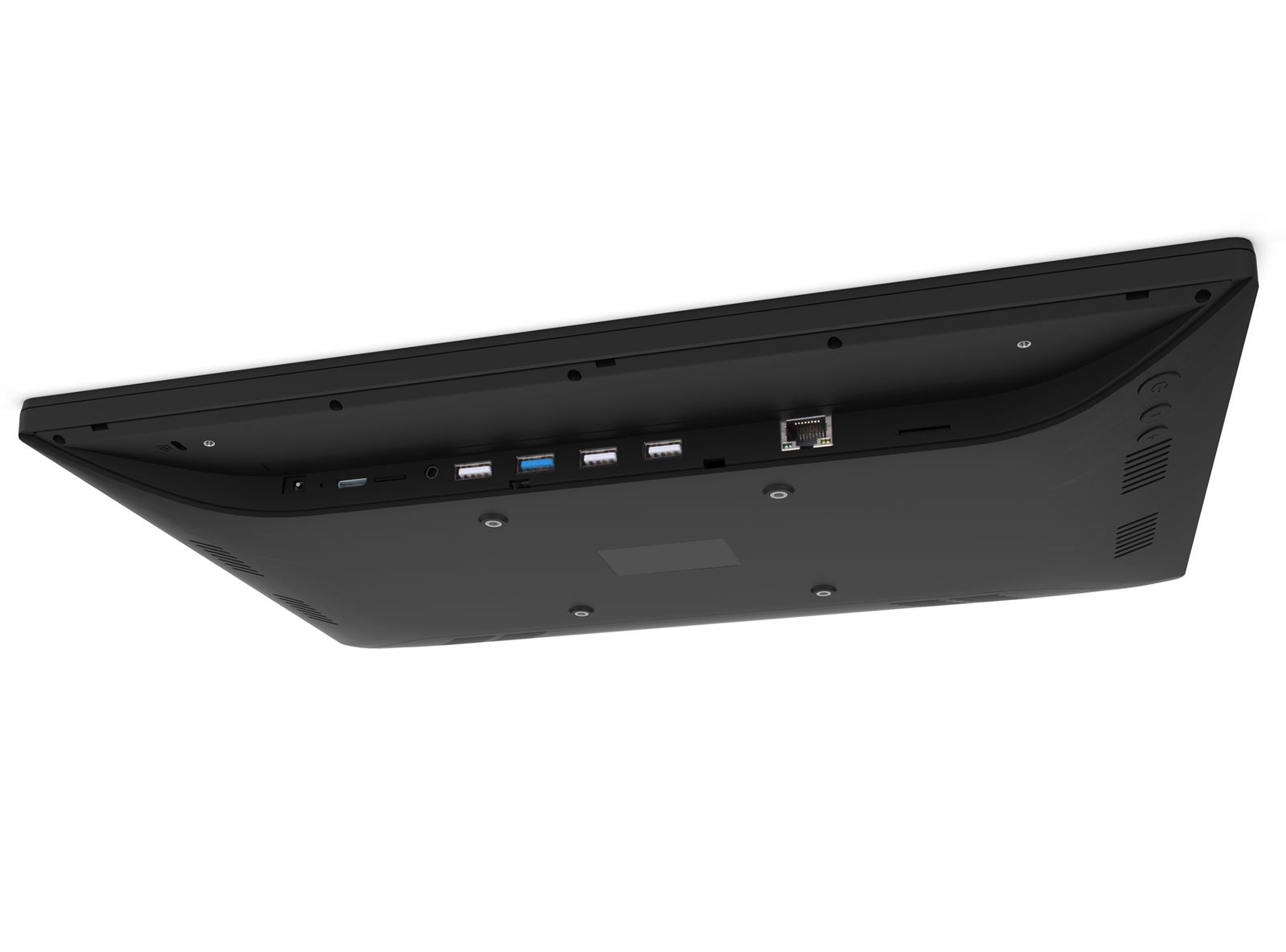

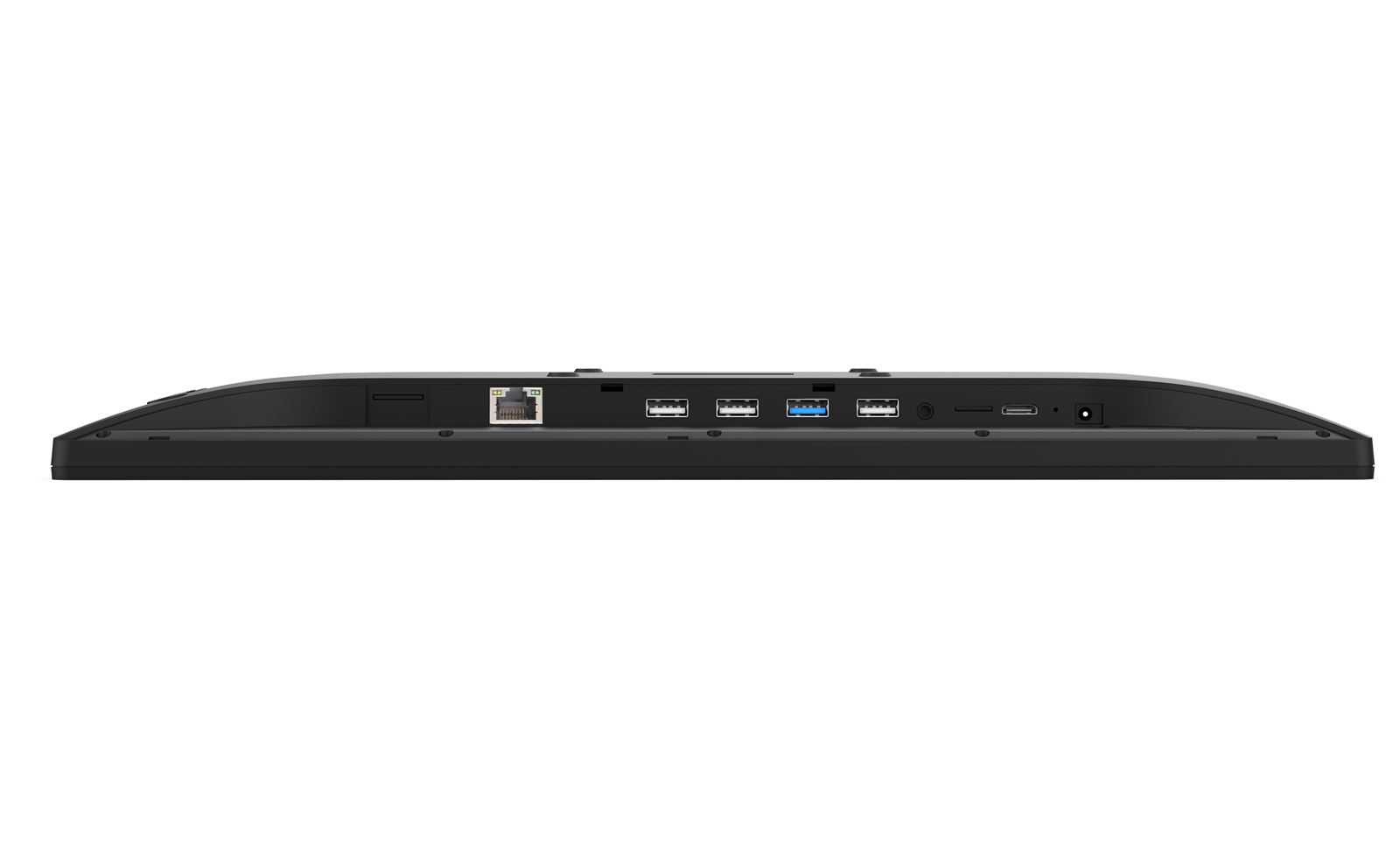

INTERFACES / CONNECTORS / CONTROLS

Monitor control input	RJ45 (LAN) x1 (PoE - IEEE802.3 at/Max. 30W)
Digital signal output	HDMI x1 (mini HDMI, 1920x1080 @60Hz)
Audio output	Mini jack x1 Speakers 2 x 2W
USB ports	x3 (2.0 (DC5V, 500mA))
Microphone	x1

FEATURES

Integrated software	Android 13
CPU	Rockchip RK3568, up to 2GHz
GPU	Quad-core Cortex A55
Storage	32GB eMMC
Memory	4GB DDR4
WiFi	IEEE802.11a/b/g/n/ac
Bluetooth	5.2
Extra	auto-rotation, microphone, SD card slot, anti-fingerprint coating
Max. non-stop operating time	24/7
Anti image retention	yes
Glass thickness	1.8mm
Glass hardness	6H
OSD key lock	yes

GENERAL

Control buttons	Volume +, volume -, power
Applications	Lock application, manage restart time, manage power on/off time, calculator, calendar, Chrome, alarm / clock / timer, / stopwatch, manage files & folders, organize albums, Gmail, play audio files, Play store, search engine, system preferences, sound recorder, play video files

MECHANICAL

Orientation	landscape, portrait, face-up

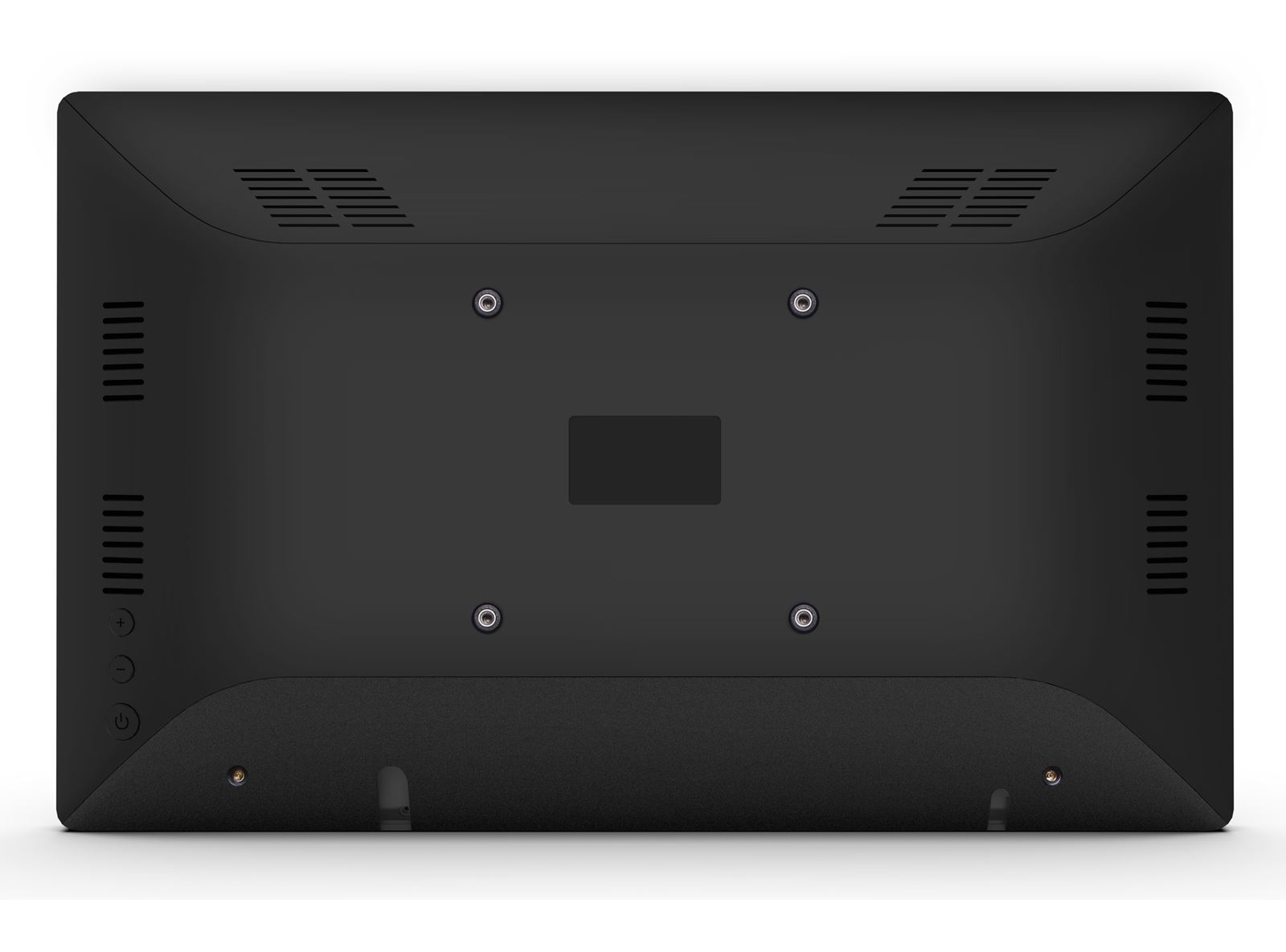

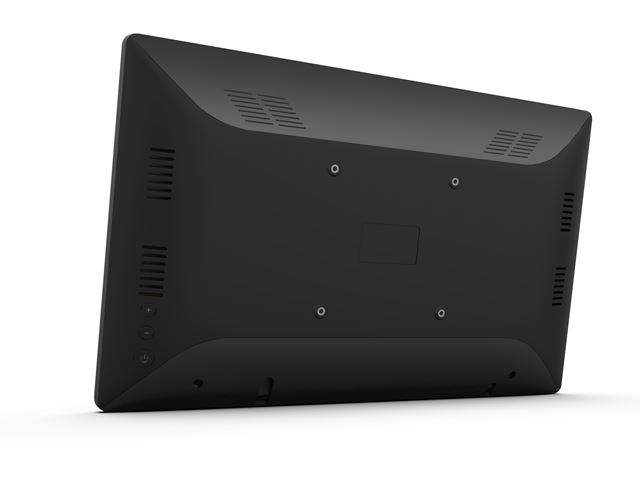

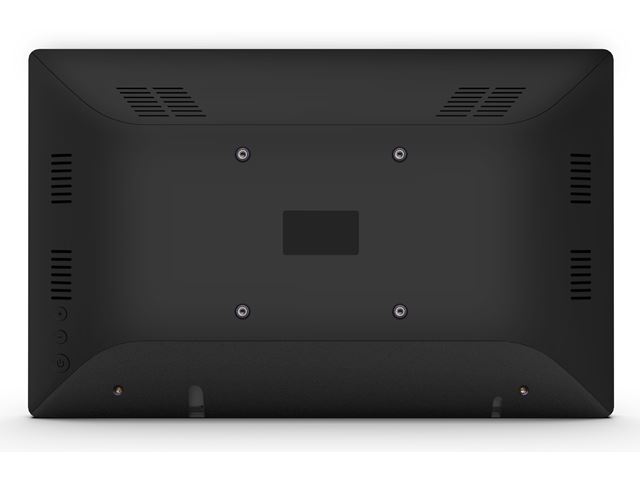

VESA mounting	100 x 100mm

ACCESSORIES INCLUDED

Guides	quick start guide, safety guide
Other	AC adapter
Cable cover	yes

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	24W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC	above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	387 x 244 x 30.5mm
Box dimensions W x H x D	477 x 295 x 75mm
Pallet volume	150pcs
Pallet dimensions W x H x D	1000 x 1200 x 1760mm
Weight (without box)	1.5kg
Weight (with box)	2.4kg
EAN code	4948570124534

Features

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

LAN CONTROL

LAN control enables making adjustments in the display OSD menu through your network (software not included).

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
