£253.00 exc. VAT

£303.60 inc. VAT

Sorry, this product is currently out of stock. Enter your name and email address or phone number and we will let you know when it is back in stock.

Please enter a valid email address

Send Back In Stock Notification

Brand: iiyama

Manufacturer Code: TW1623AS-B3P

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

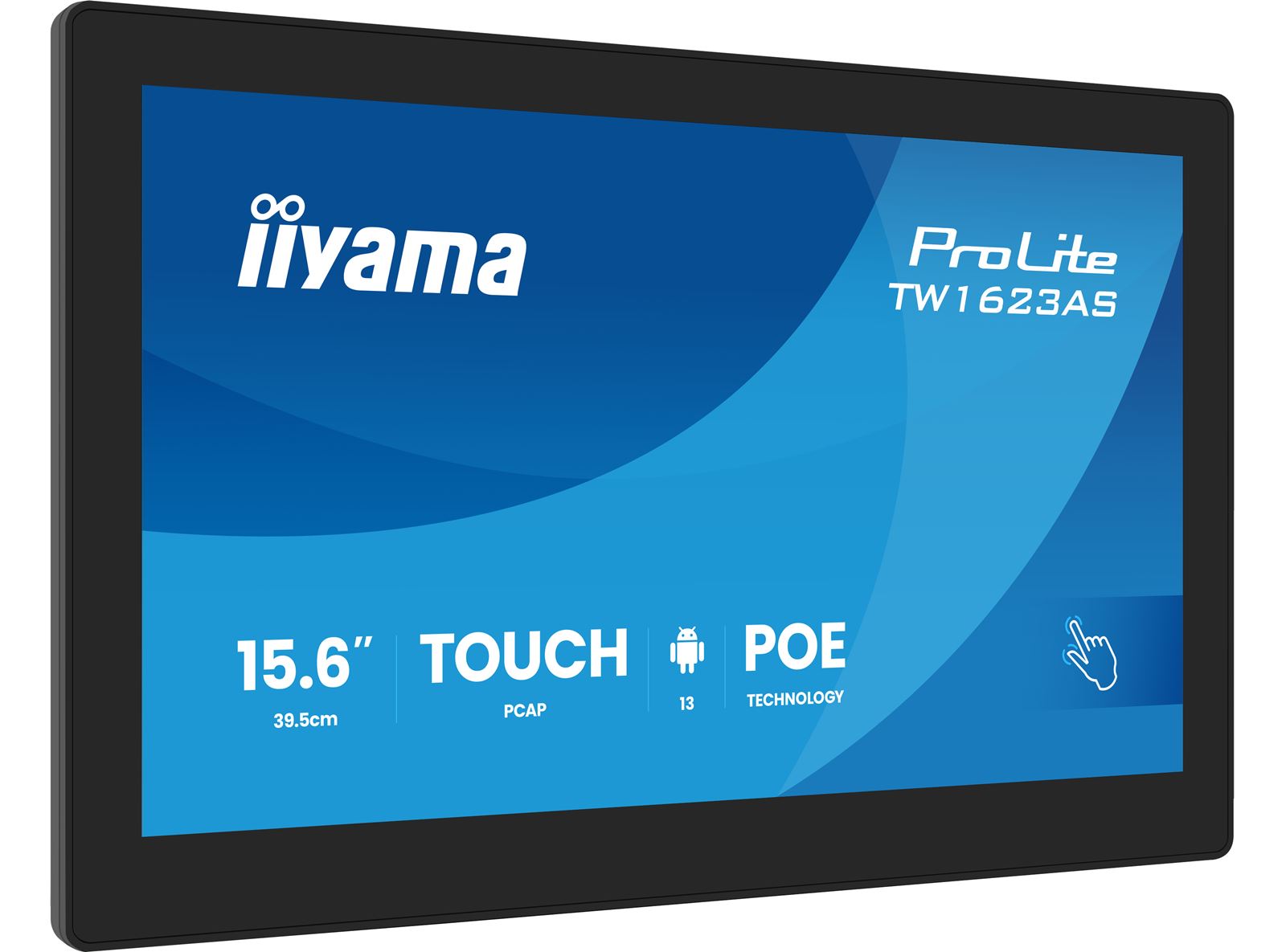

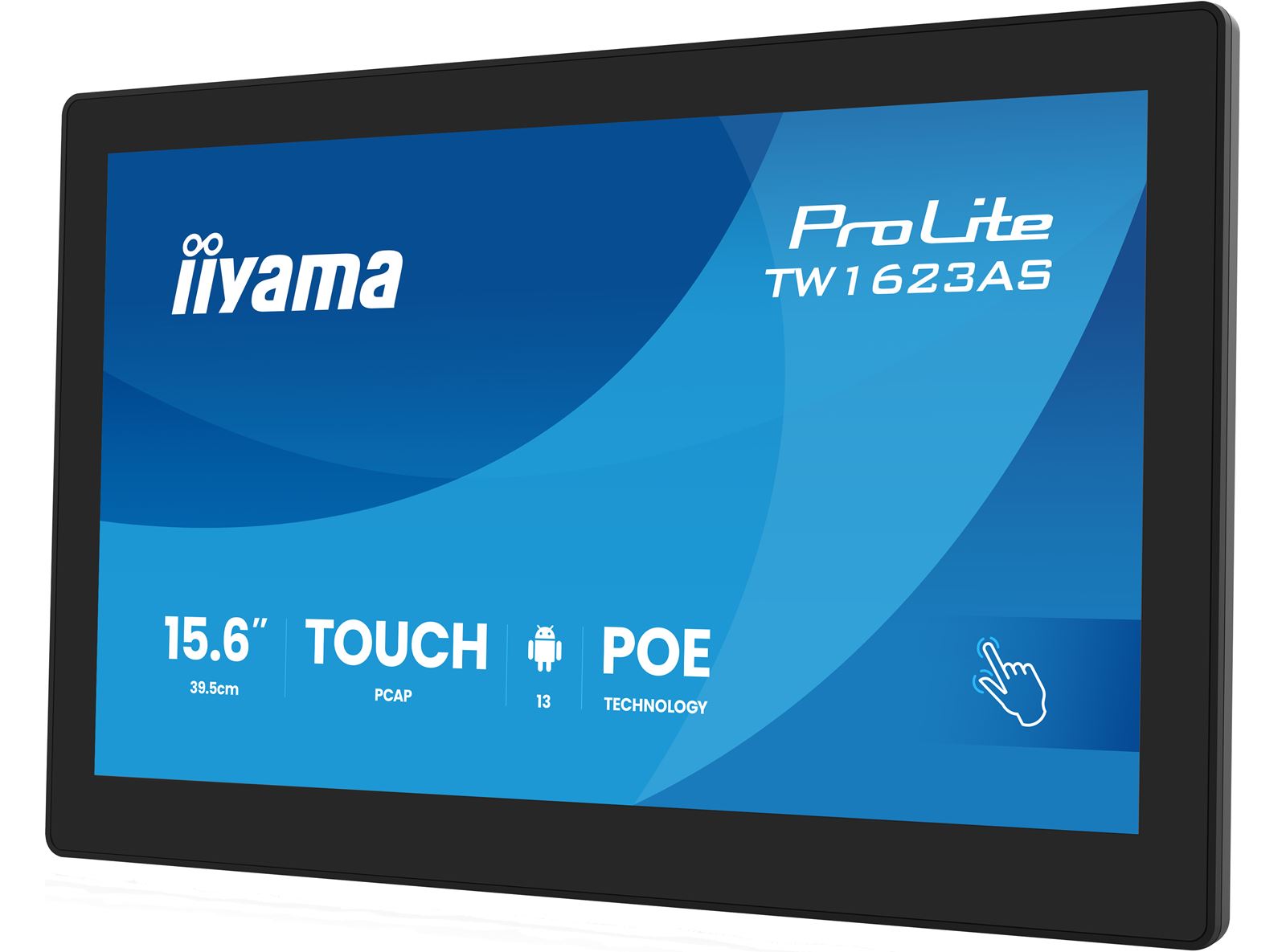

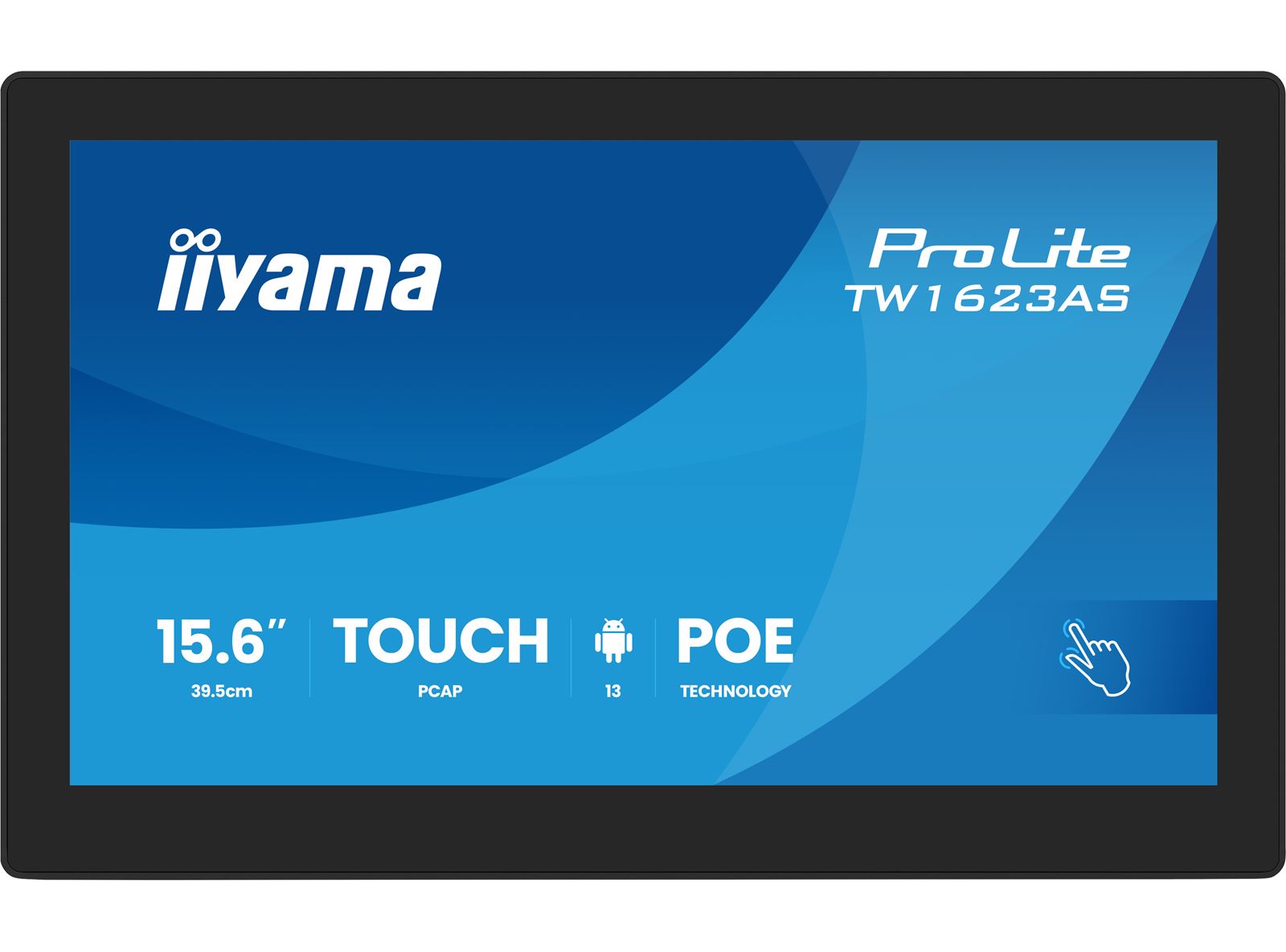

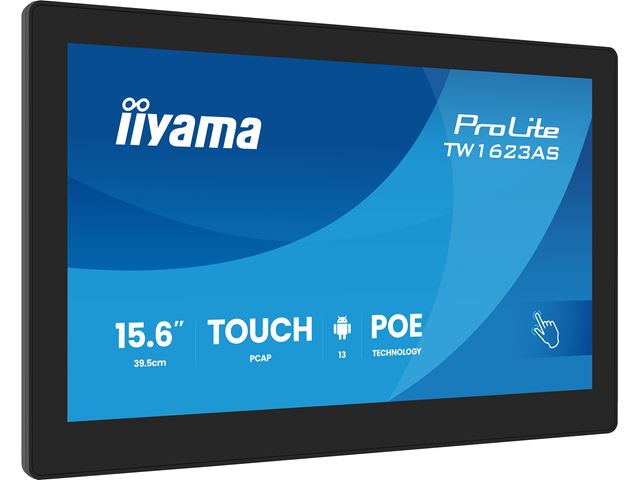

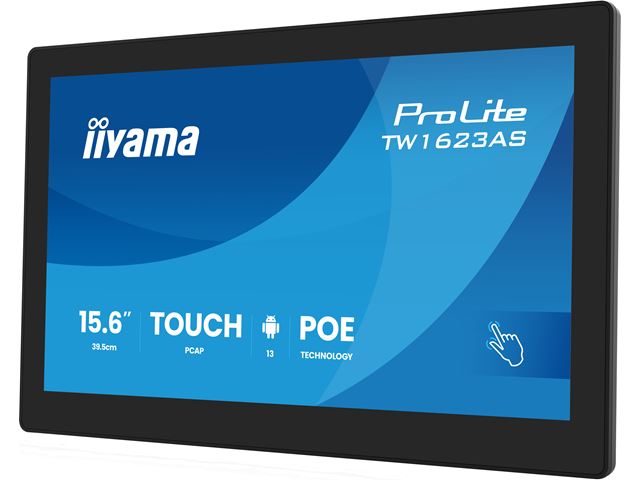

15.6” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage²

The ProLite TW1623AS-B3P is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables.

With a built-in microphone and speakers, the TW1623AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage², iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Technical Information

DISPLAY CHARACTERISTICS

Design	Edge to edge glass
Diagonal	15.6", 39.5cm
Panel	IPS Panel Technology, LED
Native resolution	1920 x 1080 (2 megapixel HD)
Aspect ratio	16:9
Panel brightness	450 cd/m²
Brightness	385 cd/m² with touch
Light transmittance	86%
Static contrast	1000:1 with touch
Response time (GTG)	30ms
Viewing zone	horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85°
Colour support	16.7mln 8bit
Viewable area W x H	344.2 x 193.6mm, 13.5 x 7.6"
Pixel pitch	0.1792mm
Bezel colour and finish	black, matte

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	finger, glove (latex), capacitive stylus
Touch interface	USB

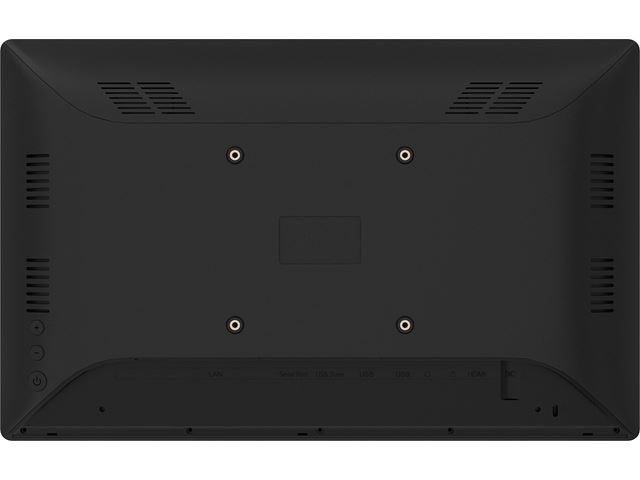

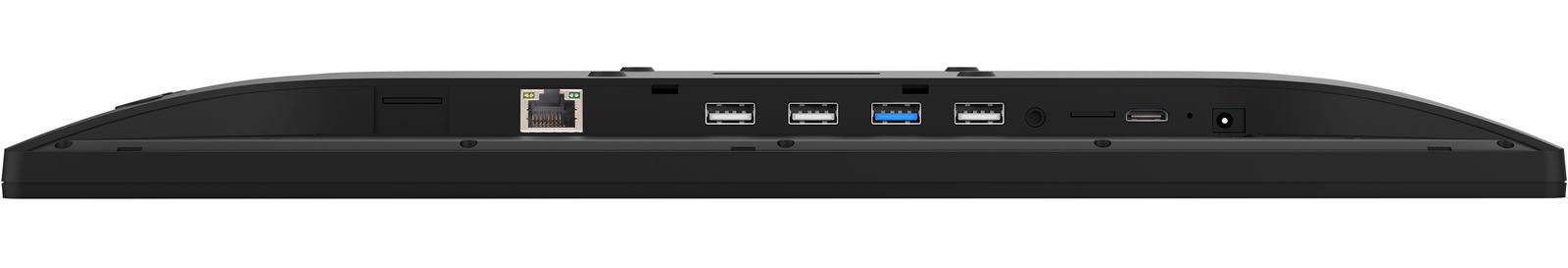

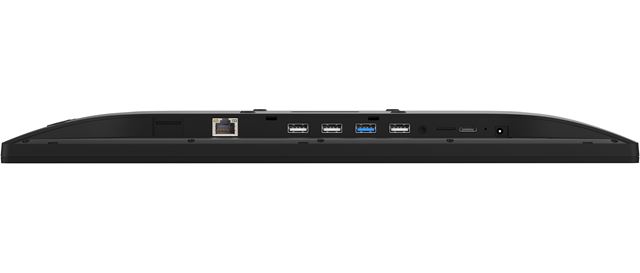

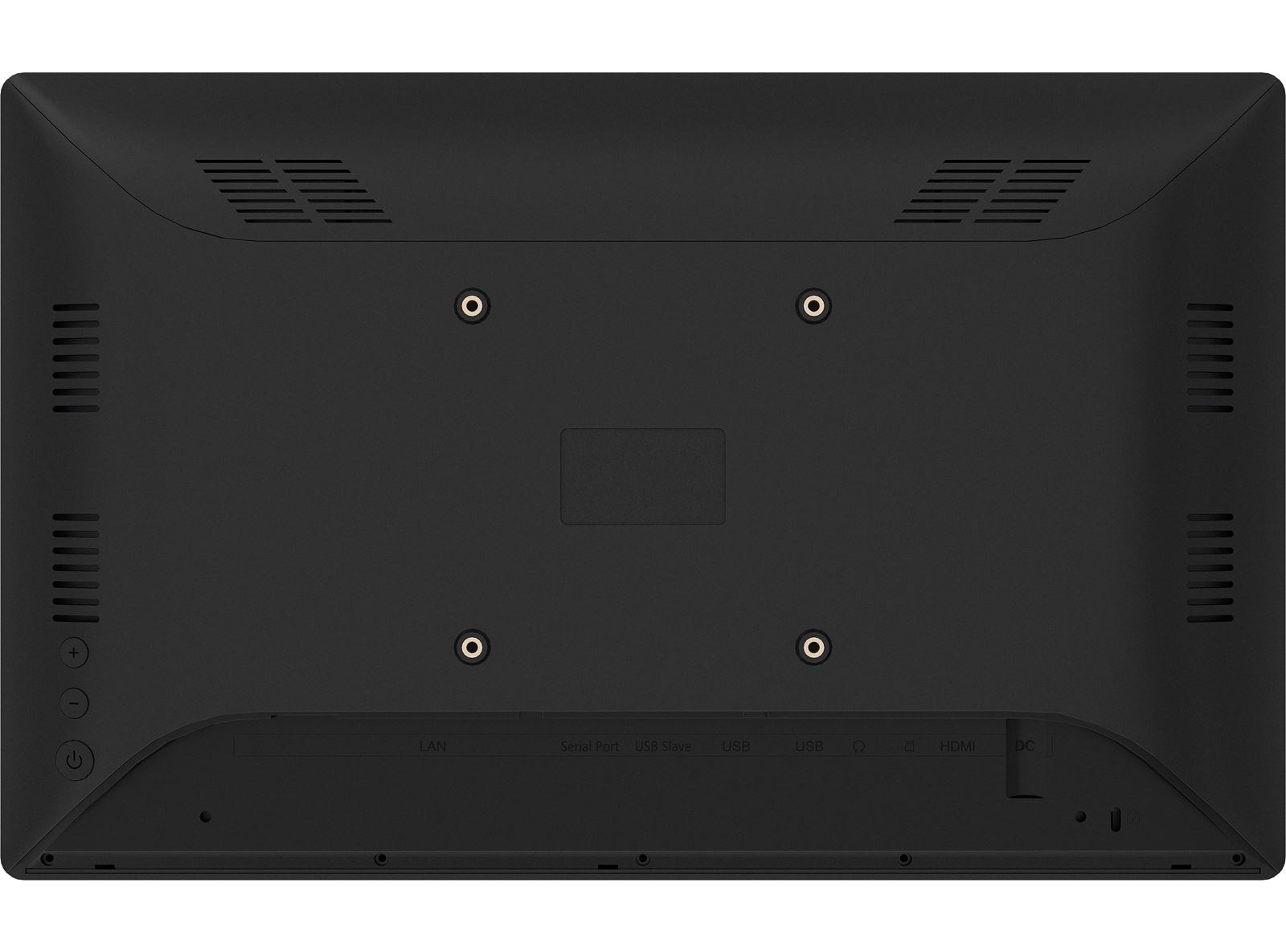

INTERFACES / CONNECTORS / CONTROLS

Digital signal output	HDMI x1 (mini HDMI, 1920x1080 @60Hz)
Audio output	Mini jack x1 Speakers 2 x 2W
HDCP	yes
USB ports	x3
RJ45 (LAN)	x1 (PoE - IEEE802.3at/30W)
Microphone	x1

FEATURES

Integrated software	Android 13
CPU	Rockchip RK3568 Quad-core A55 up to 2.0GHz
GPU	Mali-G52
Storage	32GB eMMC
Memory	4GB LPDDR4X
WiFi	IEEE802.11a//b/g/n/ac
Bluetooth	5.2
Extra	Auto-rotation, SD card slot, anti-fingerprint coating, anti-glare coating, PoE
Kiosk mode	yes
Max. non-stop operating time	24/7
Glass thickness	1.8mm
Glass hardness	6H

GENERAL

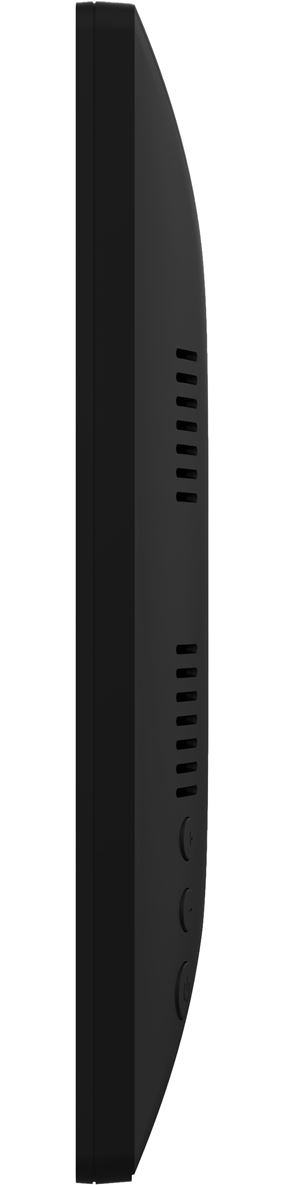

Control buttons	Power switch, volume/ button +, volume/ button -
Applications	Applications: lock application, manage restart time, manage power on/off time, calculator, calendar, Chrome, alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, iiSignage², play audio files, Play store, system peferences, sound recorder, play video

MECHANICAL

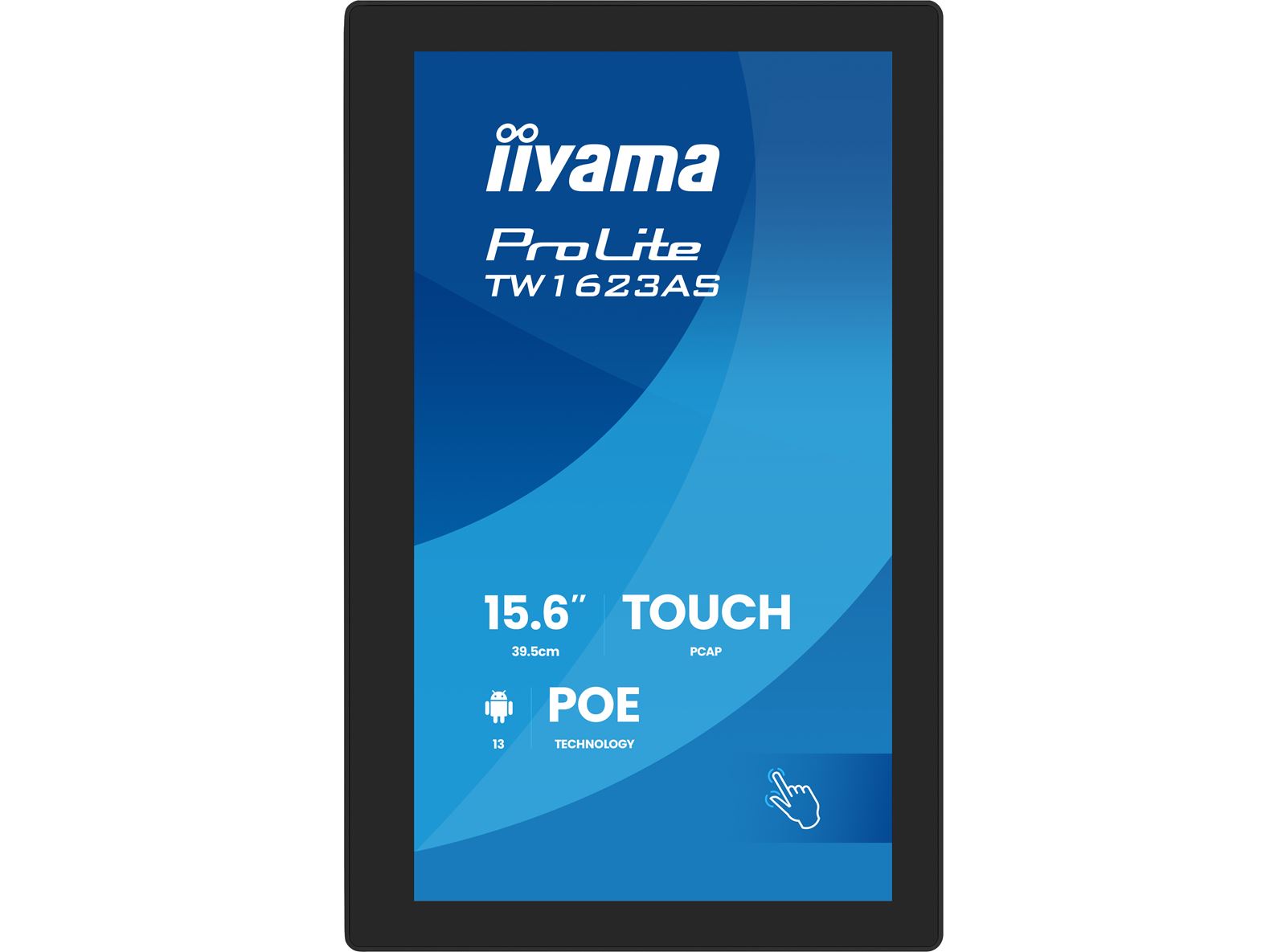

Orientation	landscape, portrait, face-up

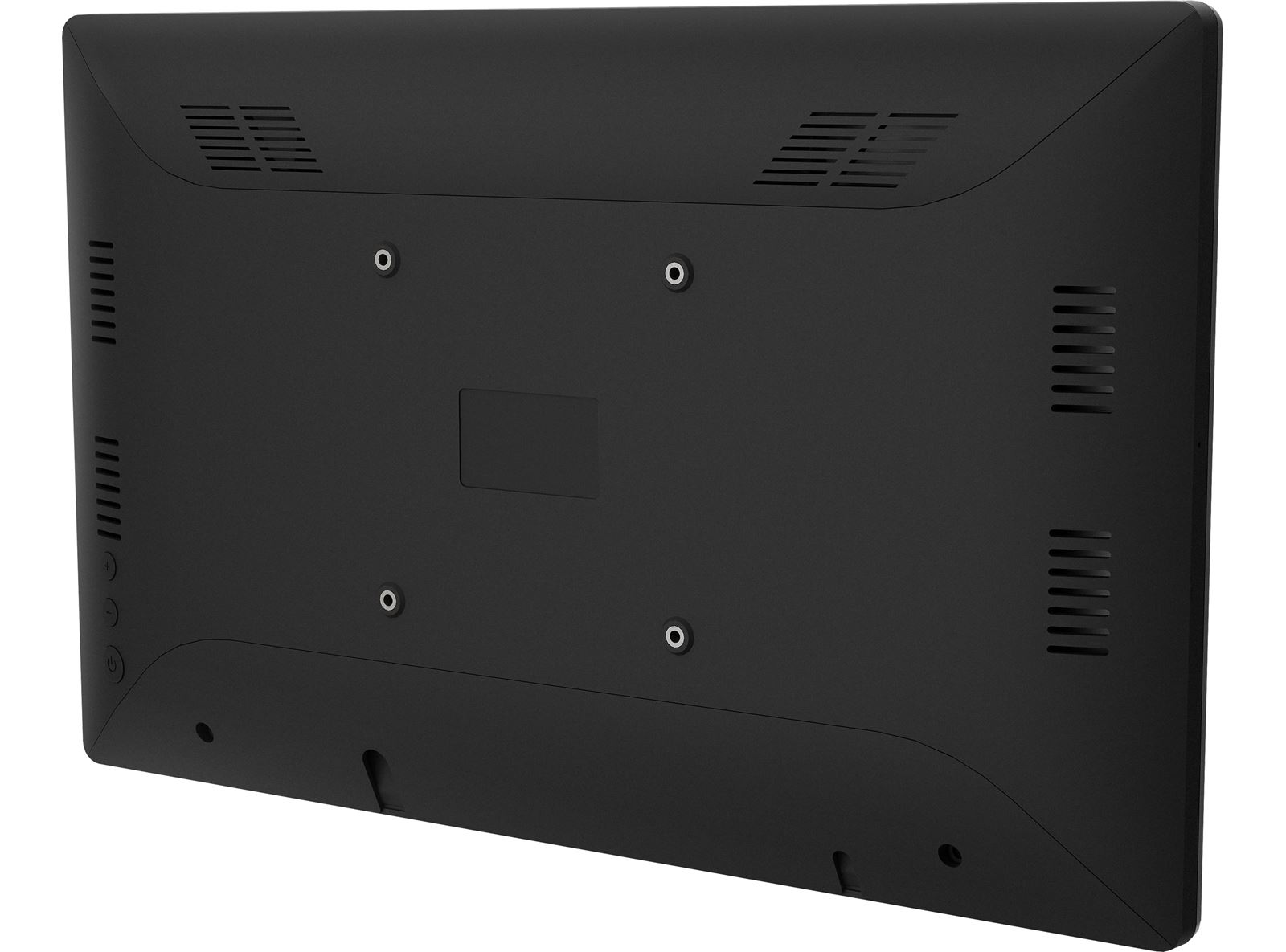

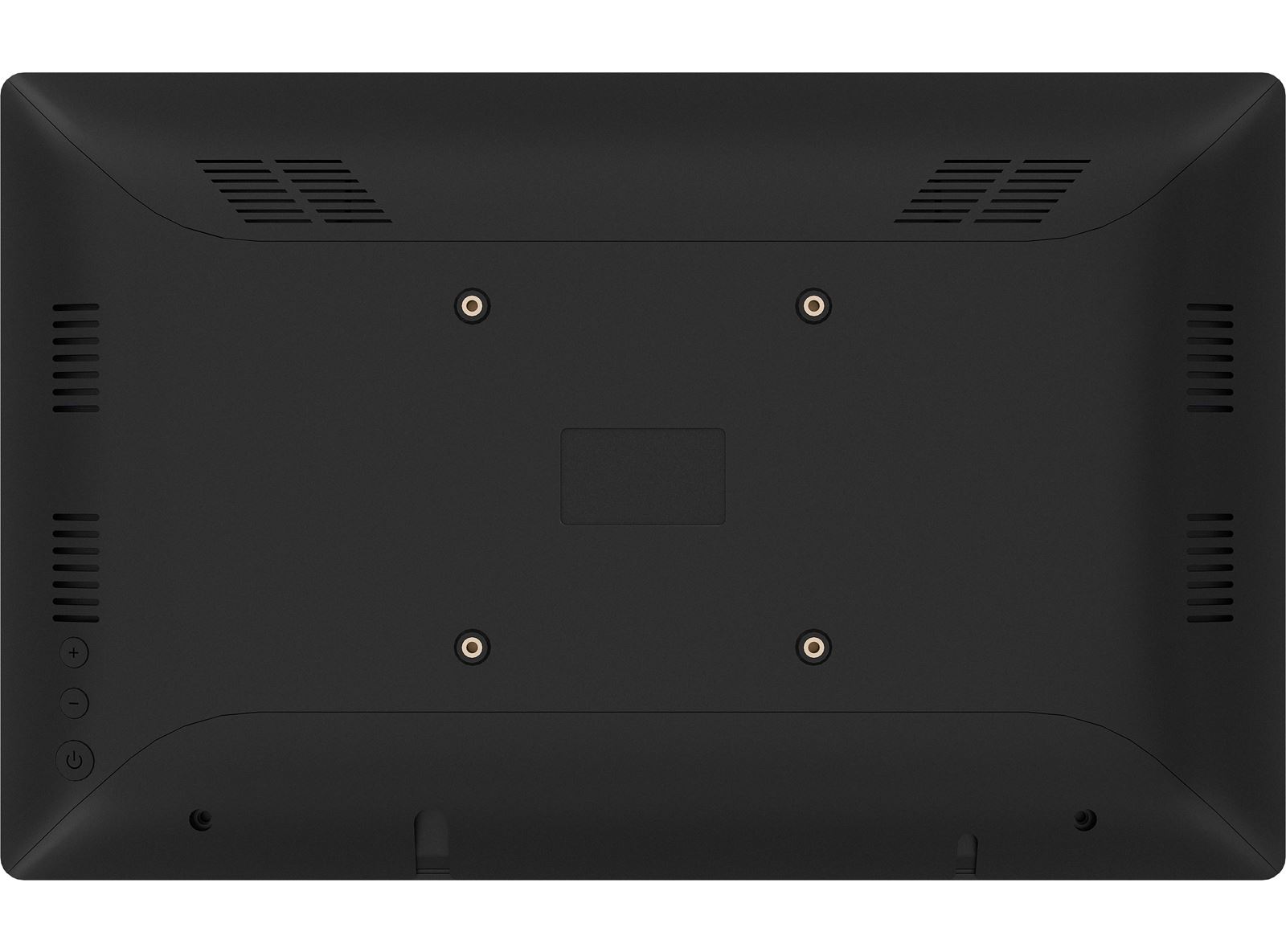

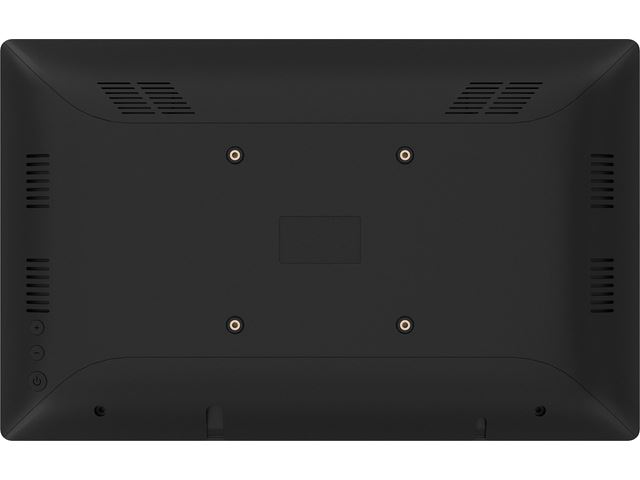

VESA mounting	100 x 100mm
Cable management system	yes

ACCESSORIES INCLUDED

Guides	quick start guide, safety guide
Other	AC adapter, interchangeable plugs (EU/UK)
Cable cover	yes

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	9W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC	above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	387 x 244 x 30,5mm
Box dimensions W x H x D	477 x 298 x 75mm
Weight (without box)	1.5kg
Weight (with box)	2.45kg
EAN code	4948570126934

Features

SPEAKERS AND HEADPHONES

Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset in the headphone connector and enjoy!

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

LAN CONTROL

LAN control enables making adjustments in the display OSD menu through your network (software not included).

IISIGNAGE

With iiSignage, you can easily create, publish and manage your own digital signage content on any iiyama 40-series display from a desktop PC in the same network. Use rich content like video’s and widgets to create highly impactful advertising in minutes and schedule your content across multiple displays to best match your customers' behavior.

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
