iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage²

Name: iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage²
Price: 590.70 GBP
Availability: InStock

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² image 0

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² image 1

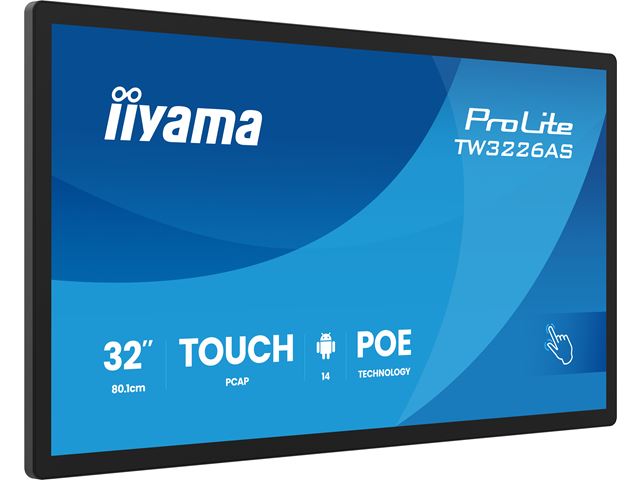

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² image 2

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² image 3

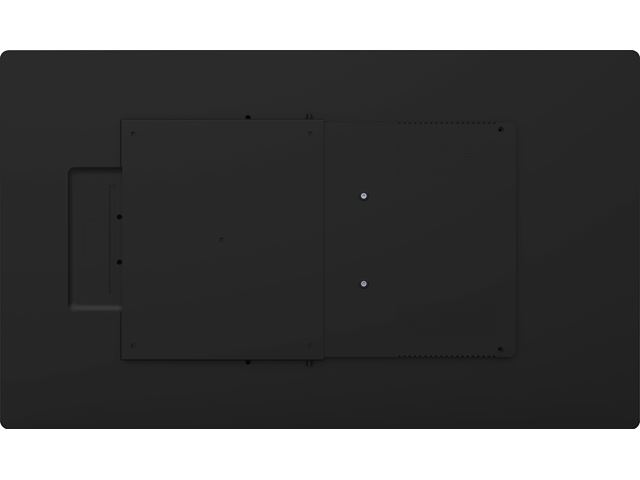

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² image 4

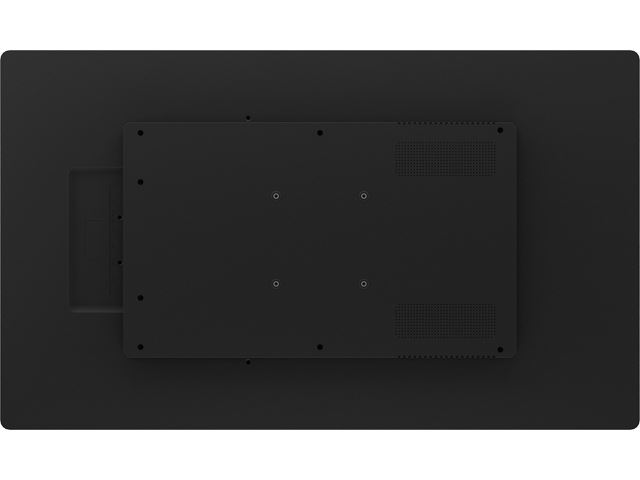

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² image 5

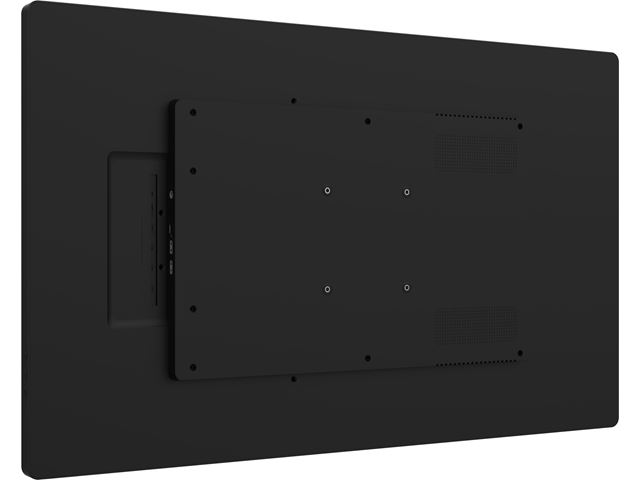

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² image 6

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² image 7

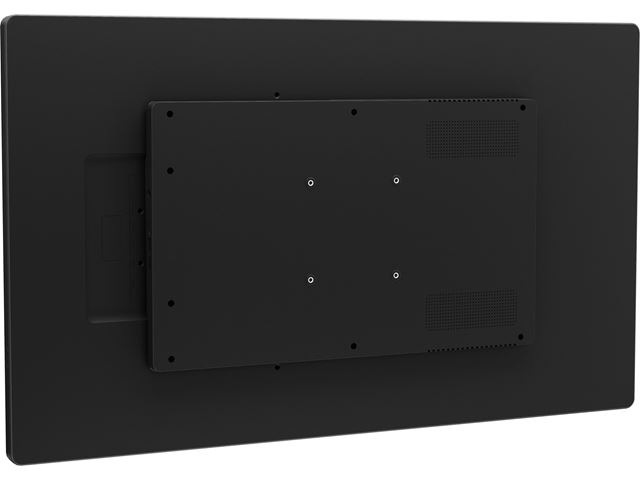

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² image 8

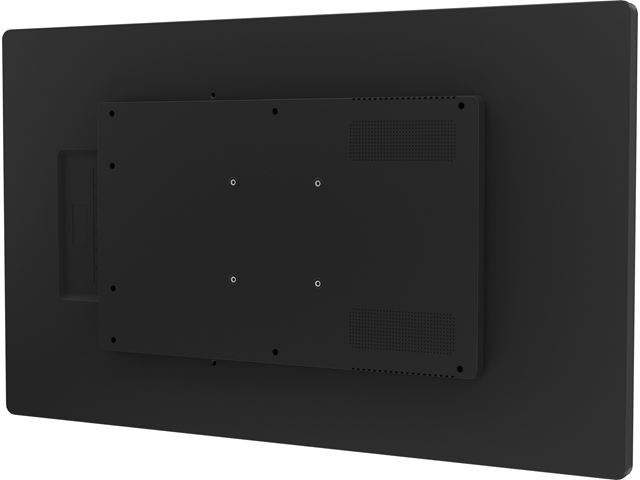

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² image 9

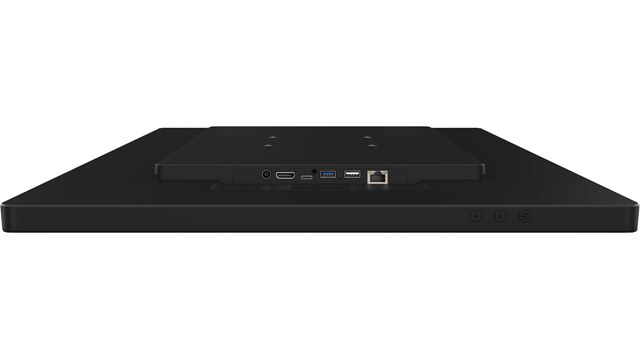

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² image 10

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² image 11

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² thumbnail 0

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² thumbnail 1

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² thumbnail 2

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² thumbnail 3

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² thumbnail 4

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² thumbnail 5

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² thumbnail 6

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² thumbnail 7

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² thumbnail 8

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² thumbnail 9

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² thumbnail 10

iiyama ProLite TW3226AS-B3P, 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² thumbnail 11

£590.70 exc. VAT

£708.84 inc. VAT

Next working day delivery
In stock
Quantity:
Add to Basket

Brand: iiyama

Manufacturer Code: TW3226AS-B3P

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

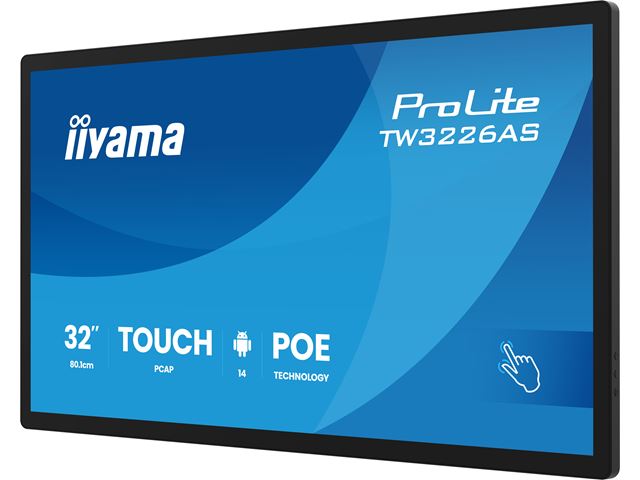

31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage²

The ProLite TW3226AS-B3P is a smart and intuitive 31.5" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables.

With a built-in quad microphone and 5W speakers, the TW3226AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage², iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Technical Information

DISPLAY CHARACTERISTICS

Design	Edge to edge glass
Diagonal	31.5", 80.1cm
Panel	VA
Native resolution	1920 x 1080 (2 megapixel HD)
Aspect ratio	16:9
Panel brightness	500 cd/m²
Brightness	430 cd/m² with touch
Static contrast	4000:1 with touch
Response time (GTG)	8ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.7mln 8bit
Viewable area W x H	698.4 x 392.8mm, 27.4 x 15,4"
Pixel pitch	0.3637mm
Bezel colour and finish	black, matte

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	finger, glove (latex), capacitive stylus
Touch interface	USB
Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

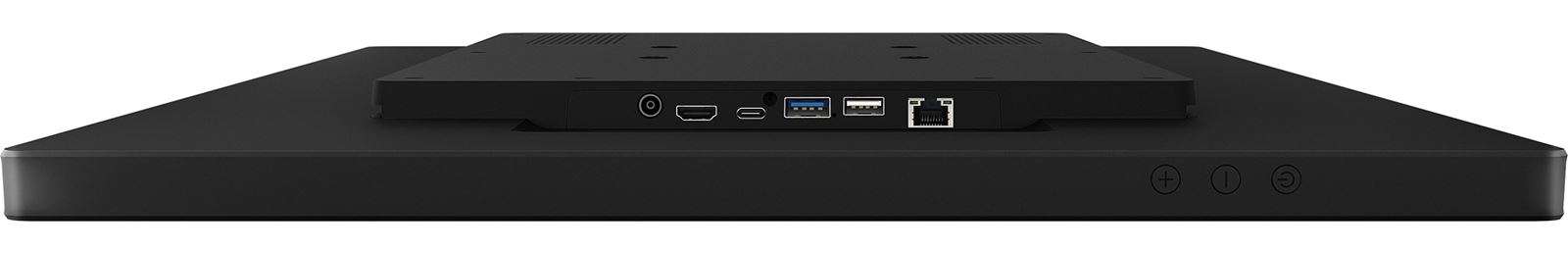

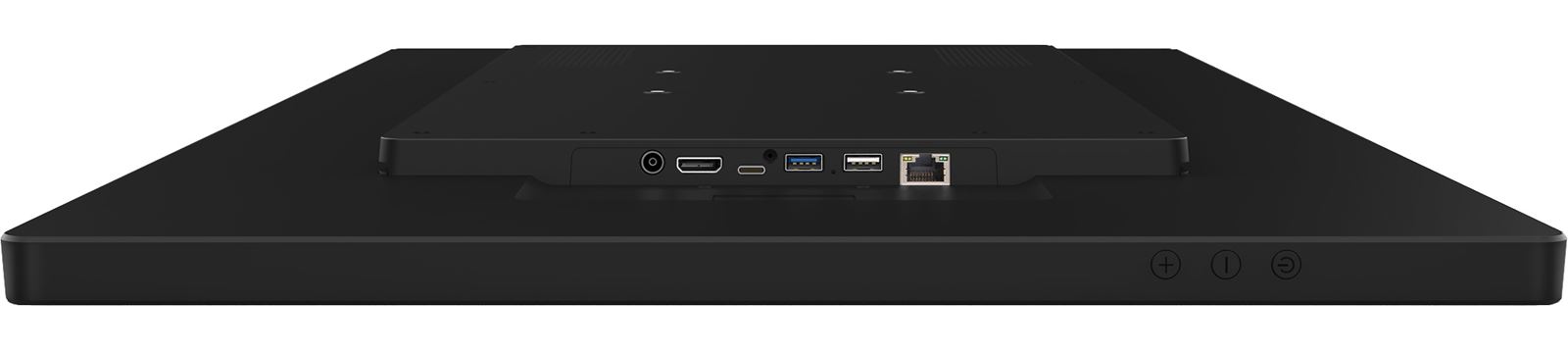

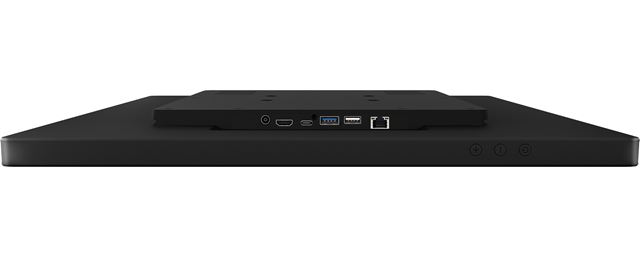

INTERFACES / CONNECTORS / CONTROLS

Digital signal input	HDMI x1 (HDMI, 1920x1080 @60Hz)
Audio output	Mini jack x1 Speakers 2 x 5W
HDCP	yes
USB ports	x3 (1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 1x 2.0 (DC5V, 500mA), 1x USB-C (DC5V, 900mA (video output only, touch board function))
RJ45 (LAN)	x1 (PoE - IEEE802.3bt/85W)
Microphone	x1 (Standard Quad Microphone)

FEATURES

Integrated software	Android 14
CPU	Rockchip RK3576 Octa-core A724 + A534 up to 2.2GHz
GPU	ARM-G52 MC3
Storage	32GB eMMC
Memory	4GB LPDDR4X
WiFi	IEEE802.11ax/ac/a/b/g/n
Bluetooth	5.3
Extra	Auto-rotation, anti-glare coating, PoE
Kiosk mode	yes
Max. non-stop operating time	24/7
Glass hardness	3H

GENERAL

Control buttons	Power switch, volume/ button +, volume/ button -
Applications	Applications: lock application, manage restart time, manage power on/off time, calculator, calendar, Chrome, alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, iiSignage², play audio files, Play store, system peferences, sound recorder, play video
Flicker free	yes

MECHANICAL

Orientation	landscape, portrait, face-up

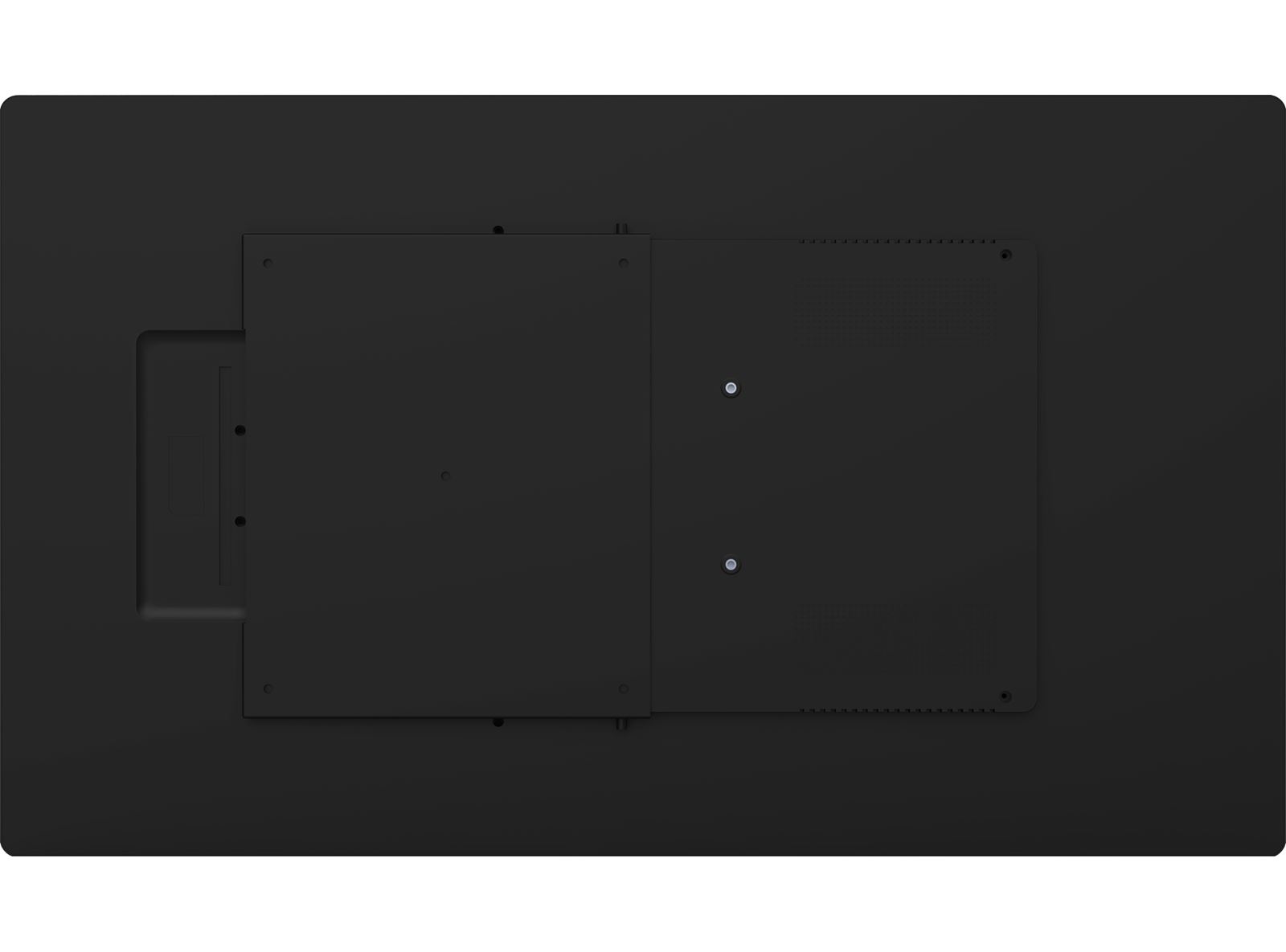

VESA mounting	100 x 100mm
Cable management system	yes
MTBF	50000 hours

ACCESSORIES INCLUDED

Cables	power
Guides	quick start guide, safety guide
Other	AC adapter, wall mount (cover, cover screws, plugs) + screws, eva pads, spirit level
Cable cover	yes

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	36.34W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC	above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	735 x 436 x 35mm
Box dimensions W x H x D	833 x 508 x 126mm
Weight (without box)	7.7kg
Weight (with box)	12.4kg
EAN code	4948570125708

Features

FULL HD

With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.

LAN CONTROL

LAN control enables making adjustments in the display OSD menu through your network (software not included).

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

VA MATRIX

VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
