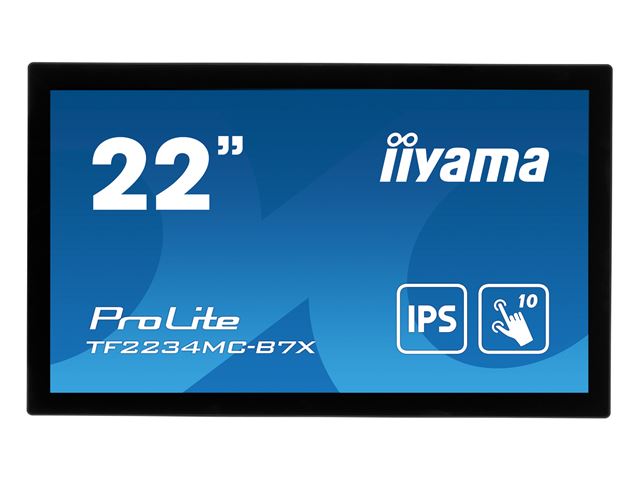

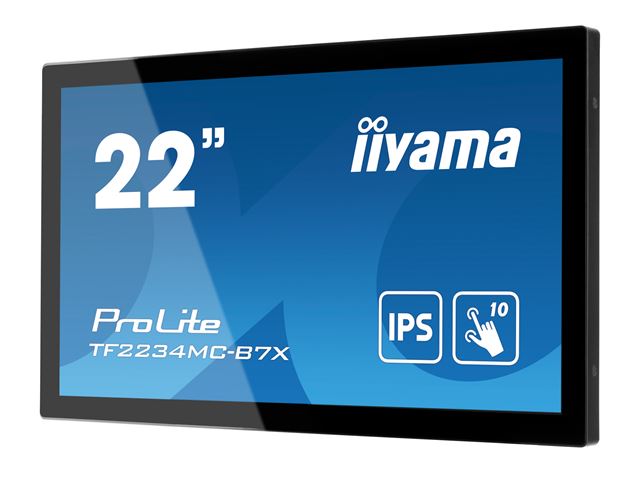

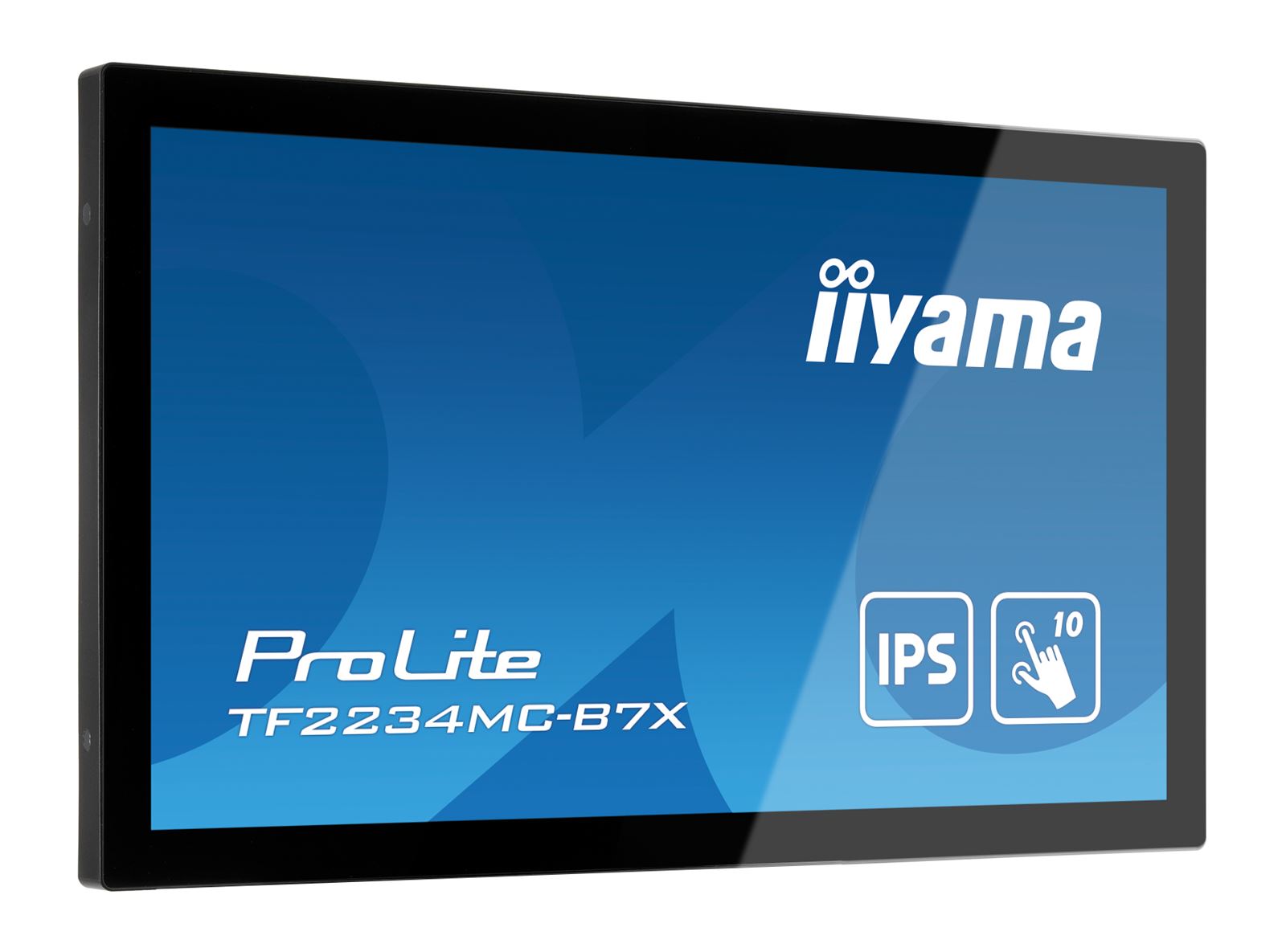

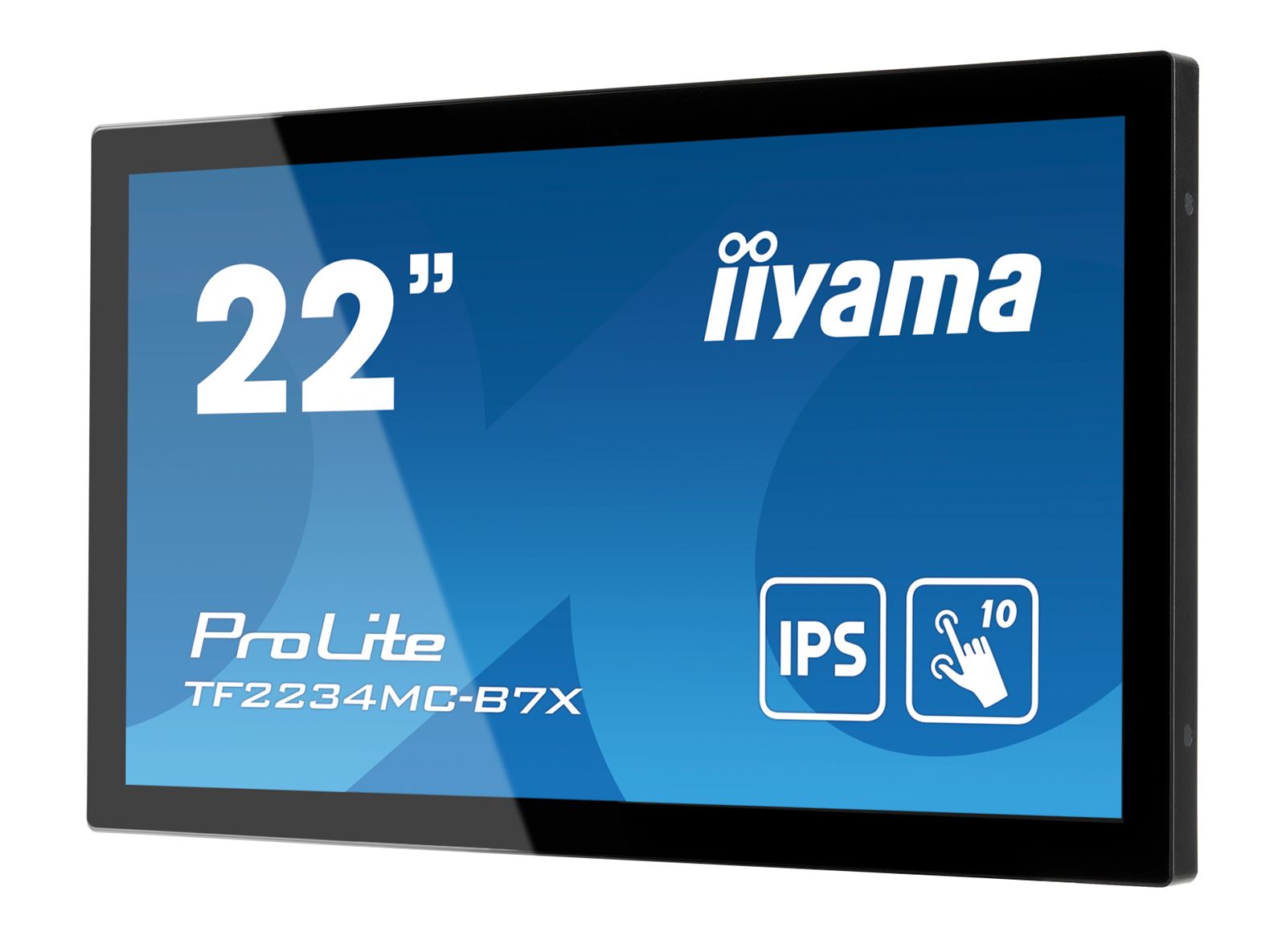

iiyama ProLite monitor TF2234MC-B7X 22", PCap touch through glass, 10pt touch, HDMI, DP, 16:9, IPS, Scratch resistive, Anti-fingerprint coating

£360.64 exc. VAT
£432.77 inc. VAT

Brand: iiyama

Manufacturer Code: TF2234MC-B7X

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

22" 10pt touch Open Frame monitor with IPS panel and touch through glass function

The ProLite TF2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail.

Technical Information

DISPLAY CHARACTERISTICS

Design Open Frame
Diagonal 21.5", 54.6cm
Panel IPS LED
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16:9
Panel brightness 350 cd/m²
Brightness 305 cd/m² with touch
Light transmittance 87%
Static contrast 1 000:1 with touch
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln
Horizontal Sync 30 - 84kHz
Viewable area W x H 476.0 x 267.7mm, 18.7 x 10.5"
Pixel pitch 0.247mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
HDCP yes

FEATURES

Extra anti-fingerprint coating, touch through-glass
Glass thickness 1.5mm
Glass hardness 7H
Water and dust protection IP65 (front)

GENERAL

OSD languages EN, DE, FR, ES, IT, RU, JP, CZ, PL

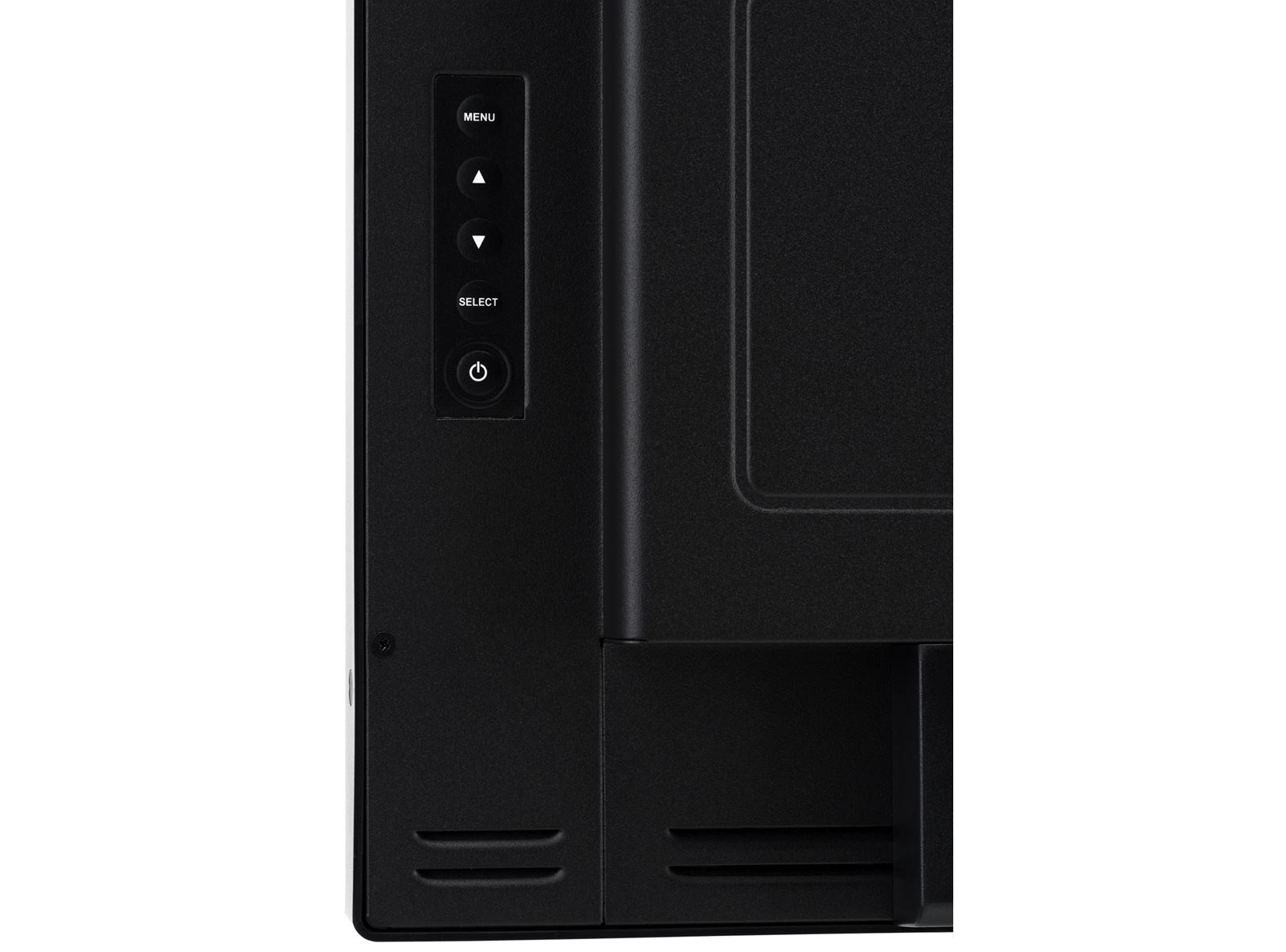

Control buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B

MECHANICAL

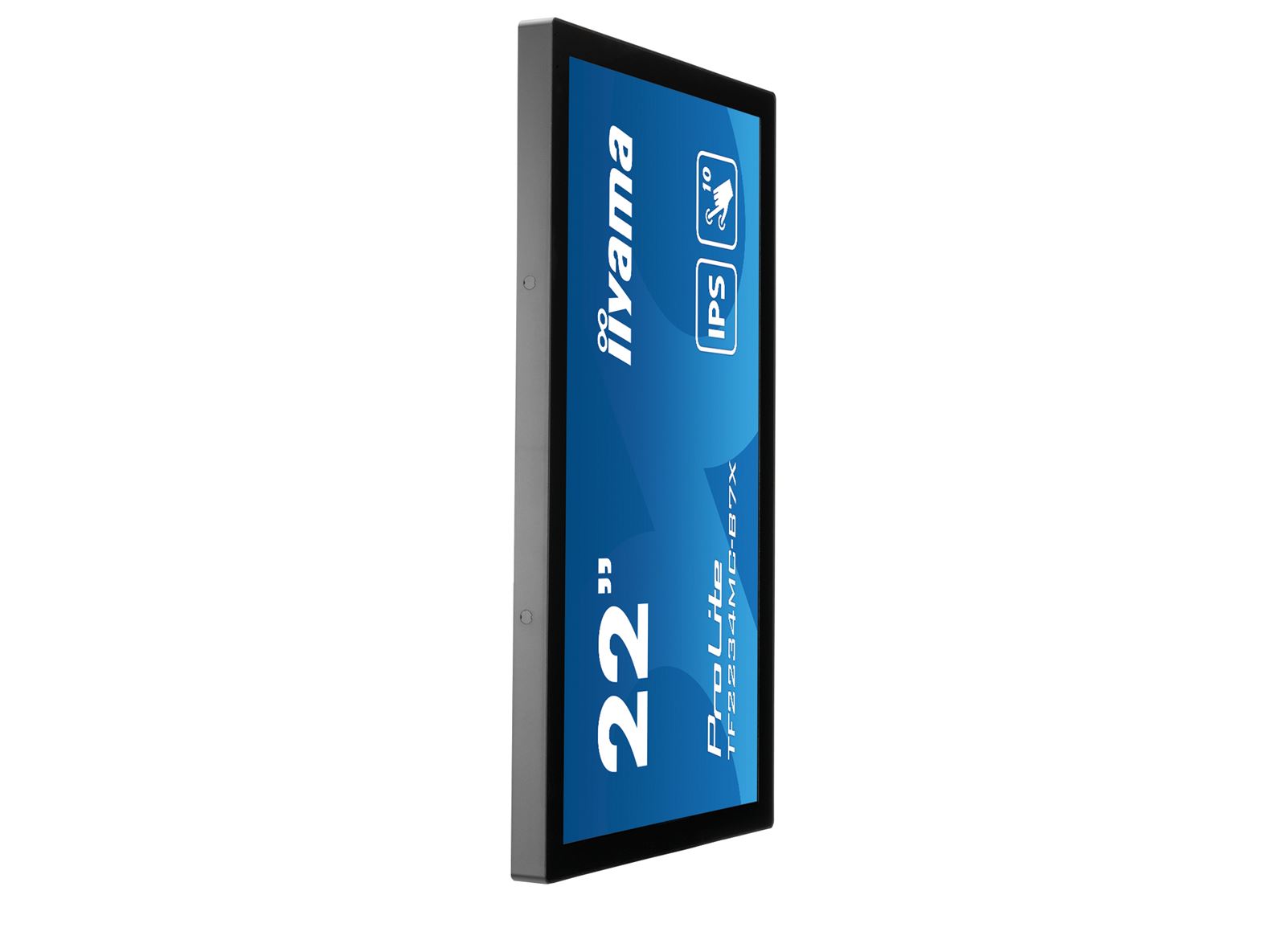

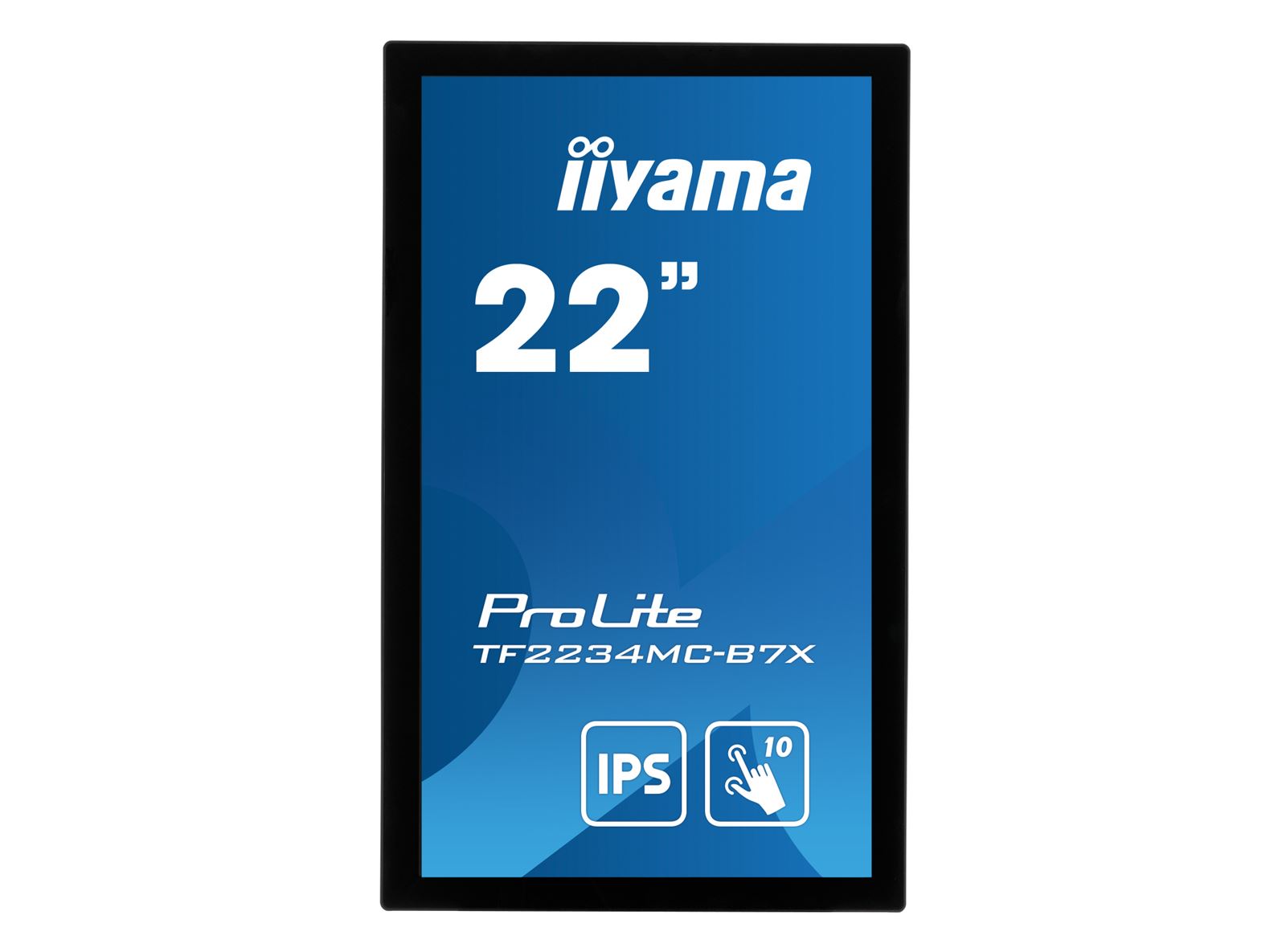

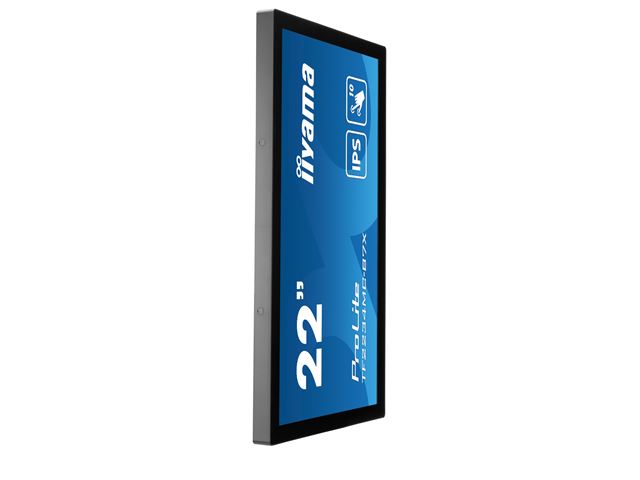

Orientation landscape, portrait, face-up

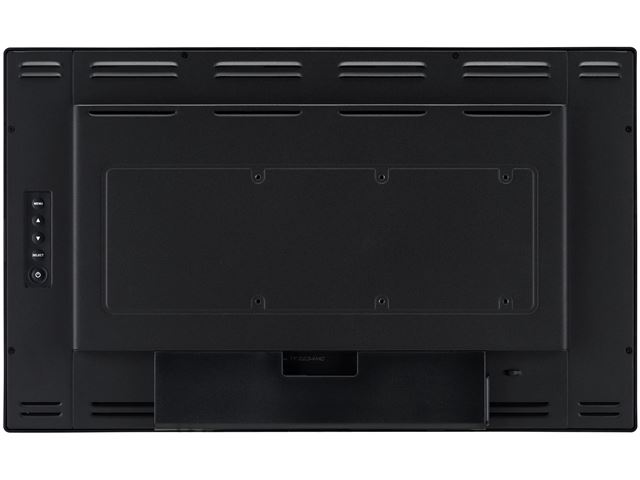

VESA mounting 100 x 100mm

ACCESSORIES INCLUDED

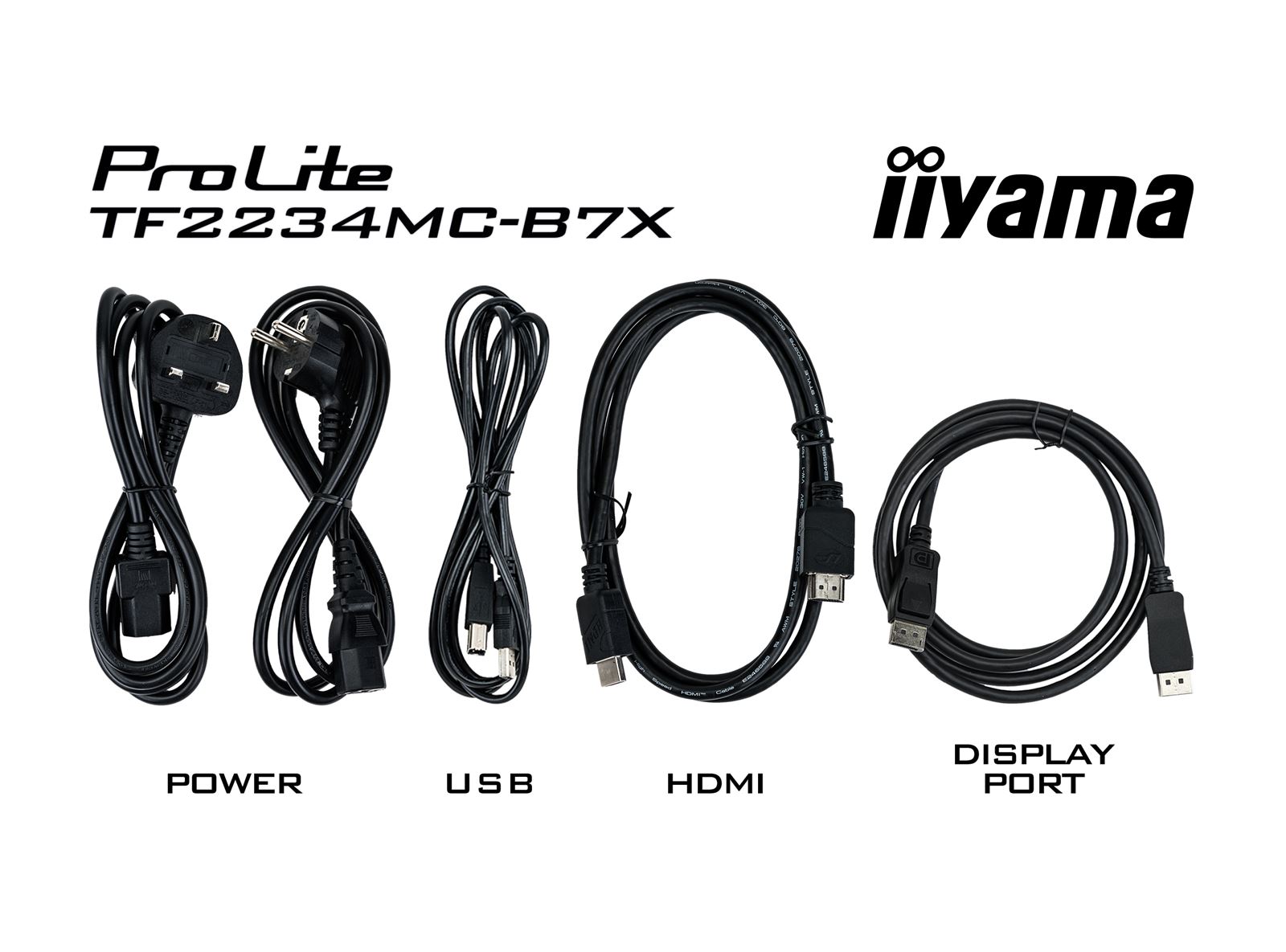

Cables power, USB, HDMI, DP
Guides quick start guide, safety guide
Other AC adapter
Cable cover yes

POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 18W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369) F
Other REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 517.5 x 313.5 x 46mm
Box dimensions W x H x D 610 x 405 x 160mm
Pallet volume 48pcs
Pallet dimensions W x H x D 1090 x 1090 x 1927mm
Weight (without box) 4.4kg
Weight (with box) 6.8kg
EAN code 4948570118366
Features

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

PROTECTIVE GLASS

The toughened safety glass fitted behind the bezel at 8H hardness rating is capable of resisting above normal impacts to the display making this LCD the ideal choice for Education, Retail and Industrial applications.

PROTECTIVE GLASS

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SCRATCH RESISTANCE
