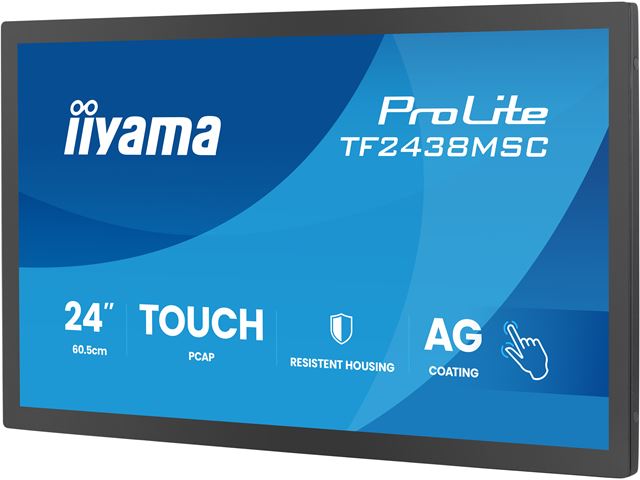

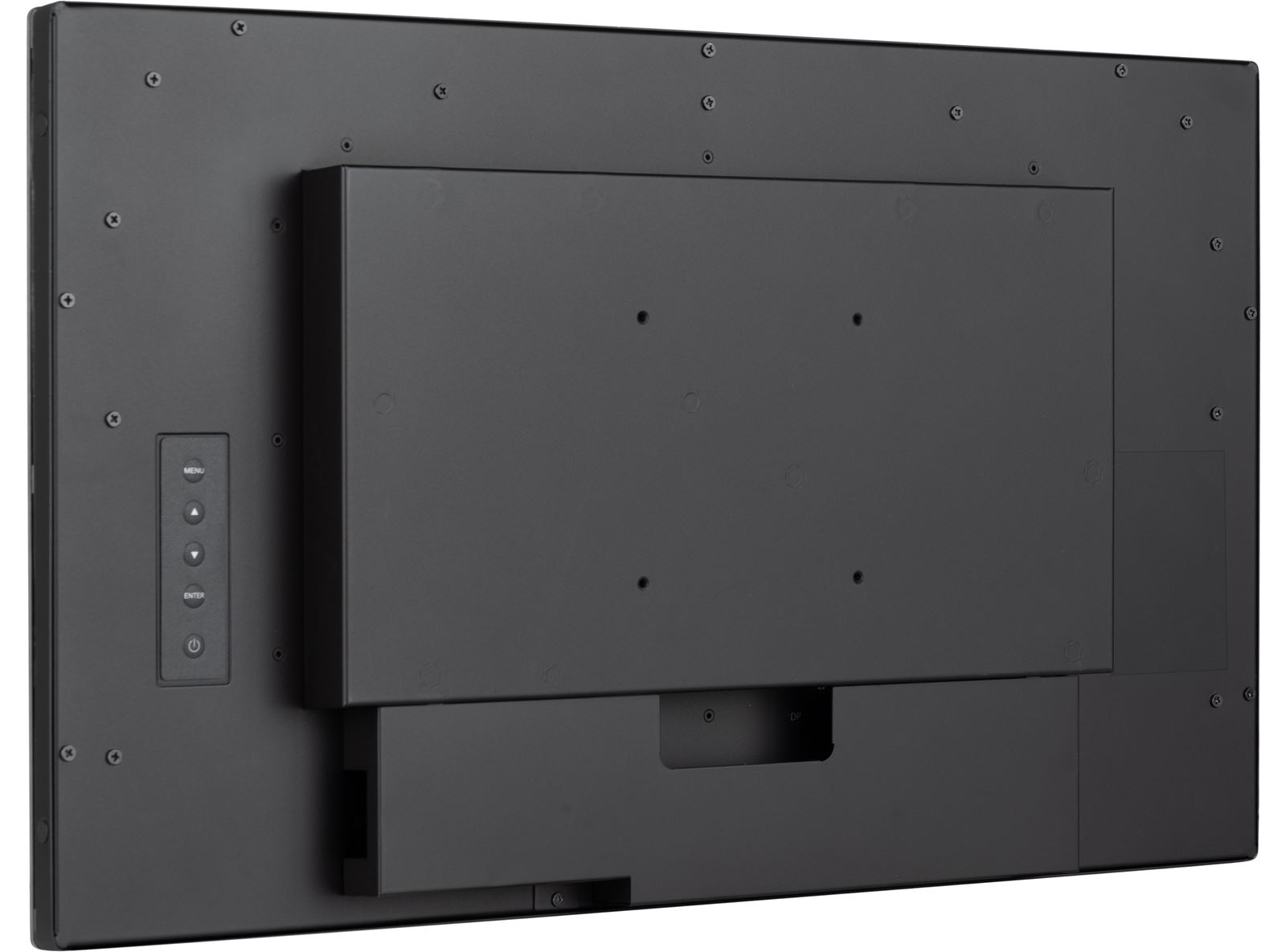

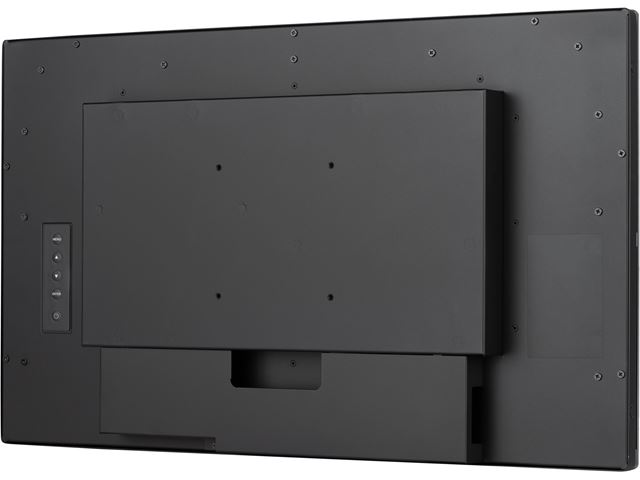

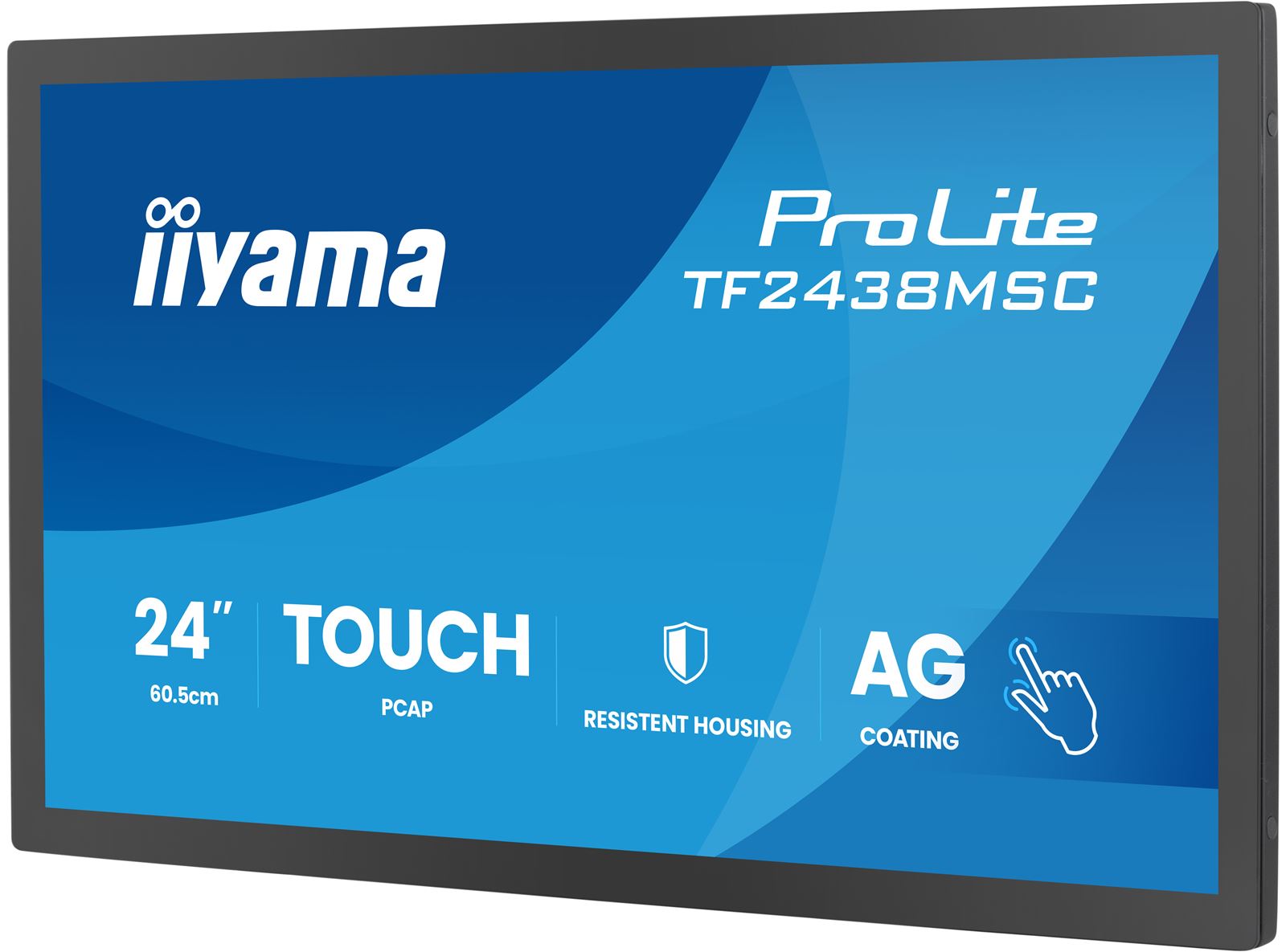

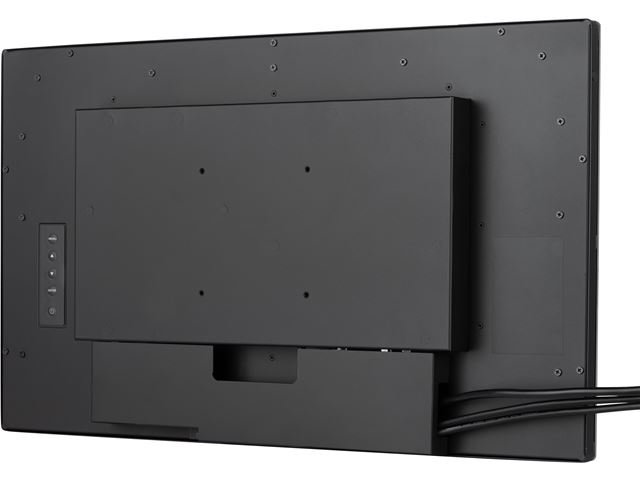

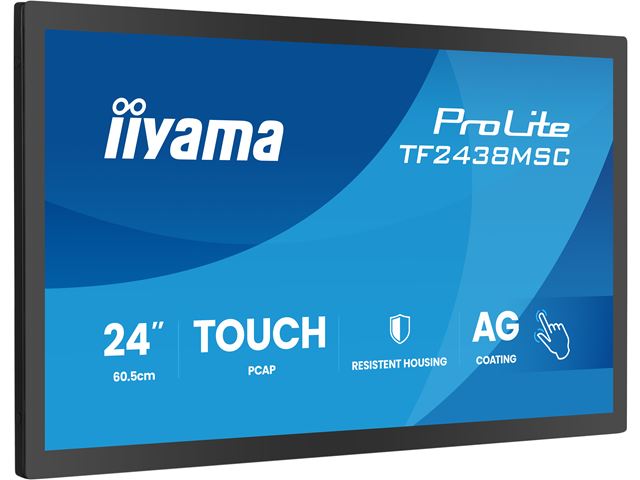

iiyama ProLite monitor TF2438MSC-B2 Semi-Outdoor 24", Optical bonded PCap, edge to edge glass, 10pt touch, Anti-glare, HDMI, DP, IPS, Scratch resistive, Anti-fingerprint coating

£360.64 exc. VAT
£432.77 inc. VAT

Brand: iiyama

Manufacturer Code: TF2438MSC-B2

Warranty: 2 years pick-up, repair and return (plus 1 free year extra)

Product Description

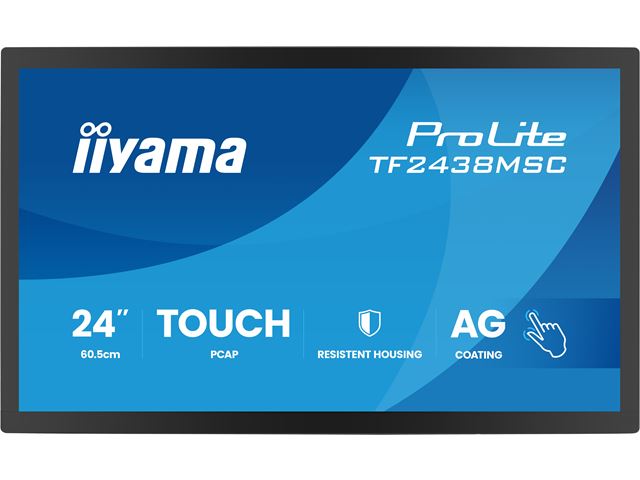

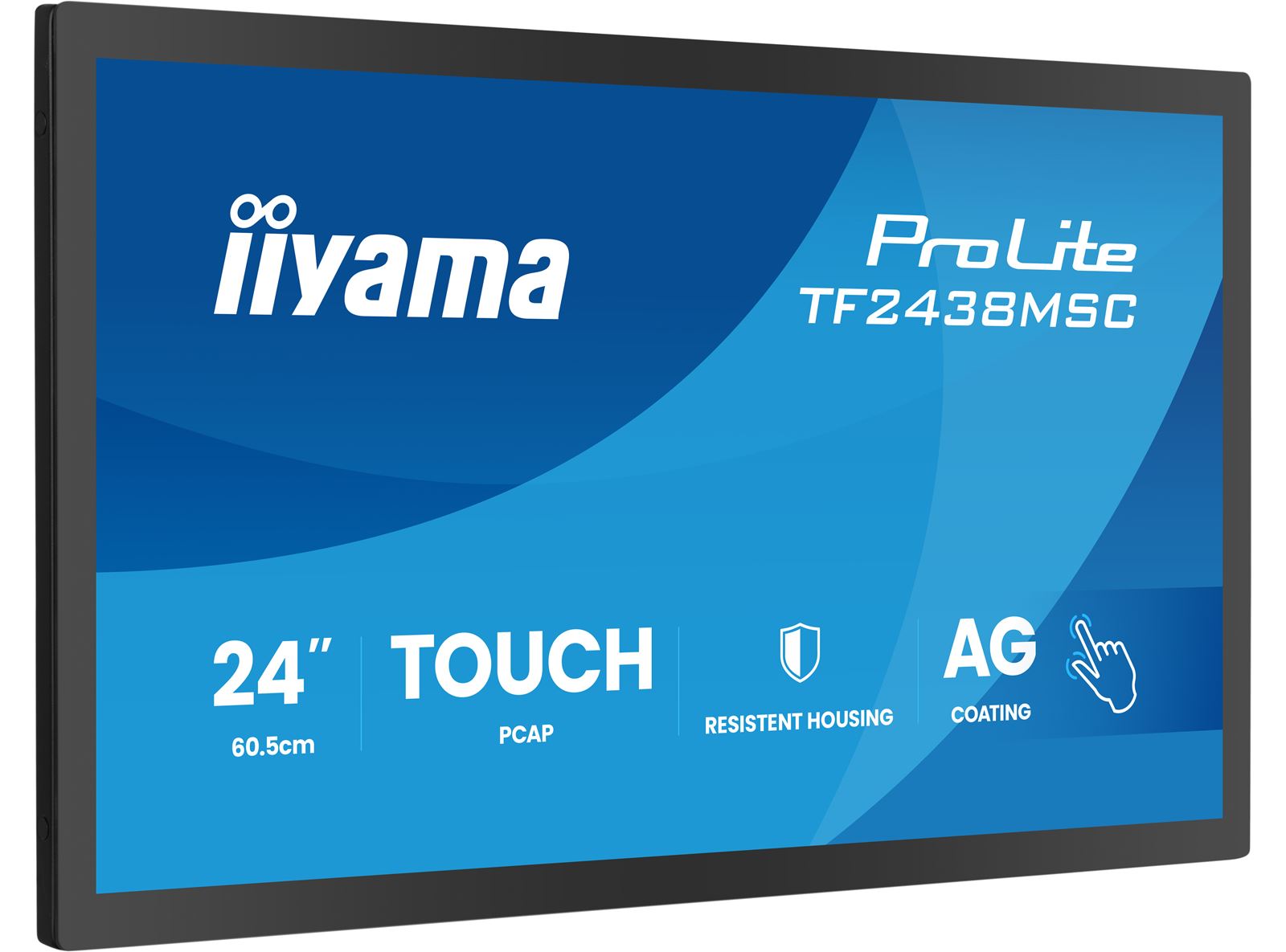

24” DeepContrast PCAP+ 10-point Open Frame touchscreen monitor with robust metal housing for demanding environments

The ProLite TF2438MSC-B2 is a robust and highly responsive 24" Full HD open frame touchscreen monitor designed for professional integration in demanding commercial and industrial environments. The IPS panel delivers sharp detail, accurate colours and wide viewing angles, ensuring excellent visibility whether installed at service counters, kiosks, control points or customer-facing systems.

Featuring DeepContrast PCAP+ 10-point touch technology with optical bonding, the screen provides smooth, precise interaction with reduced reflections for improved readability in bright environments. The edge-to-edge glass is protected with a scratch-resistant 7H surface and anti-fingerprint coating, helping maintain a clean, professional appearance even under heavy daily use. With IPX1 protection against humidity and dripping water, the display offers additional reliability in busy or semi-exposed locations.

Built with a durable metal housing, the TF2438MSC-B2 is engineered for long-term operation and seamless integration into enclosures, kiosks and custom installations. Flexible connectivity, integrated speakers and support for landscape, portrait and face-up orientations provide maximum installation freedom across a wide range of applications including retail, POS, interactive signage, automation systems and industrial environments. A dependable touchscreen solution designed to perform where reliability, durability and precision matter most.

Technical Information

 DISPLAY CHARACTERISTICS

Design Edge to edge glass, Open Frame
Diagonal 23.8", 60.5cm
Panel IPS
Native resolution 1920 x 1080 @120Hz (2.1 megapixel Full HD)
Aspect ratio 16:9
Panel brightness 600 cd/m²
Brightness 525 cd/m² with touch
Light transmittance 87%
Static contrast 1300:1 with touch
Response time (GTG) 5ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln 8bit
Horizontal Sync 30 - 138kHz
Viewable area W x H 527 x 296.5mm, 20.7 x 11.7"
Bezel width (sides, top, bottom) 17.25mm, 20.3mm, 20.3mm
Pixel pitch 0.275mm
Bezel colour and finish black, matte

 TOUCH

Touch technology DeepContrast-PCAP+
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

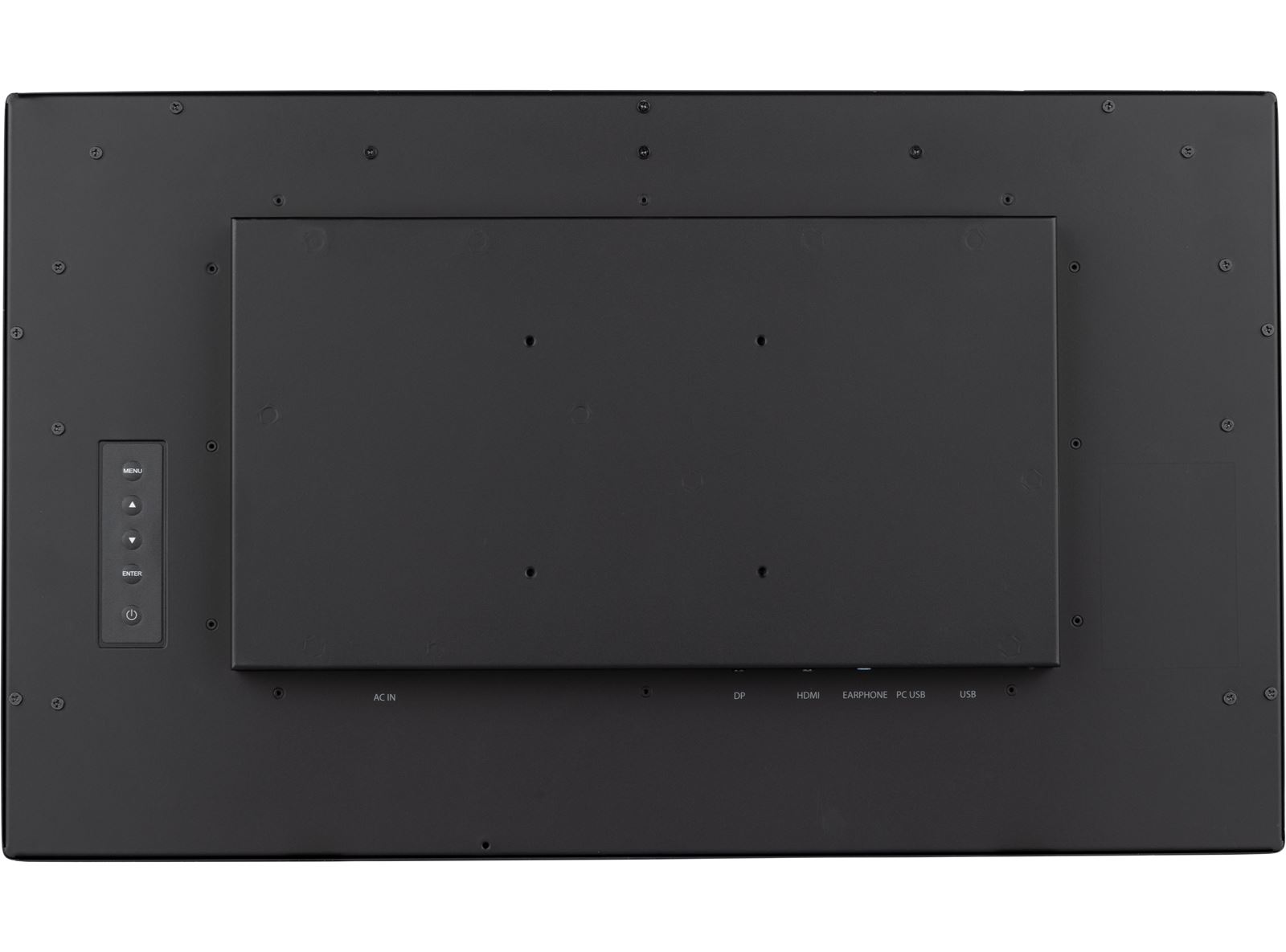

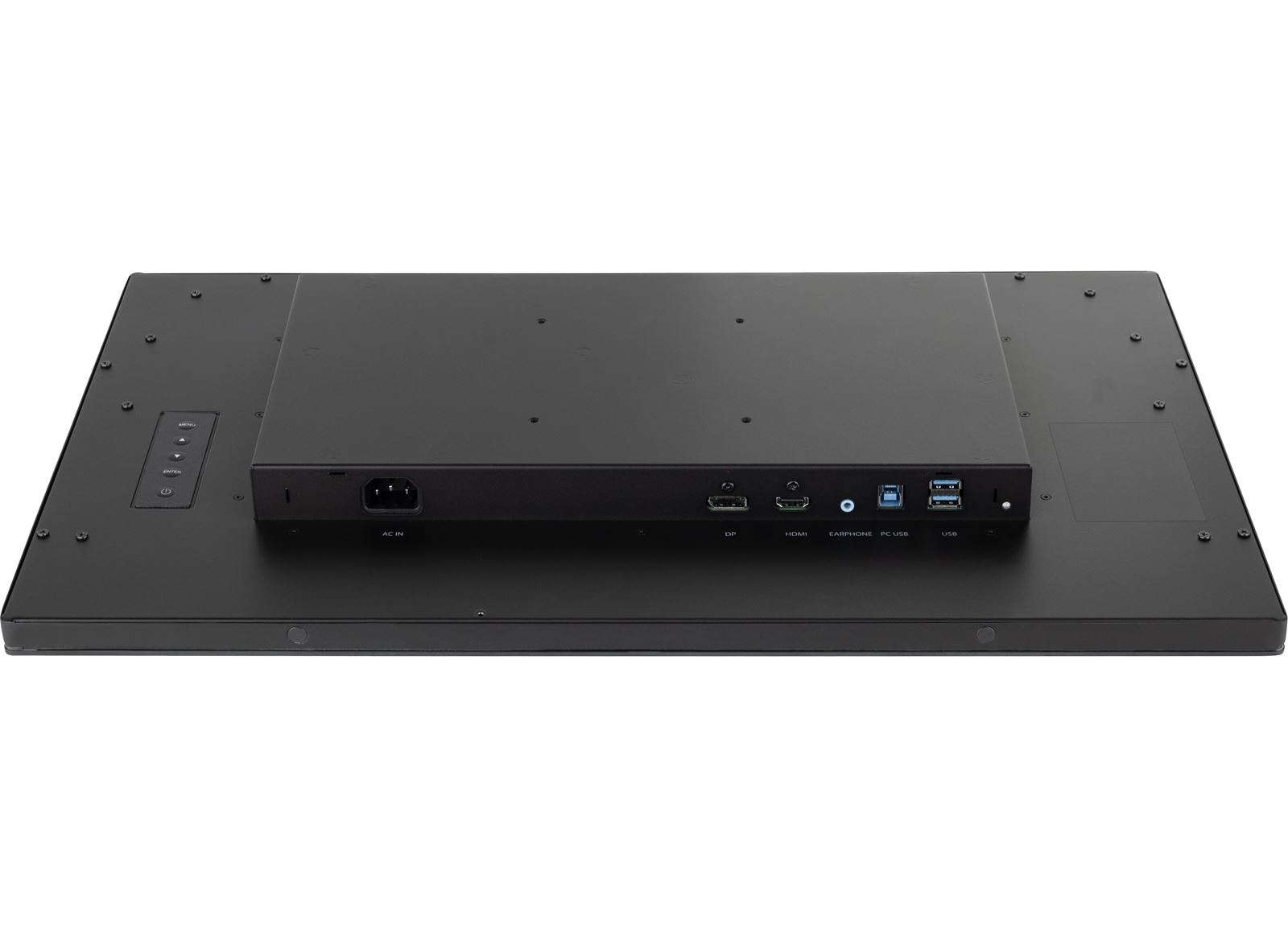

 INTERFACES / CONNECTORS / CONTROLS

Digital signal input HDMI x1
DisplayPort x1
Audio output Mini jack x1
Speakers 2 x 2W
HDCP yes
USB HUB x2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA))

 FEATURES

Extra DeepContrast PCAP+, metal housing, anti fingerprint coating, waterproof Touch function
Kiosk mode yes
Glass thickness 3.6mm
Glass hardness 7H
60950 Ball drop test yes
Water and dust protection IP1X (front)
Housing (bezel) metal
OSD key lock yes

 GENERAL

OSD languages EN, DE, FR, ES, IT, PT, RU, JP, NL, PL

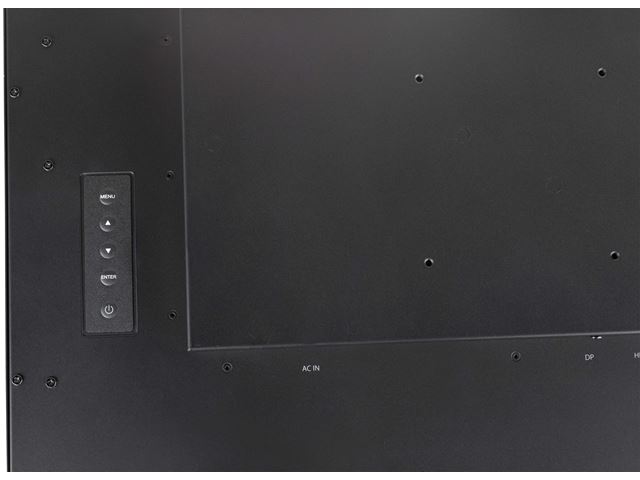

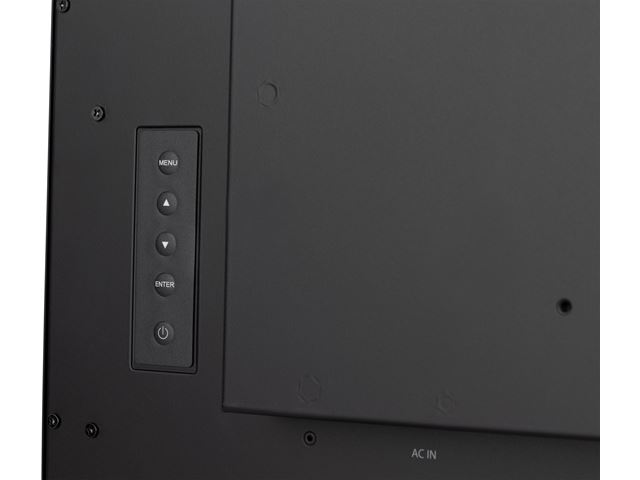

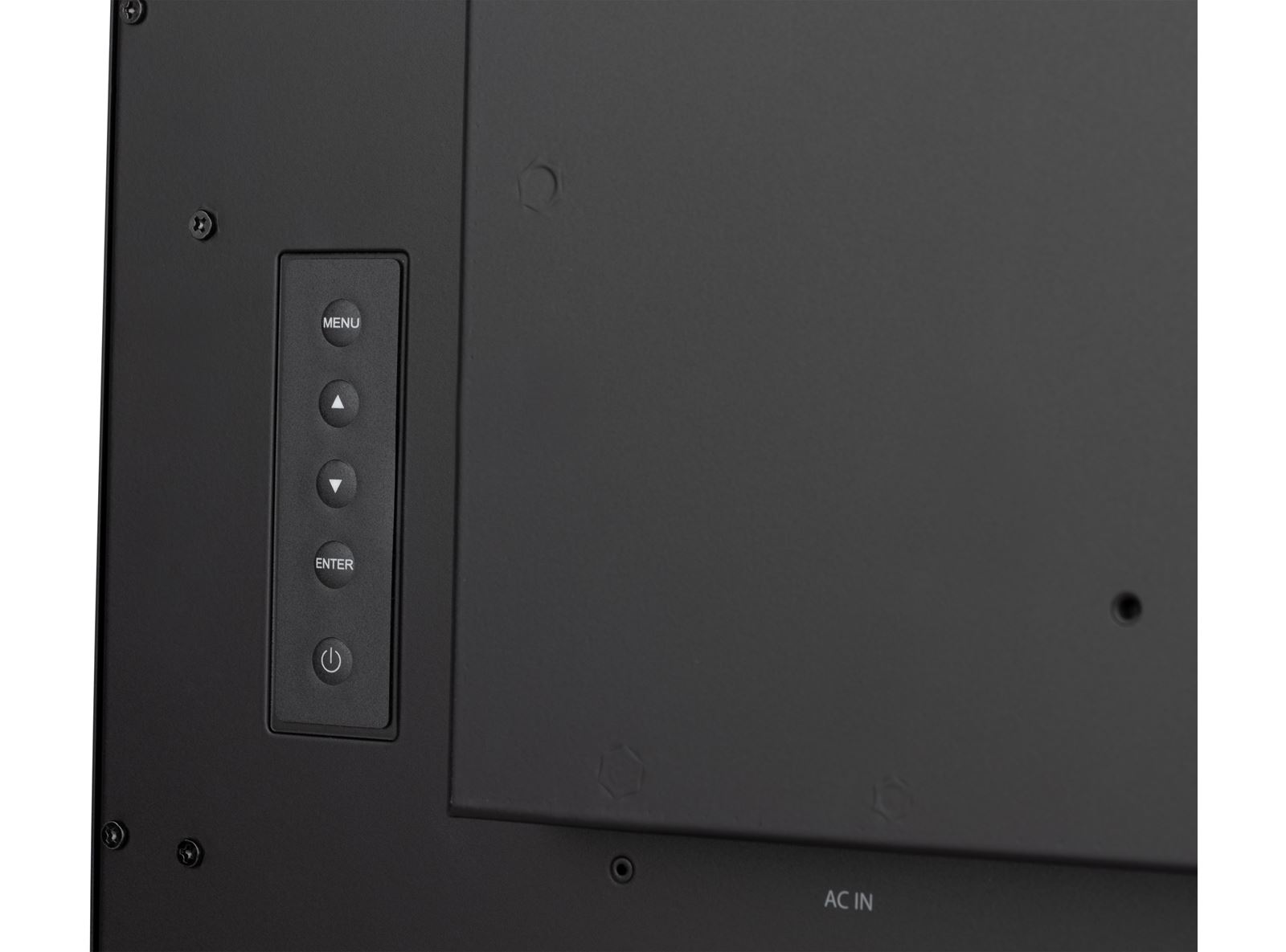

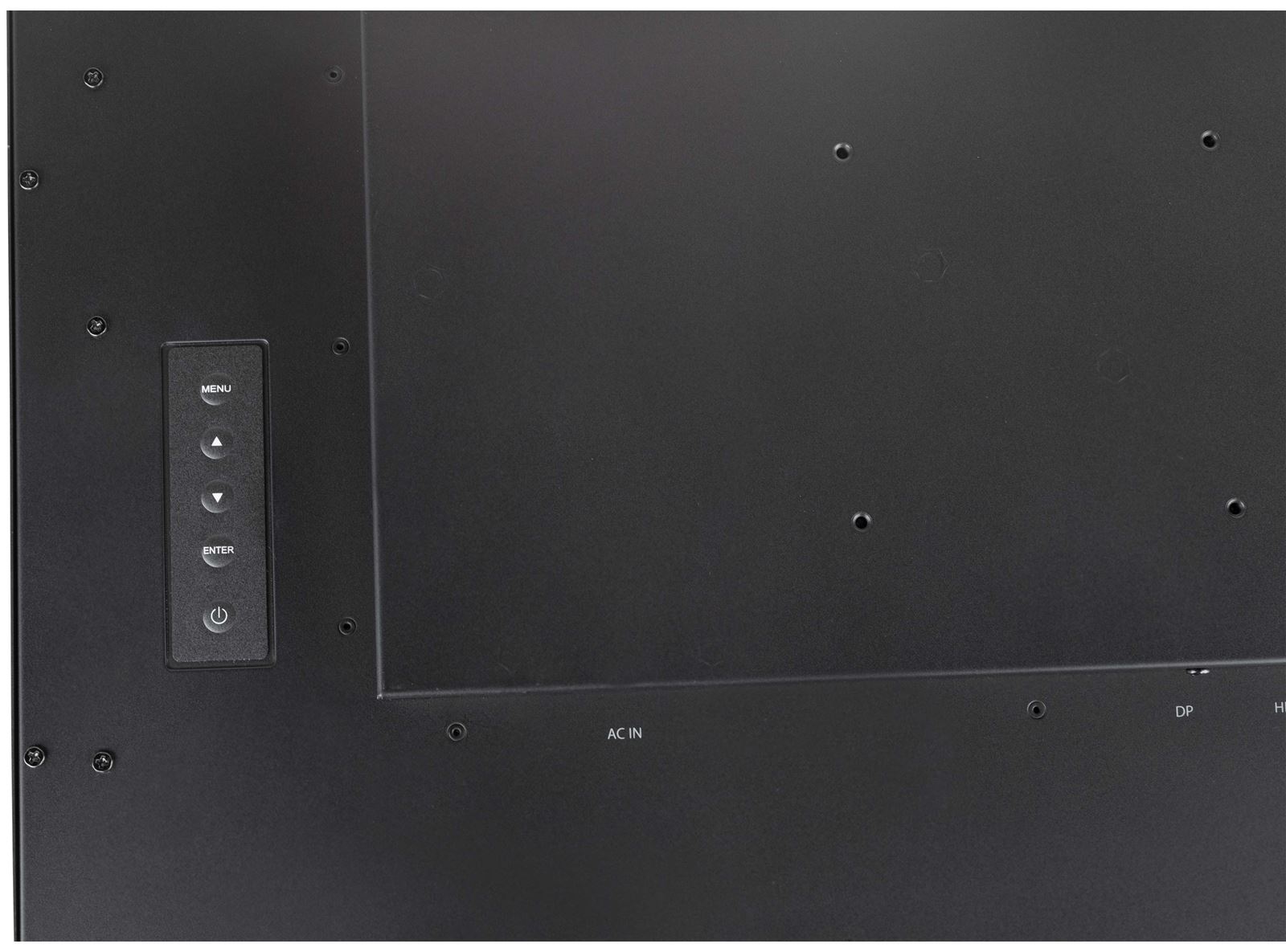

Control buttons Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
User controls Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Blue light reducer yes
Flicker free yes
Plug&Play DDC2B

 MECHANICAL

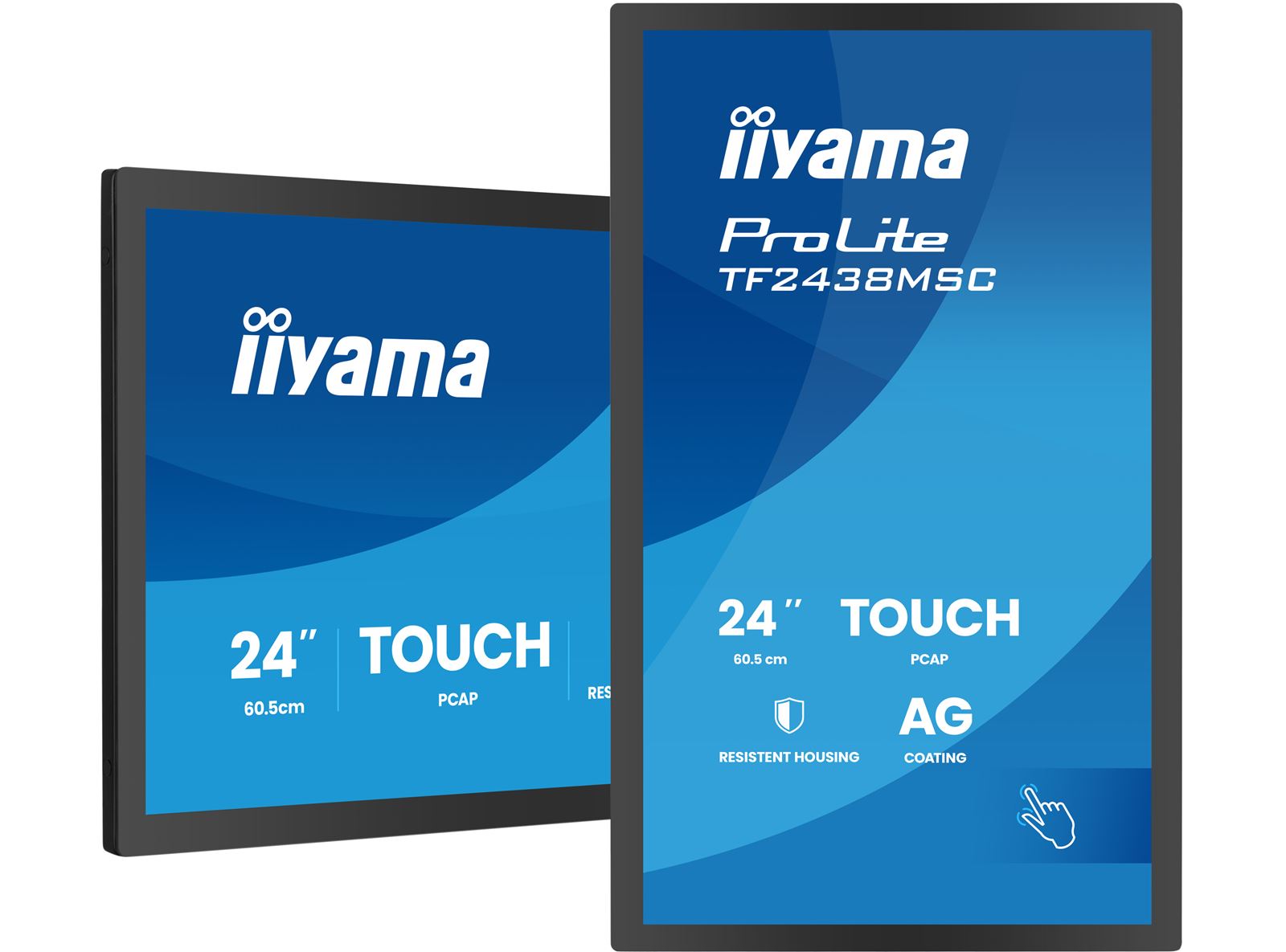

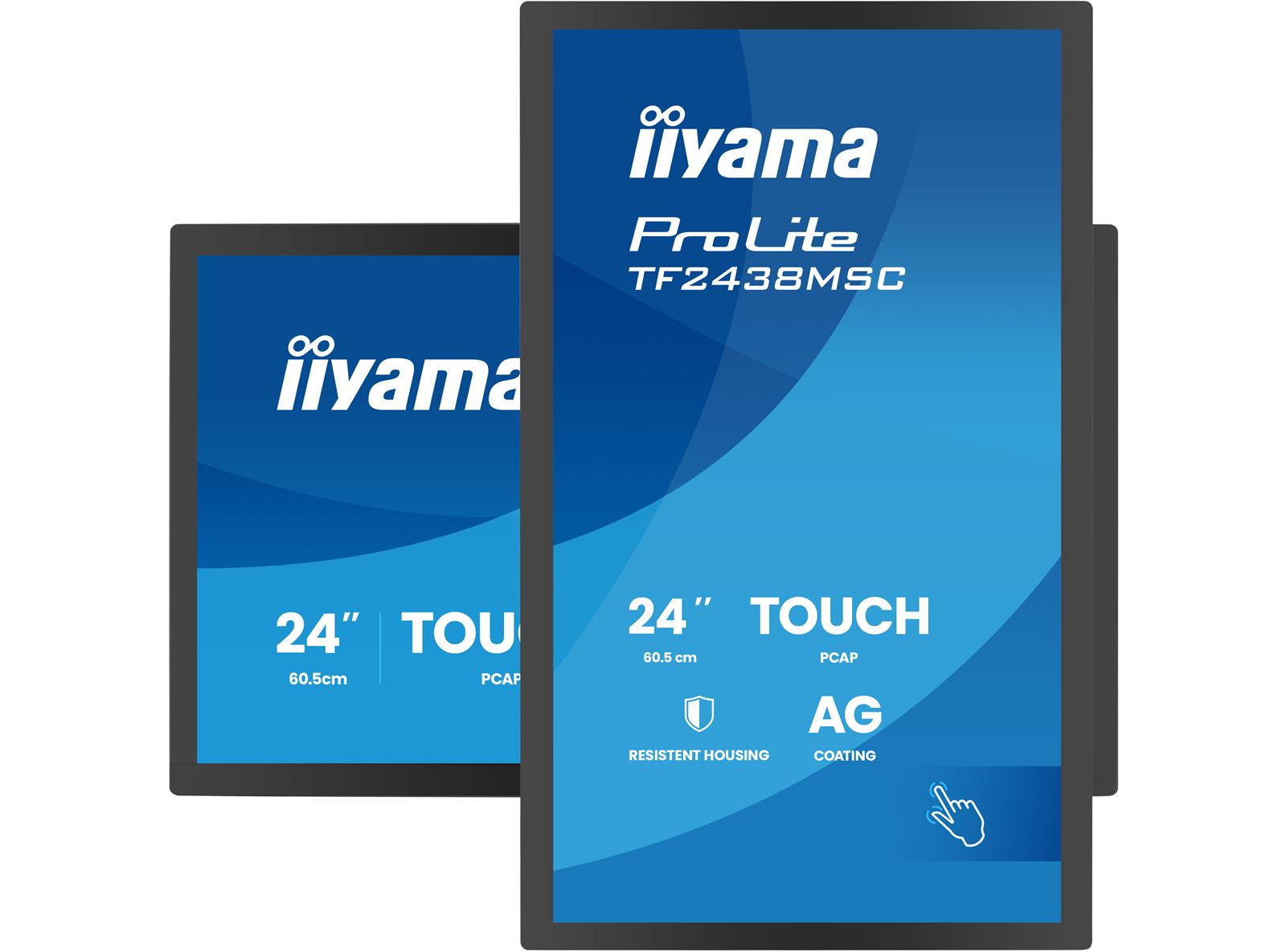

Orientation landscape, portrait, face-up
Fanless design yes

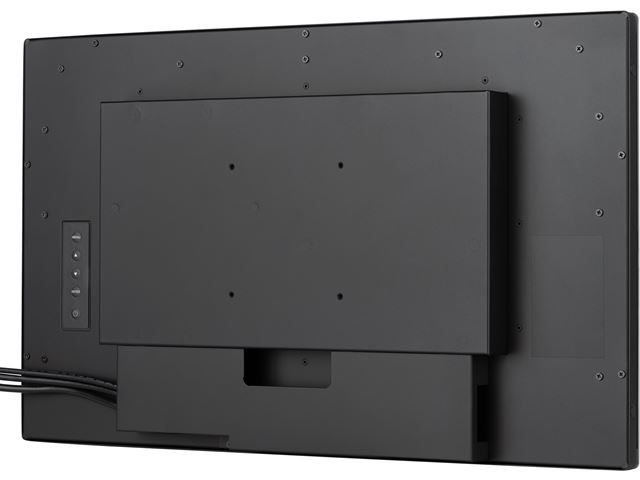

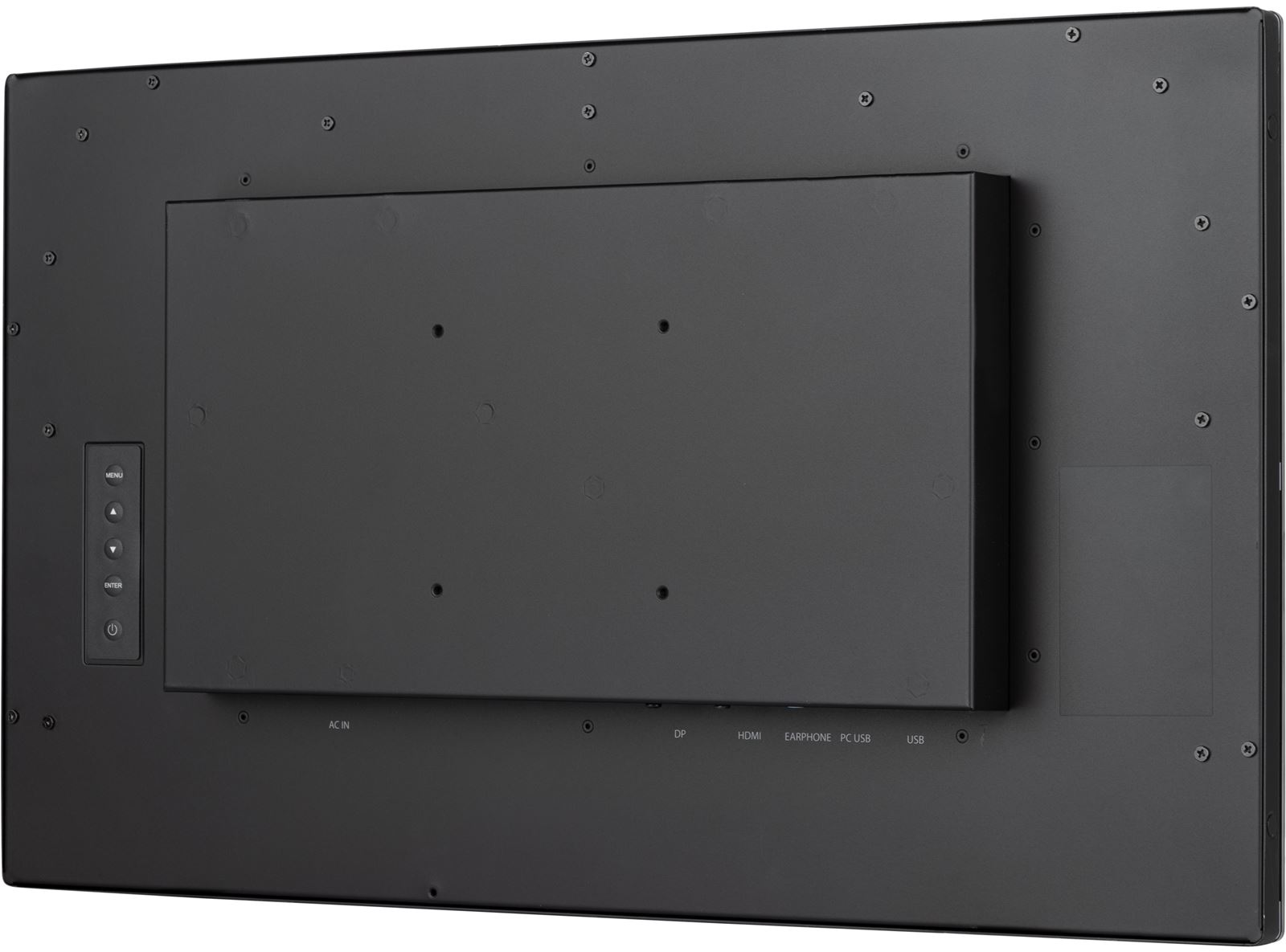

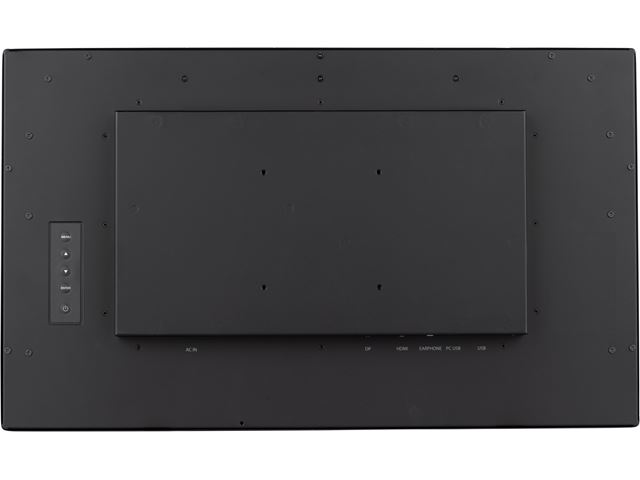

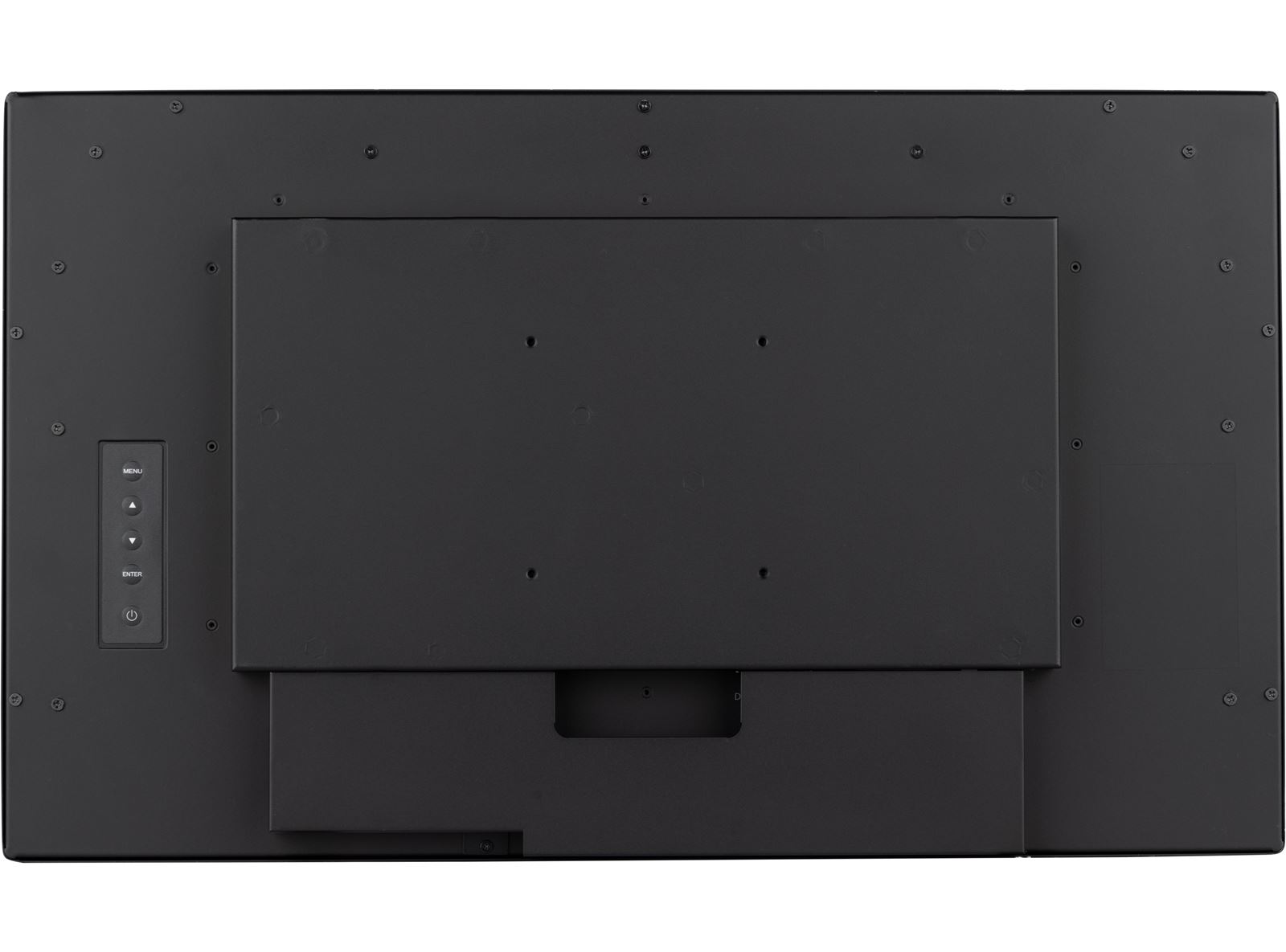

VESA mounting 100 x 100mm

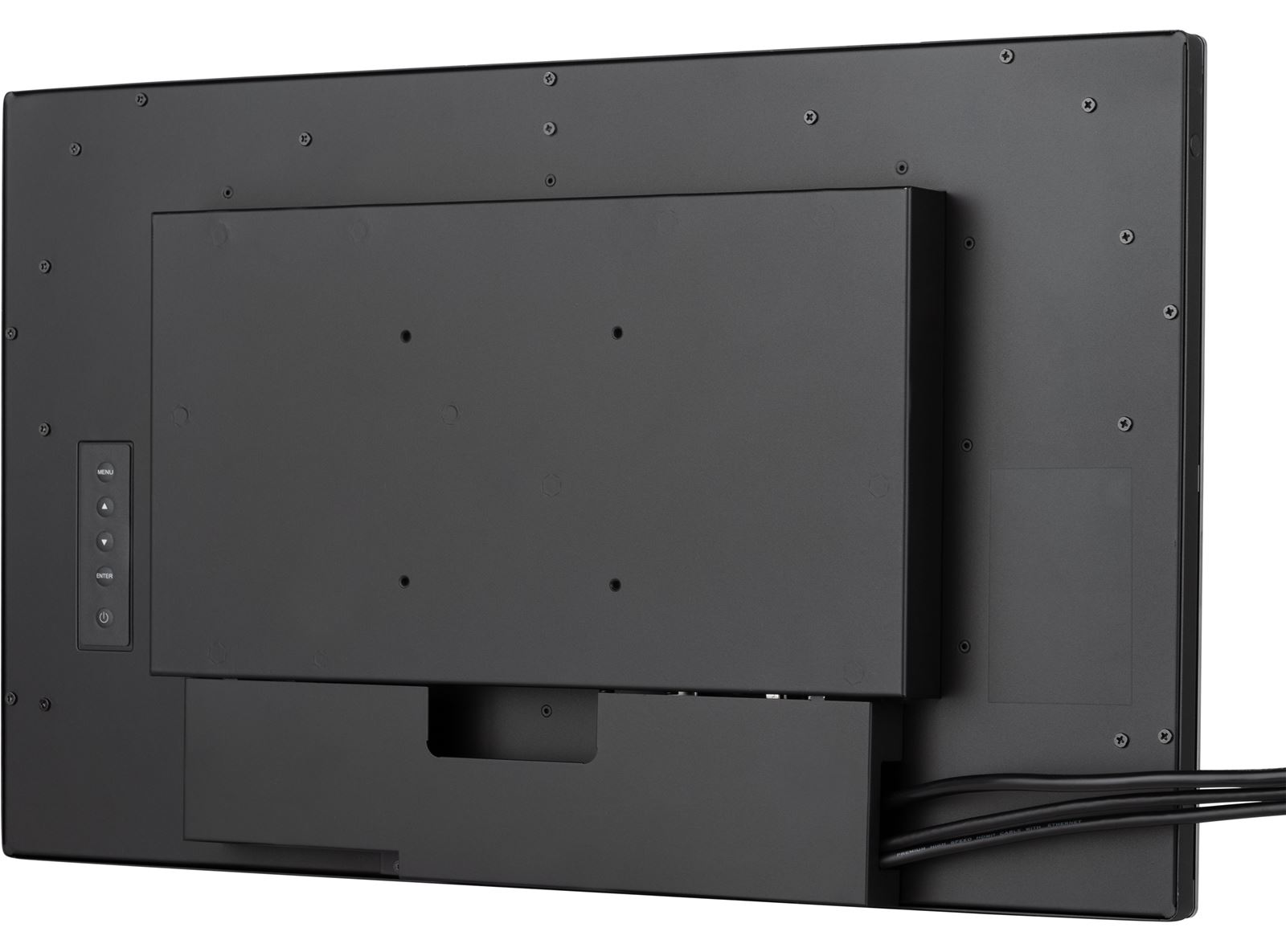

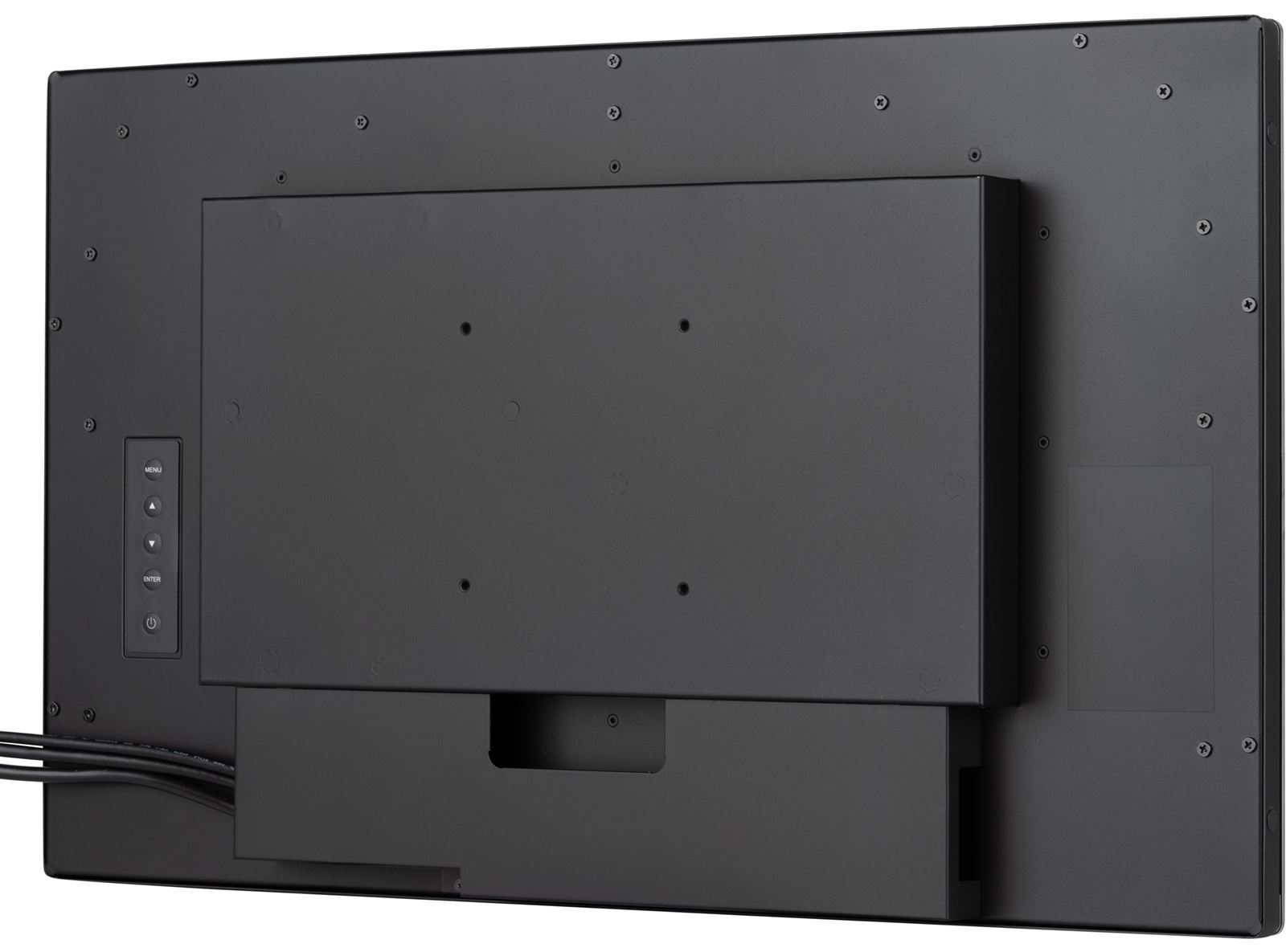

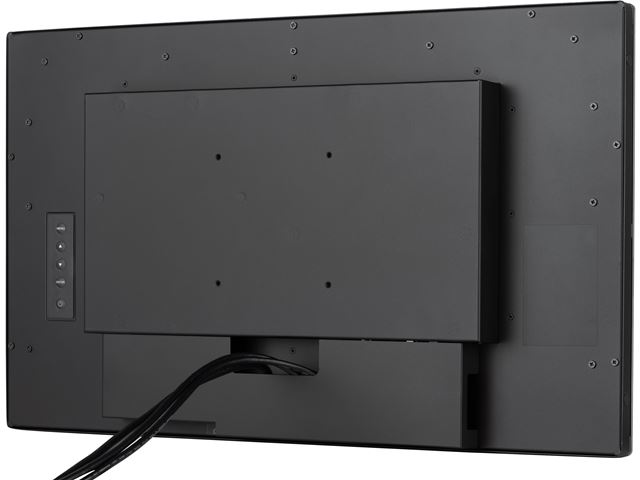

Cable management system yes
MTBF 50000 hours (excluding backlight)

 ACCESSORIES INCLUDED

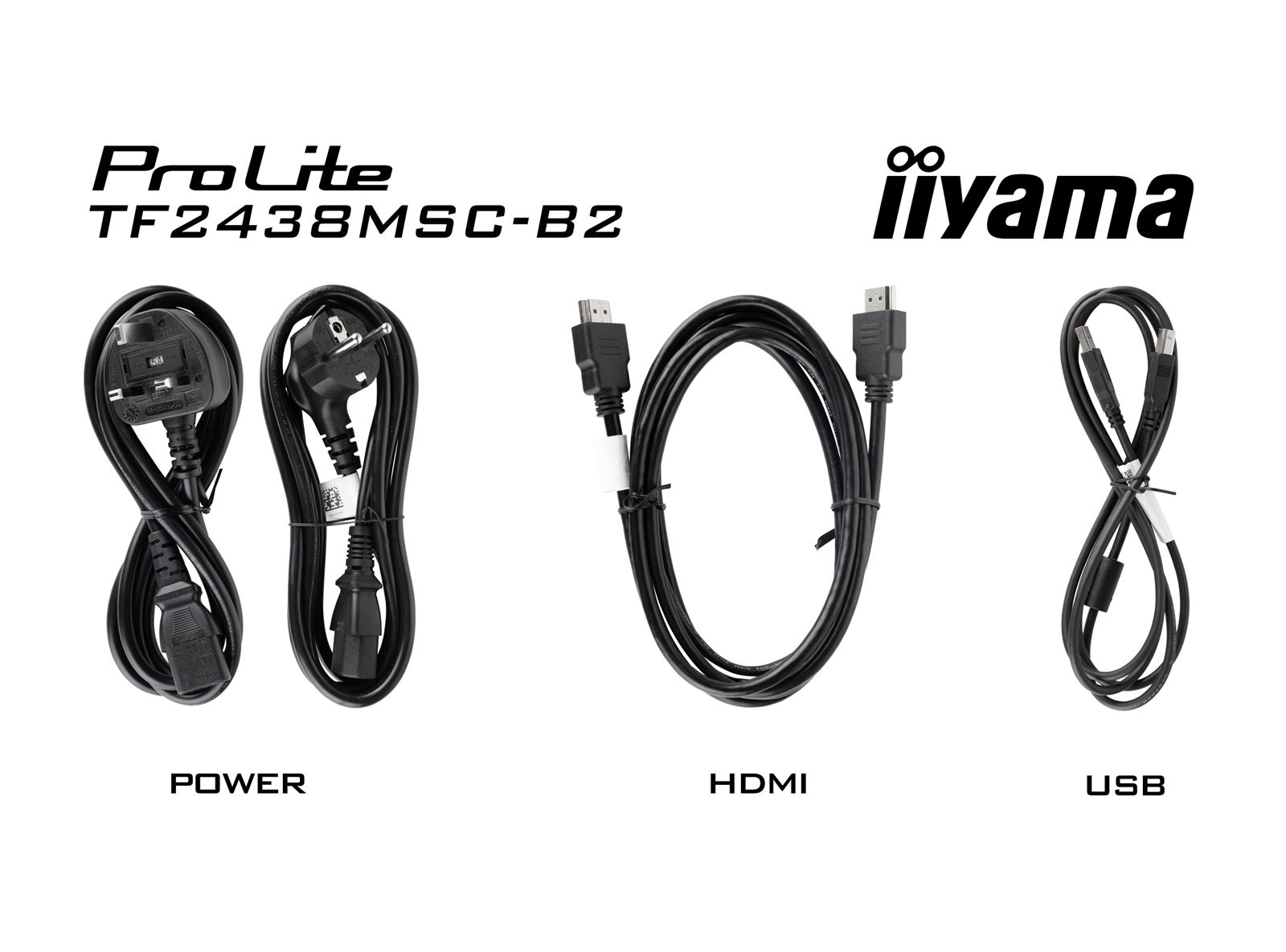

Cables power (1.8m), USB (1.5m), HDMI (1.5m)
Guides quick start guide, safety guide
Cable cover yes

 POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 22W typical, 1.5W stand by, 0.3W off mode

 SUSTAINABILITY

Regulations CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead

 DIMENSIONS / WEIGHT

Product dimensions W x H x D 562 x 337 x 47.5mm
Box dimensions W x H x D 635 x 409 x 115mm
Weight (without box) 6.5kg
Weight (with box) 8.2kg
EAN code 4948570127269
Features

VESA

VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

VESA

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

SPEAKERS

IPS

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.


IPS

PROTECTIVE GLASS

The toughened safety glass fitted behind the bezel at 8H hardness rating is capable of resisting above normal impacts to the display making this LCD the ideal choice for Education, Retail and Industrial applications.


PROTECTIVE GLASS

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SCRATCH RESISTANCE

BALL-DROP-TEST PROOF

The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.


BALL-DROP-TEST PROOF
