iiyama ProLite monitor TF1534MC-B7X 15", Projective Capacitive 10pt touch, Open frame, Scratch resistant, Anti-fingerprint coating, 4:3, HDMI, DisplayPort

£324.50 exc. VAT
£389.40 inc. VAT

Brand: iiyama

Manufacturer Code: TF1534MC-B7X

Product Description

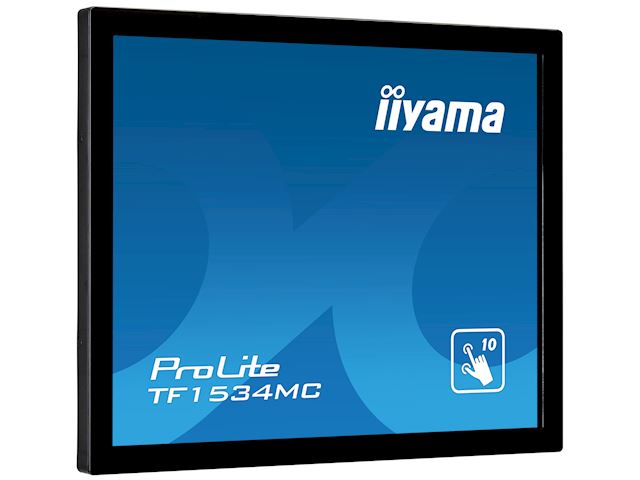

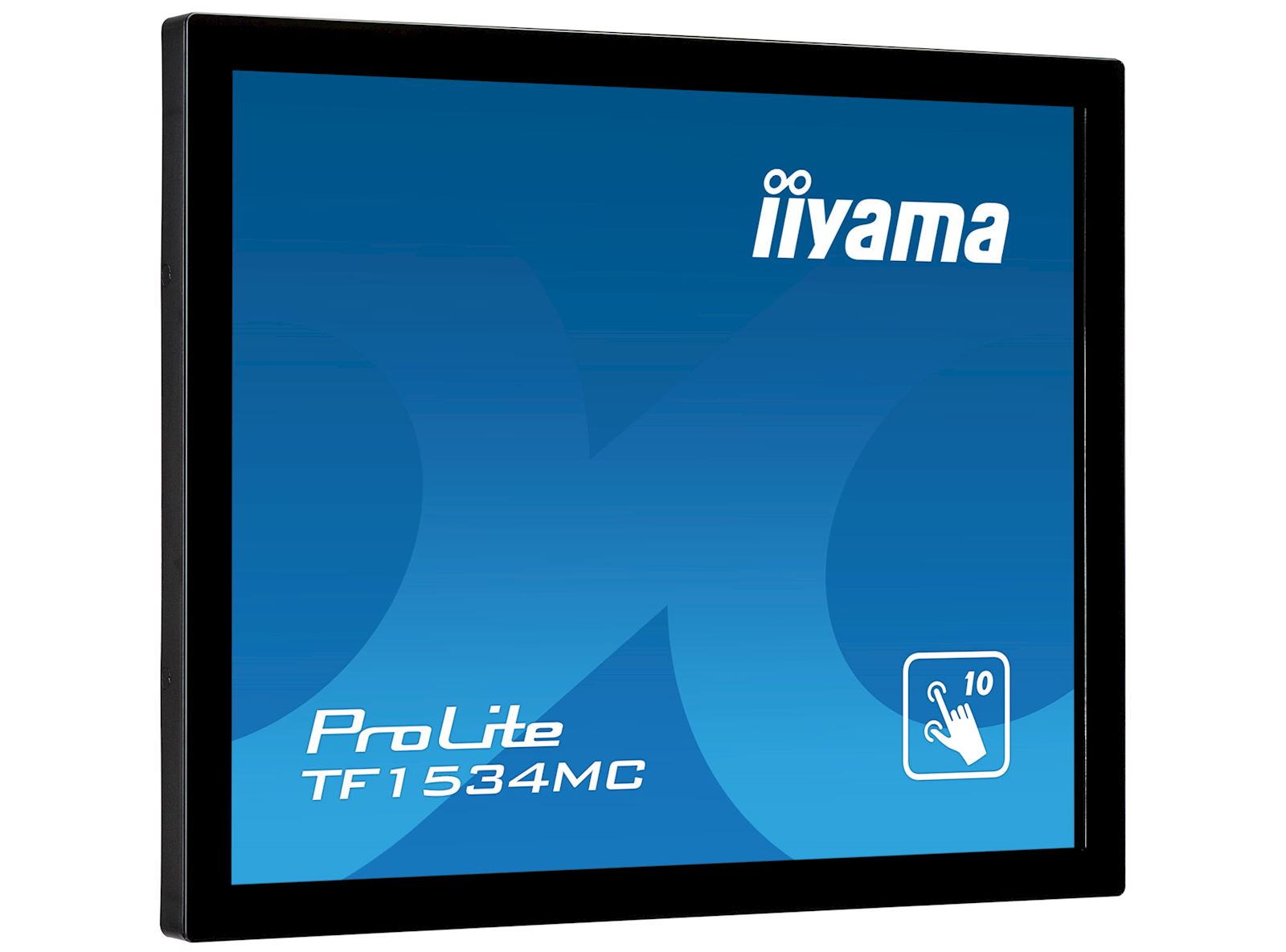

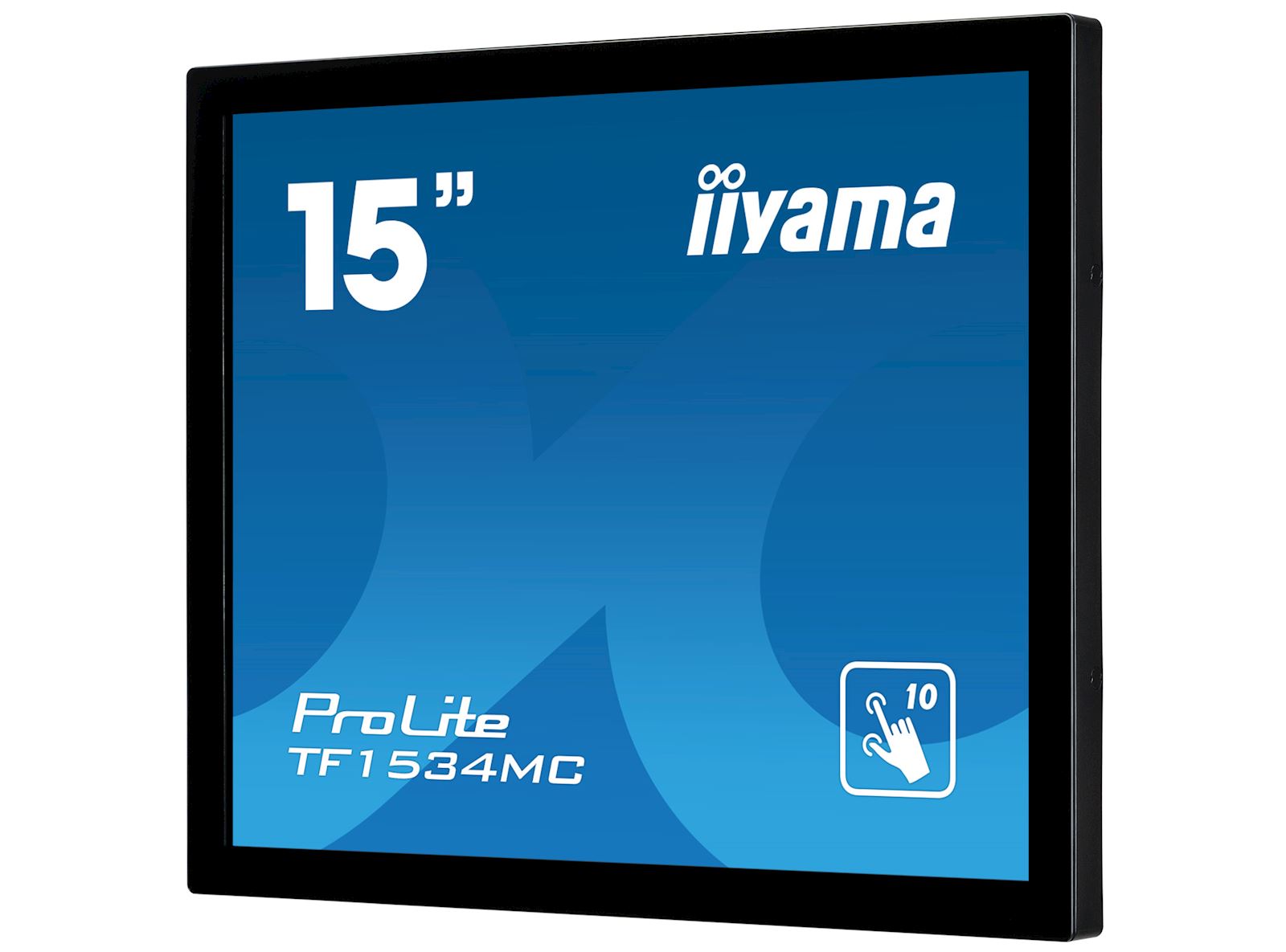

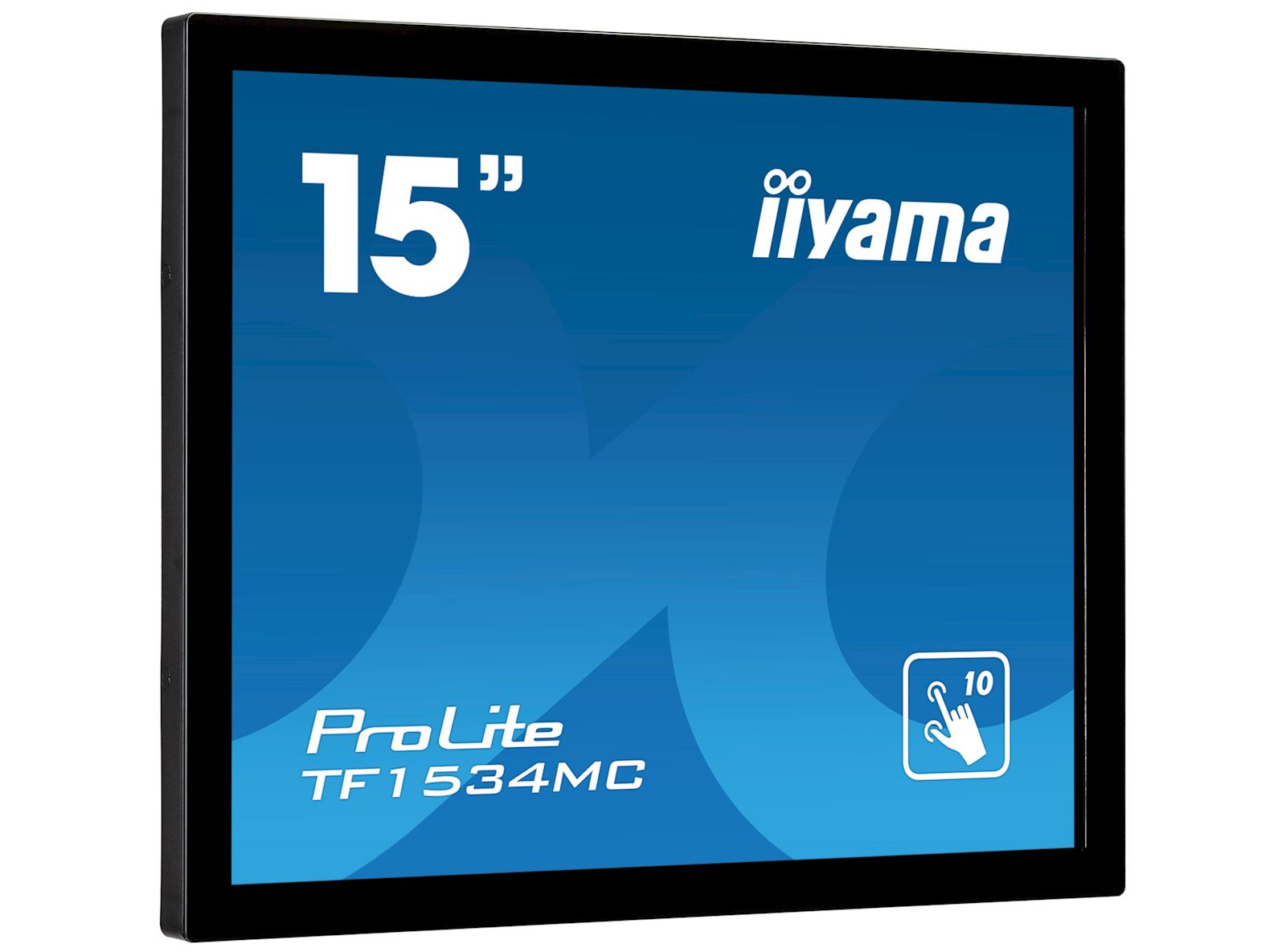

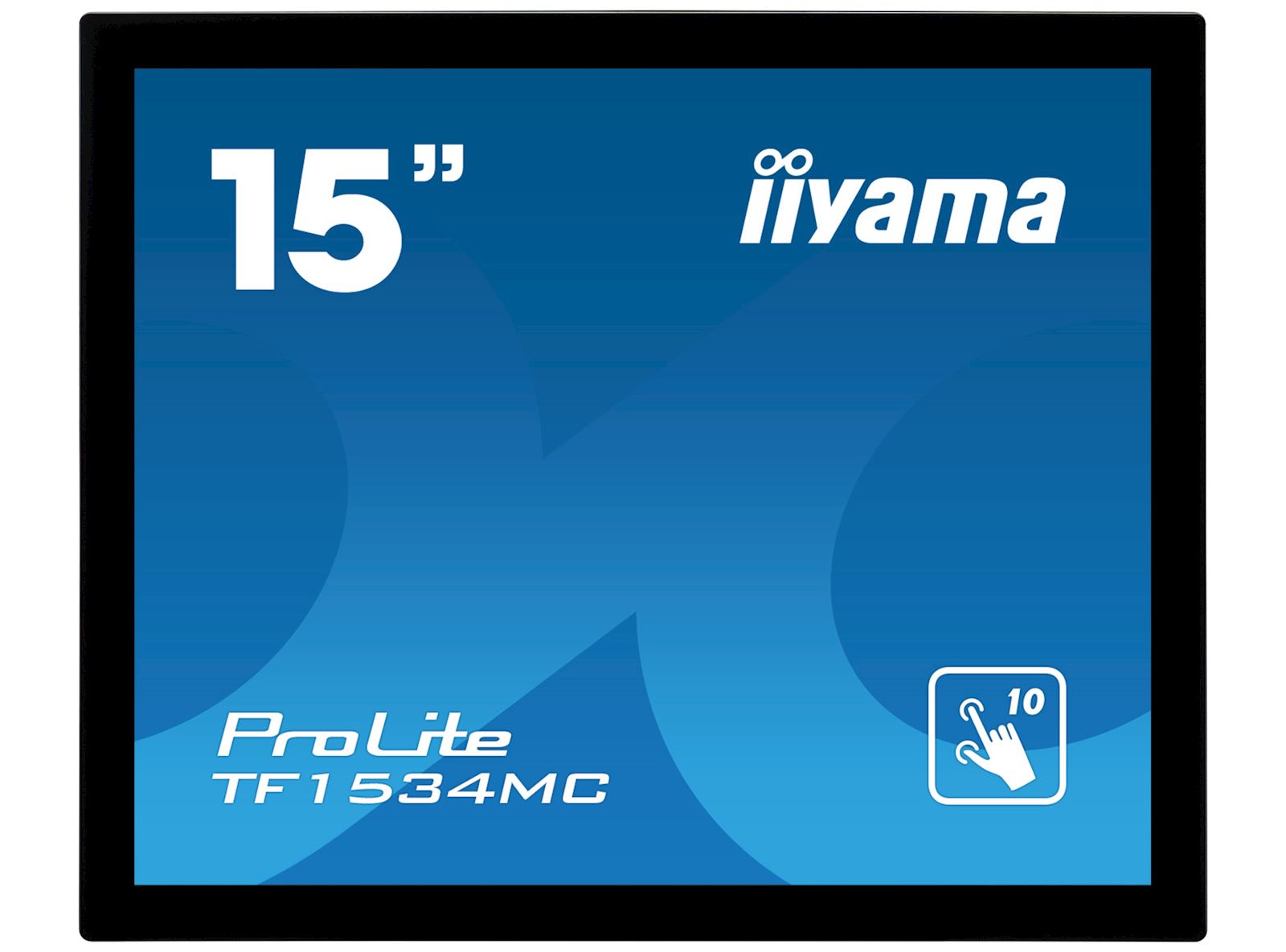

15’’ 10pt touch Open Frame monitor with Touch Through-Glass function

The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets

Technical Information

DISPLAY CHARACTERISTICS

Design Open Frame
Diagonal 15", 38cm
Panel TN LED
Native resolution 1024 x 768 (0.8 megapixel)
Aspect ratio 4:3
Brightness 370 cd/m² typical
Brightness 330 cd/m² with touch
Static contrast 700:1 with touch
Light transmittance 90%
Response time 8ms
Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support 16.2mln (6bit + Hi-FRC)
Horizontal Sync 31.4 - 60KHz
Viewable area W x H 304 x 228mm, 12 x 9"
Pixel pitch 0.297mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
HDCP yes

FEATURES

Extra

anti-fingerprint coating

Water and dust protection IP65 (front)
Glass hardness 7H
OSD key lock

yes

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (colour temp., sharpness), OSD (timeout, position, H.position, V.position), option (reset, language, source select, display mode)
Plug&Play DDC2B

MECHANICAL

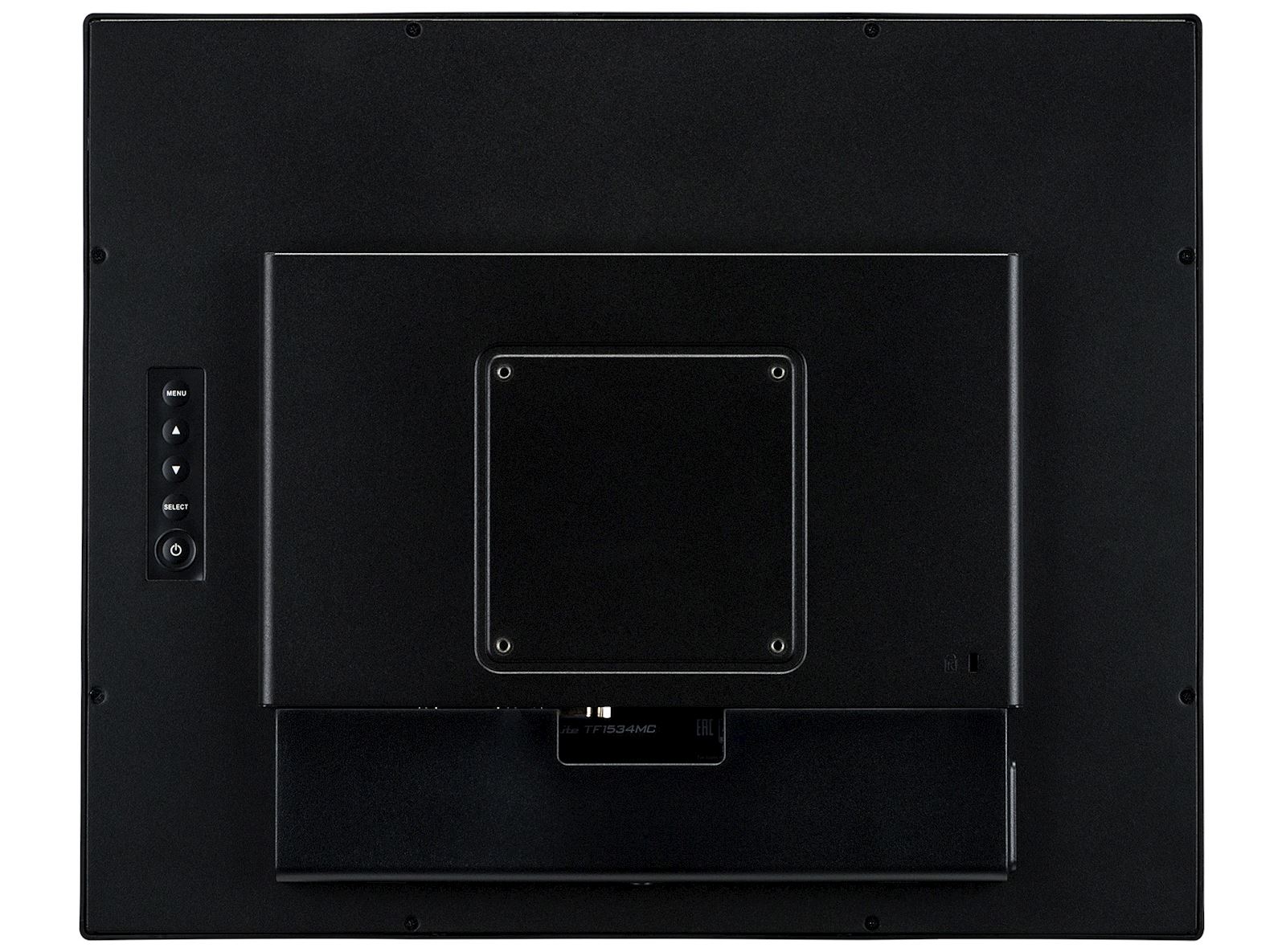

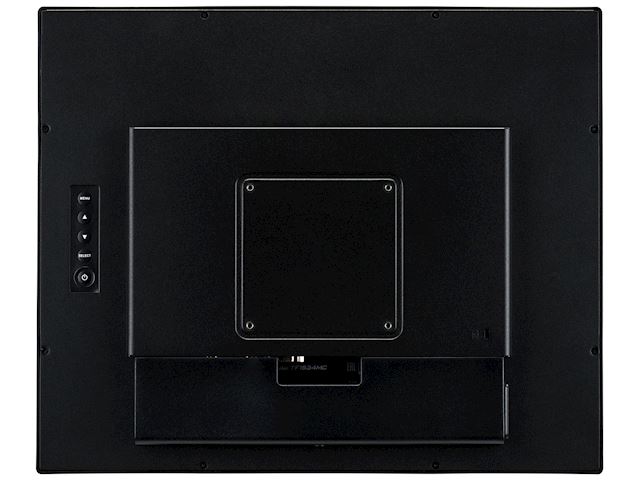

VESA mounting 100 x 100mm
Orientation landscape, portrait, face-up

ACCESSORIES INCLUDED

Cables power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)
Guides quick start guide, safety guide
Other AC adapter
Cable cover yes

POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 9W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Other REACH SVHC above 0.1%: Lead
Energy efficiency class (Regulation (EU) 2017/1369) E

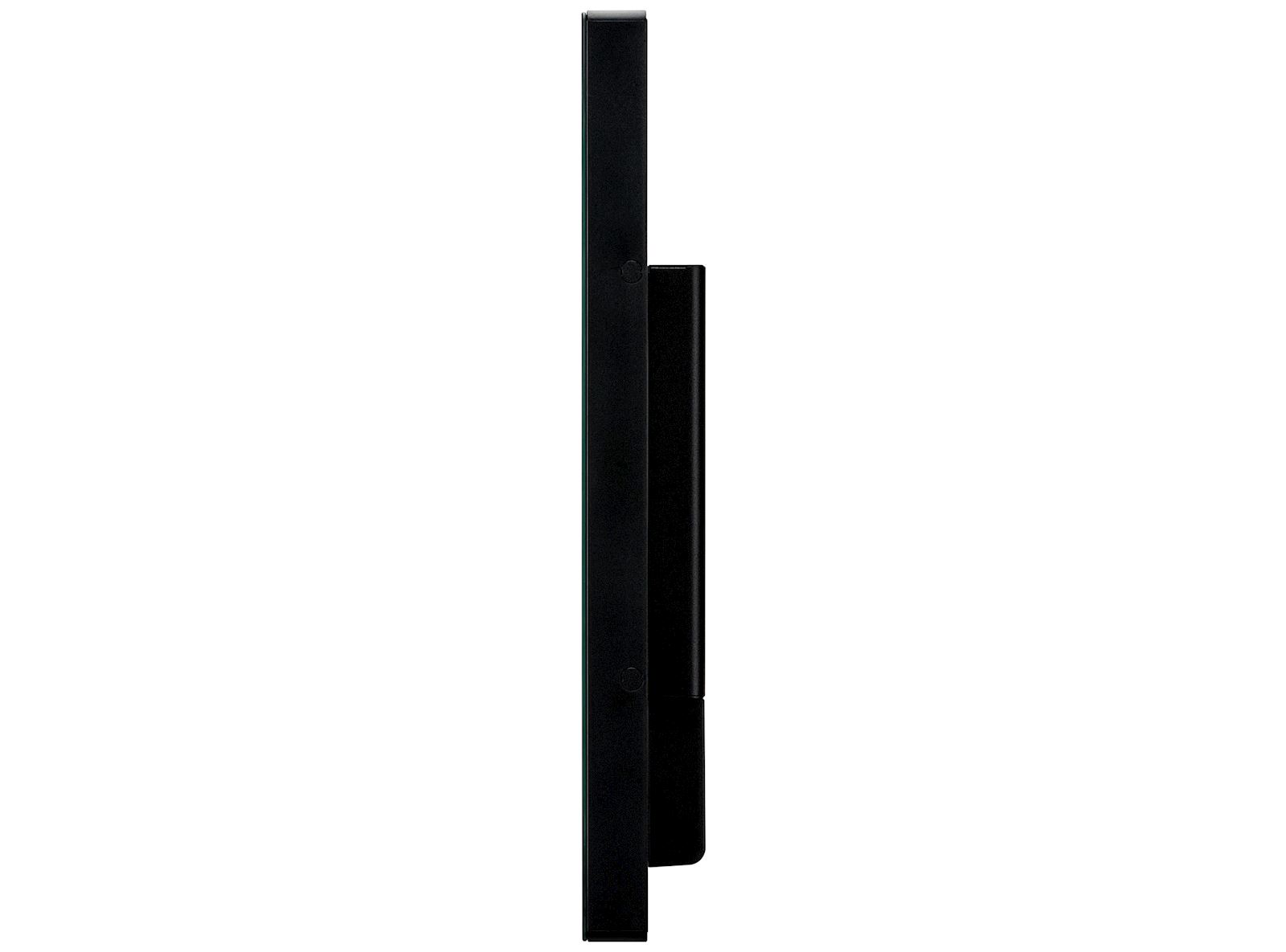

DIMENSIONS / WEIGHT

Product dimensions W x H x D 337.5 x 265.5 x 44.5mm
Weight (without box) 2.7kg
EAN code 4948570118380

EU ENERGY EFFICIENCY LABEL

Manufacturer iiyama
Features

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH TECHNOLOGY - CAPACITIVE

IP

The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.


IP

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SCRATCH RESISTANCE

OPEN FRAME BRACKETS

This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.

OPEN FRAME BRACKETS
